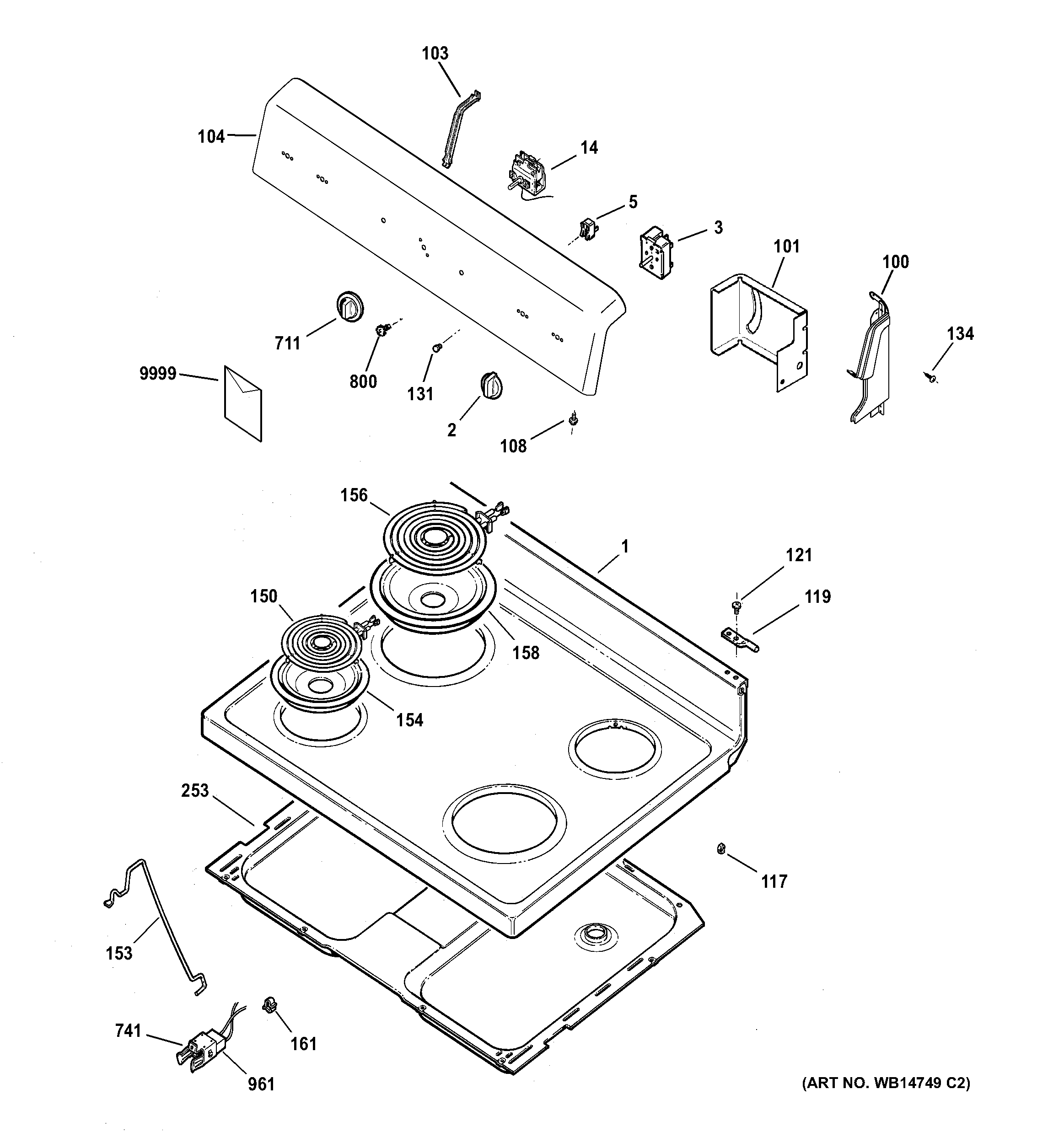

RB525DD1CC CONTROL PANEL & COOKTOP

Written by

Products

Position	Product
1	WB62K10081 GE Oven Cooktop Assembly Bisque
2	INF KNOB (GE) BSQT
3	WB24T10022 GE Oven Infinite Switch
3	WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
5	WB25K10002 GE Stove Oven Cooktop Pilot Lamp
14	WB20K10026 GE Oven Thermostat
14	WB02K10070 GE Oven Thermostat Carton Cover
100	GEN WB07K10197
100	GEN WB07K10198
101	WB37K10004 GE Cooktop Left Bracket
101	WB37K10003 GE Cooktop Right Bracket
103	WB02K10077 GE Control Bracket
104	GEN WB36K11035
117	WB02K10075 GE Oven Plastic Nail
117	GEN WB02K0017
121	WB1K5119 GE Oven Screw
131	WB25T10041 GE Oven Lens
134	WB1X5364 GE Oven Mounting Screw
150	WB30K10002 GE Stove Range Oven Cooktop Burner Surface Unit 6"
153	WB02K10026 GE Oven Rod Support
154	BOWL BURNER 6 (CH)
156	WB30K10021 GE Oven 8" Surface Unit Assembly
158	BOWL BURNER 8 (CH)
253	WB64K10009 GE Oven Cooktop Box
711	WB03K10186 GE Oven Thermostat Knob Assembly
741	WB02K10133 GE Oven Receptacle Clip
800	WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
961	WB17T10006 GE Oven Burner Receptacle Block
9999	GEN 49-88045-2
9999	GEN 31-10831
9999	WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
9999	GEN 31-10781
9999	PM MINI-MANUAL
