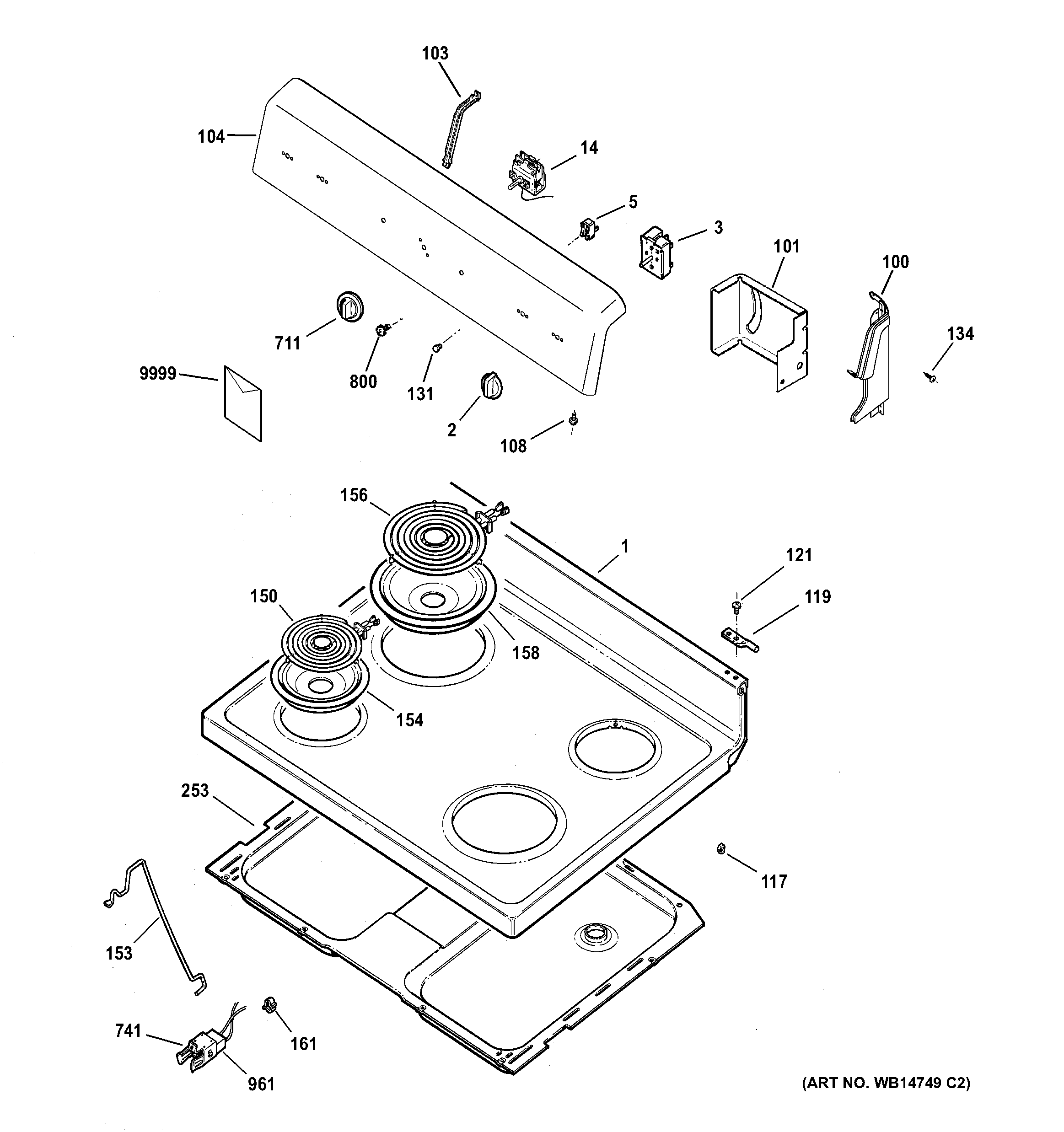

RB525DD1WW CONTROL PANEL & COOKTOP
Written by
in
RB525DD1WW CONTROL PANEL & COOKTOP
Products
Position
Product
1
WB62K10083 GE Oven White Cooktop O/S1
2
WB03T10076 GE Oven Knob
3
WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
3
WB24T10022 GE Oven Infinite Switch
5
WB25K10002 GE Stove Oven Cooktop Pilot Lamp
14
WB02K10070 GE Oven Thermostat Carton Cover
14
WB20K10026 GE Oven Thermostat
100
WB07K10196 GE Oven Left End Support (White)
100
WB07K10195 GE Oven Right White End Support
101
WB37K10004 GE Cooktop Left Bracket
101
WB37K10003 GE Cooktop Right Bracket
103
WB02K10077 GE Control Bracket
104
GEN WB36K11036
117
GEN WB02K0017
117
WB02K10075 GE Oven Plastic Nail
131
WB25T10041 GE Oven Lens
134
GEN WB01X5874
150
WB30K10002 GE Stove Range Oven Cooktop Burner Surface Unit 6"
153
WB02K10026 GE Oven Rod Support
154
BOWL BURNER 6 (CH)
156
WB30K10021 GE Oven 8" Surface Unit Assembly
158
BOWL BURNER 8 (CH)
253
WB64K10009 GE Oven Cooktop Box
711
WB03K10187 GE Oven Thermostat Knob Assembly
741
WB02K10133 GE Oven Receptacle Clip
800
WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
961
WB17T10006 GE Oven Burner Receptacle Block
9999
GEN 31-10831
9999
WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
9999
PM MINI-MANUAL
9999
GEN 31-10781
9999
GEN 49-88045-2
←
