RB525DD2CC CONTROL PANEL & COOKTOP

RB525DD2CC CONTROL PANEL & COOKTOP

Written by

in

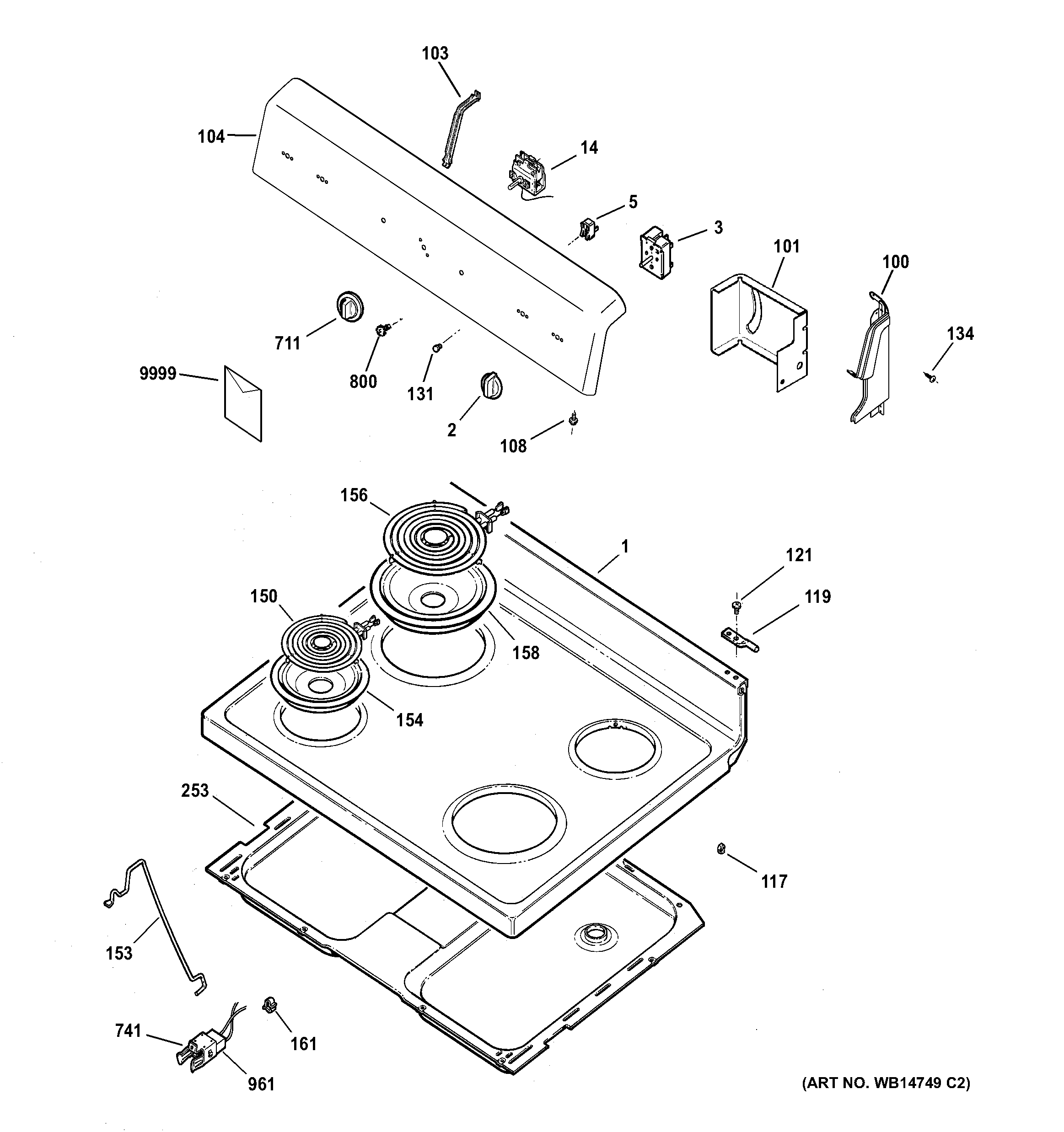

RB525DD2CC CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10081 GE Oven Cooktop Assembly Bisque
2INF KNOB (GE) BSQT
3WB24T10022 GE Oven Infinite Switch
3WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
14WB02K10070 GE Oven Thermostat Carton Cover
14WB20K10026 GE Oven Thermostat
100GEN WB07K10198
100GEN WB07K10197
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103WB02K10077 GE Control Bracket
104GEN WB36K11035
117GEN WB02K0017
117WB02K10075 GE Oven Plastic Nail
121WB1K5119 GE Oven Screw
131WB25T10041 GE Oven Lens
134WB1X5364 GE Oven Mounting Screw
150WB30K10002 GE Stove Range Oven Cooktop Burner Surface Unit 6"
153WB02K10026 GE Oven Rod Support
154BOWL BURNER 6 (CH)
156WB30K10021 GE Oven 8" Surface Unit Assembly
158BOWL BURNER 8 (CH)
253WB64K10009 GE Oven Cooktop Box
711WB03K10186 GE Oven Thermostat Knob Assembly
741WB02K10133 GE Oven Receptacle Clip
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 49-88056
9999WB49X21392 GE Oven Hinge Service Kit
9999GEN 31-10831
9999WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
9999GEN 31-10781
9999PM MINI-MANUAL
