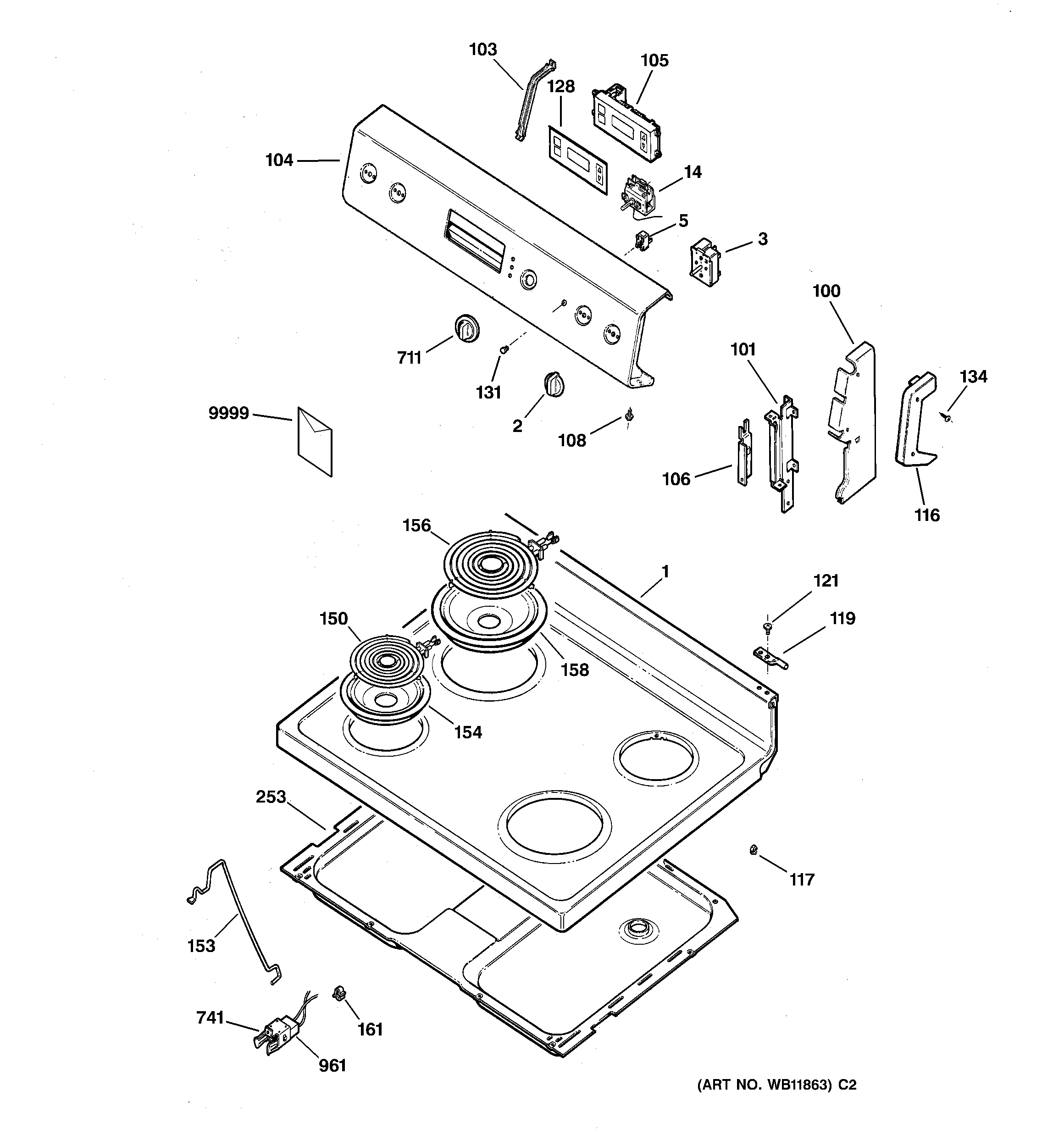

RB526C3CC CONTROL PANEL & COOKTOP

RB526C3CC CONTROL PANEL & COOKTOP

Written by

in

RB526C3CC CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10079 GE Range Top
2GEN WB03K10124
3WB24T10022 GE Oven Infinite Switch
3WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
14WB02K10070 GE Oven Thermostat Carton Cover
14WB20K10026 GE Oven Thermostat
100GEN WB07K10115
100GEN WB07K10116
101GEN WB37K0017
101GEN WB37K0018
103GEN WB02K10027
104GEN WB36K10256
105WB27T10469 GE Oven Timer Control Board
106GEN WB10K10001
106GEN WB10K10002
108WB1X5364 GE Oven Mounting Screw
116GEN WB07K10118
116GEN WB07K10117
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128GEN WB11K10021
131WB25T10041 GE Oven Lens
134GEN WB01K10017
150WB30K10002 GE Stove Range Oven Cooktop Burner Surface Unit 6"
153WB02K10026 GE Oven Rod Support
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156WB30K10003 GE Range Stove Cooktop Burner Surface Unit 8"
158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
161CLIP WIRE
253GEN WB64K10002
711GEN WB03K10125
741RECEPTACLE W/CLIP
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 49-88006
9999GEN 31-21069
