RB526DP1CC DOOR & DRAWER PARTS

RB526DP1CC DOOR & DRAWER PARTS

Written by

in

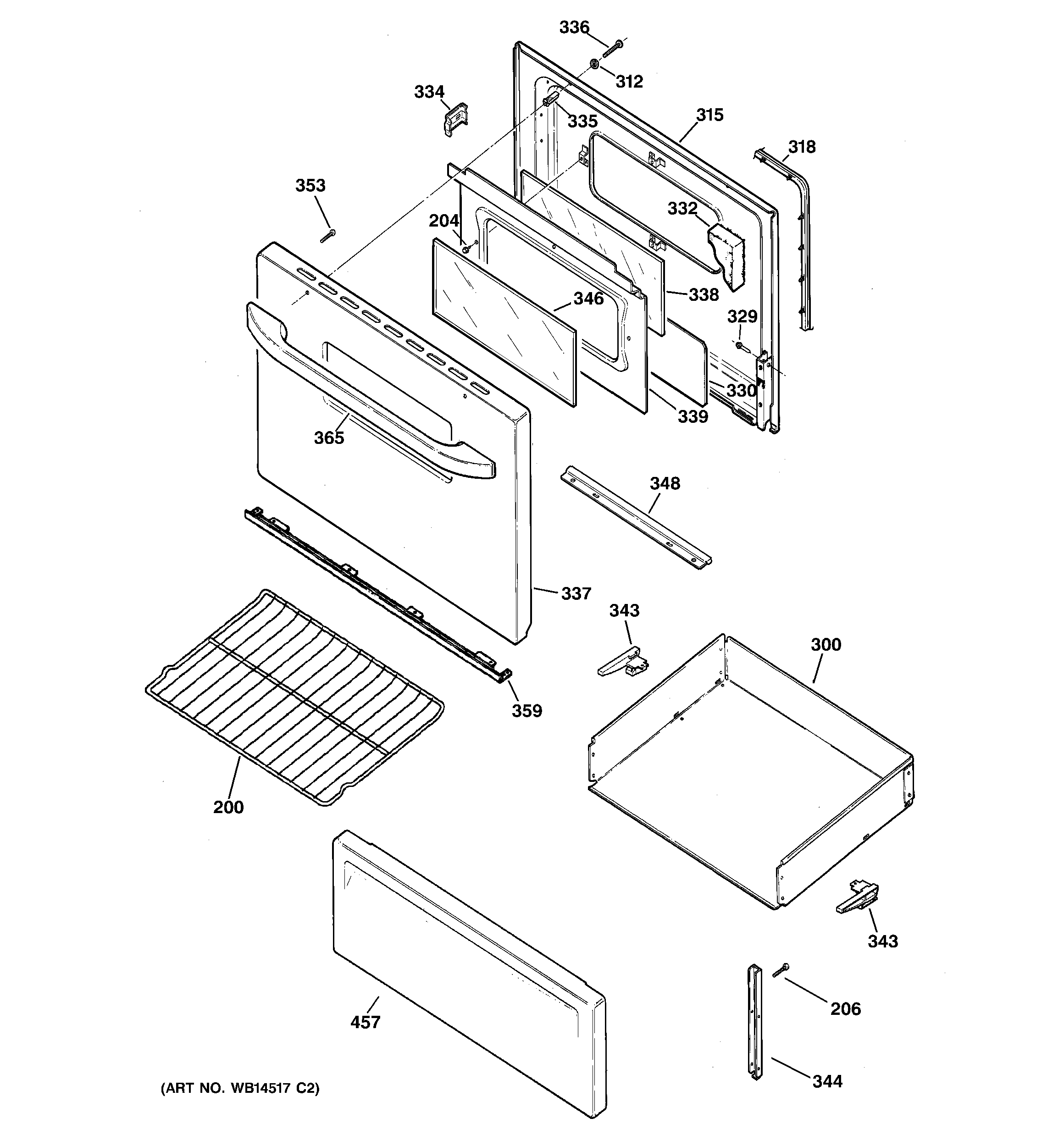

RB526DP1CC DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
204WB1X536 GE Oven Screw
206WB01K10091 GE Oven Screw
300GEN WB58K10007
312WB1X119D GE Oven Range Washer
315GEN WB55K10043
318WB35X29720 GE Oven Door Gasket
329WB1X558D GE Oven Screw Package
330GEN WB55K0001
332WB35K10114 GE Oven Door Insulation
334GEN WB02K10160
335WB02K10156 GE Oven Spacer
336WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
337WB56K10050 GE Oven Door Panel
337WB56K10046 GE Oven Door Panel
337WB56K10047 GE Oven Door Panel
338GEN WB56K0019
339WB56K10032 GE Oven Guard Insulation Assembly
343WB02K10061 GE Oven Drawer Glide
343WB02K10062 GE Oven Drawer Glide
344GEN WB02K10025
346WB56K25 GE Oven Wind Crystal
346WB56K5 GE Oven Crystal Wind
348GEN WB02K0050
353WB1K67 GE Oven Screw 8-22
359GEN WB07K10339
365HANDLE DOOR (BSQT)
365WB15X10048 GE Oven Door Handle White
365WB15X10047 GE Range Oven Black Door Handle
457WB56X31458 GE Black Drawer Panel
457WB56X31459 GE Oven Drawer Front
457WB56X31457 GE Drawer Panel Bisque
