RB526DP2CC BODY PARTS

RB526DP2CC BODY PARTS

Written by

in

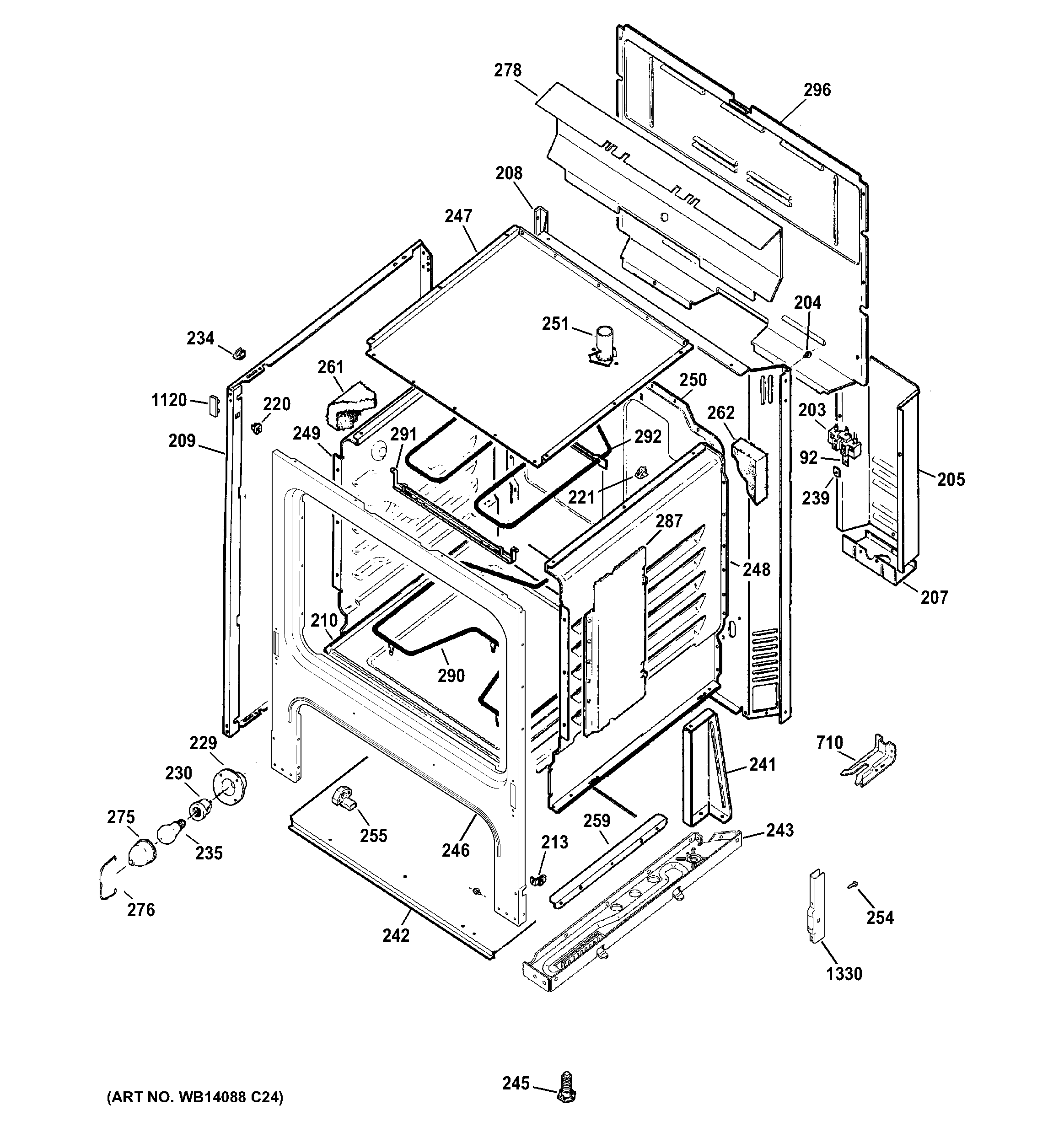

RB526DP2CC BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
203WB17T10011 GE Oven Terminal Block
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
205WB34K10029 GE Oven Guard Terminal
207WB02K10029 GE Oven Mounting Terminal Bracket
208GEN WB63K10005
209GEN WB63K10142
210WB63K10006 GE Oven Bottom Assembly
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
239PLATE GROUND
241SUPPORT CONTROL
242GEN WB63K10009
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
246WB63X21430 GE Assembly Frame Weld
247WB63K10021 GE Oven Top
248WB63K10244 GE Oven Right Side Rack
249WB63K10245 GE Oven Left Side Ran
250WB63K10007 GE Oven Back
251GEN WB04K10002
251WB38K10002 GE Oven Vent Tube
254GEN WB01K0053
255WB02K10158 GE Oven Drawer Support
259WB39K16 GE Oven Drawer Rail
261WB35K10108 GE Oven Insulation Wrap
262WB35K10107 GE Back Oven Insulation
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
278WB34K10083 GE Divider Wiring
287WB34K30 GE Radiation Guard
287GEN WB34K0031
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
296WB34K10066 GE Oven Back Cover
710WB02K10384 GE Oven Anti-Tip Bracket Assembly
1120WB02K10180 GE Oven Bumper
1330WB10X20220 GE Oven Receiver Hinge
