RB526DP2CC CONTROL PANEL & COOKTOP

RB526DP2CC CONTROL PANEL & COOKTOP

Written by

in

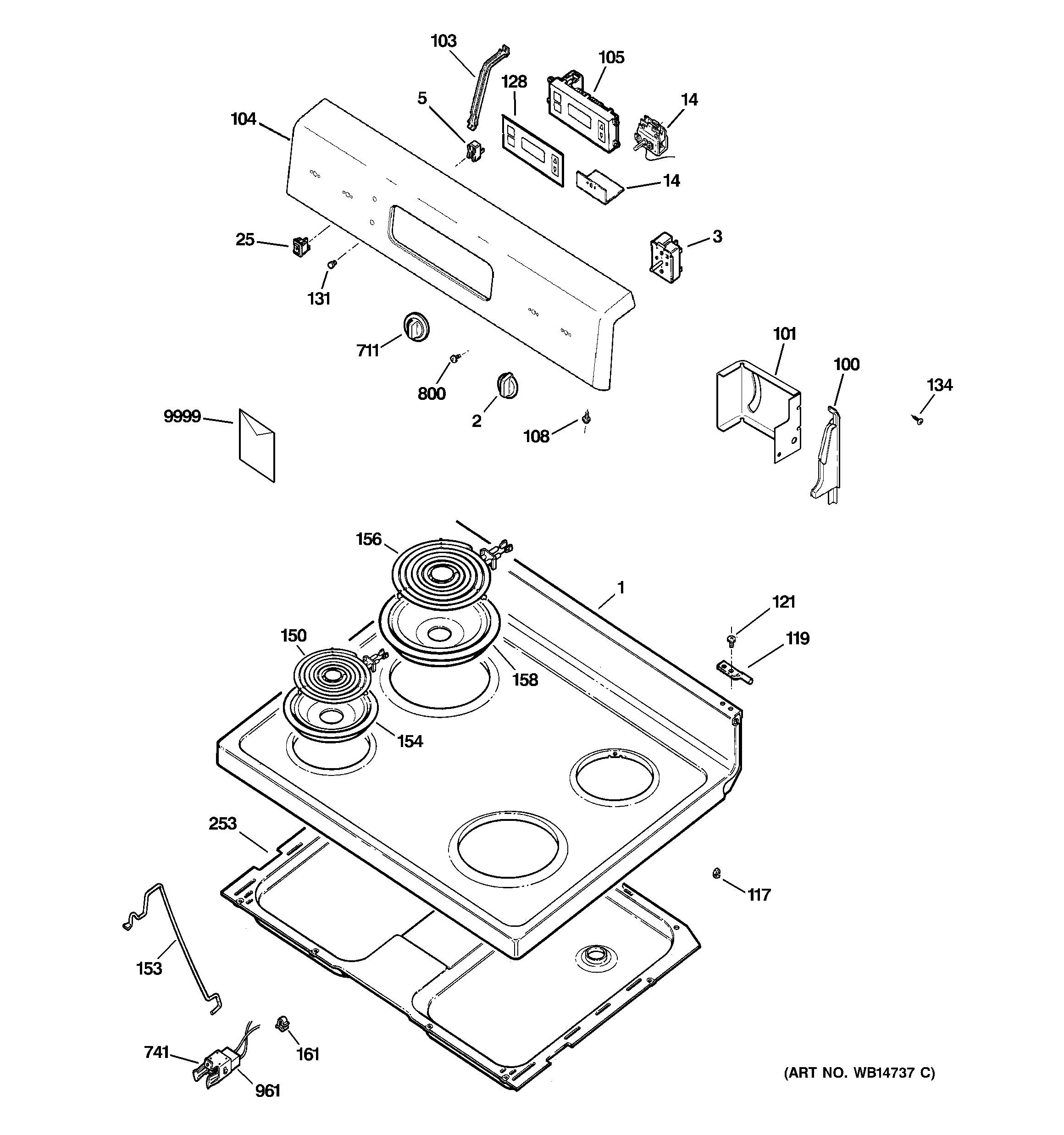

RB526DP2CC CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10079 GE Range Top
2INF KNOB (GE) BSQT
3WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
3WB24T10022 GE Oven Infinite Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
14WB02K10070 GE Oven Thermostat Carton Cover
14WB20K10026 GE Oven Thermostat
25WB24K10005 GE Oven Switch Rocker
100GEN WB07K10197
100GEN WB07K10198
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103WB02K10077 GE Control Bracket
104GEN WB36K10842
105WB27T10469 GE Oven Timer Control Board
117WB02K10075 GE Oven Plastic Nail
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128GEN WB27K10249
131WB25T10041 GE Oven Lens
134WB1X5364 GE Oven Mounting Screw
150WB30K10002 GE Stove Range Oven Cooktop Burner Surface Unit 6"
153WB02K10026 GE Oven Rod Support
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156WB30K10021 GE Oven 8" Surface Unit Assembly
158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
161CLIP WIRE
253WB64K10009 GE Oven Cooktop Box
711WB03K10186 GE Oven Thermostat Knob Assembly
741WB02K10133 GE Oven Receptacle Clip
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
800WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 31-10831
9999GEN 31-10781
9999GEN 49-88056
9999WB49X21392 GE Oven Hinge Service Kit
9999GEN 31-21268
