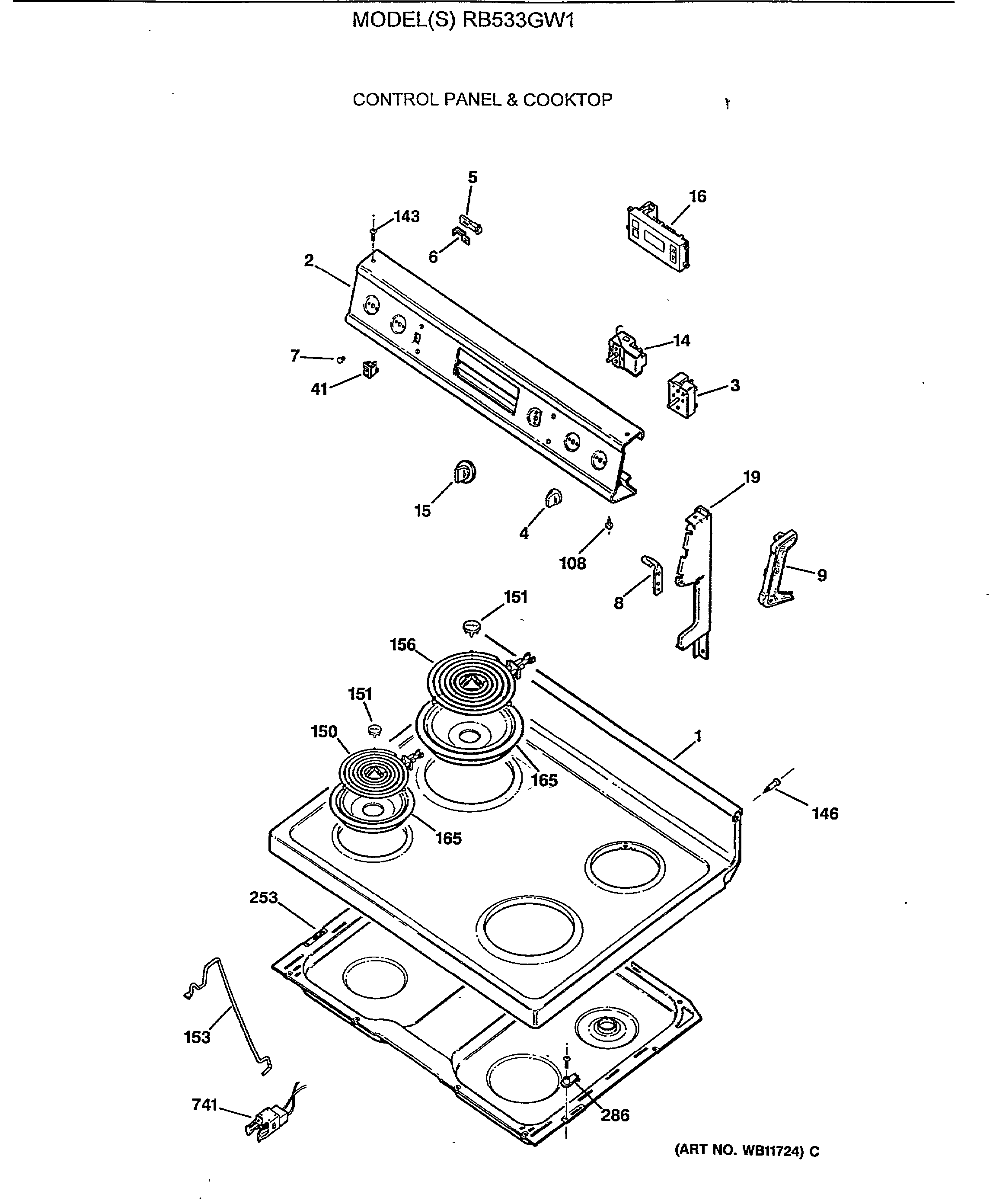

RB533GW1 CONTROL PANEL & COOKTOP

RB533GW1 CONTROL PANEL & COOKTOP

Written by

in

RB533GW1 CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB62X5406
1RANGE TOP ASM – WHITE
2TRIM BRACKET ASM
3WB21X36771 GE Surface Element Switch
4SELECTOR KNOB
5NEON LAMP 118V
6CLIP MTG LAMP
7WB25X65 GE Oven Light Indicator
8GEN WB02X8127
8GEN WB02X8126
9GEN WB07X7137
9GEN WB07X7136
14WB20X5071 GE Oven Thermostat
15GEN WB03X5793
16GEN WB27X5598
19GEN WB07X7270
19GEN WB07X7273
19GEN WB07X7271
19GEN WB07X7272
41WB24T10042 GE Oven Rocker Switch
108WB1X5904 GE Oven Screw 8-18 BA
143GEN WB01X5860
146GEN WB01X5832
150WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
151GEN WB31X5021
153GEN WB02X8114
156WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
165BOWL BURNER 6 (CH)
165BOWL BURNER 8 (CH)
253GEN WB49X5566
286GEN WB02X8107
396GEN WB01X5873
741RECEPTACLE W/CLIP
875WH2X930 GE Screw
1458GEN WB01X5967
1458GEN WB01X5968
32767GEN 31-0824
32767GEN 31-20213
32767WB02T10415 GE Oven Anti-Tip Bracket Assembly
32767GEN 39-4756
32767WB17X171 GE Oven Terminal
