RB740BH5WH CONTROL PANEL & COOKTOP

RB740BH5WH CONTROL PANEL & COOKTOP

Written by

in

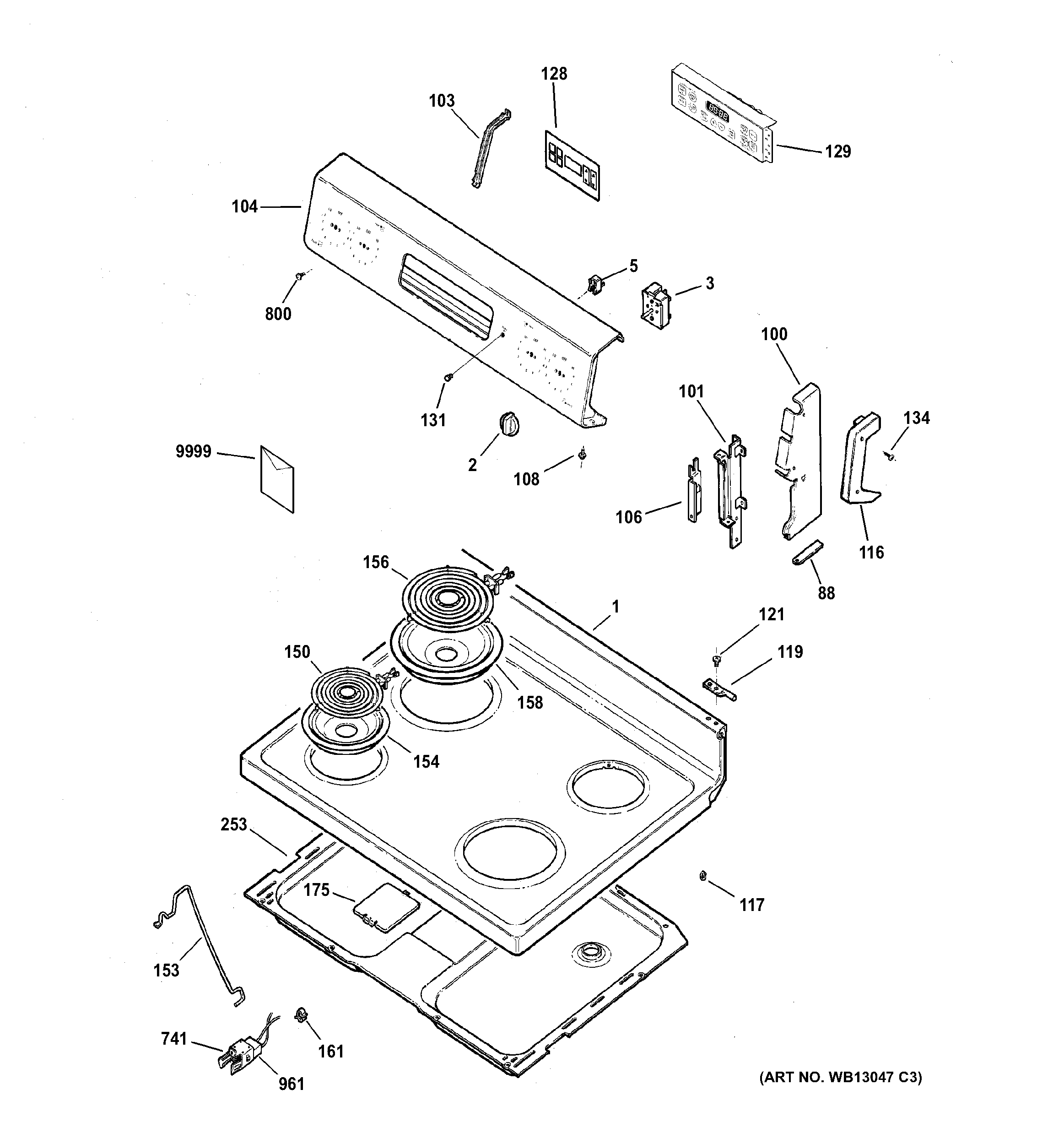

RB740BH5WH CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10080 GE Range White Top
1WB62K10079 GE Range Top
2WB03T10072 GE Oven Burner Knob
3WB24T10025 SWITCH INFIN(2500W)
3WB24T10029 GE Oven Infinite Burner Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
88GEN WB02K0062
100GEN WB07K10022
100GEN WB07K10023
101GEN WB37K0018
101GEN WB37K0017
103GEN WB02K10027
104GEN WB36K10387
106GEN WB10K10001
106GEN WB10K10002
108WB1X5364 GE Oven Mounting Screw
108GEN WB01X5716
116WB07K10003 GE Oven Right Black Endcap
116GEN WB07K10004
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
128WB27K10118 GE Oven Overlay
129CONTROL OVEN TO9 (ELEC)
131WB25T10041 GE Oven Lens
134GEN WB01K10003
150WB30X24401 GE Oven Surface Element Coil
153WB02K10026 GE Oven Rod Support
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156WB30T10074 GE Oven 8" Burner Unit 2600W
158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
161CLIP WIRE
175LATCH COVER
253WB64K10011 GE Oven Cooktop Box
741WB02K10133 GE Oven Receptacle Clip
800WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 49-88037
9999GEN 31-10831
9999GEN 31-10781
9999GEN 31-21107
