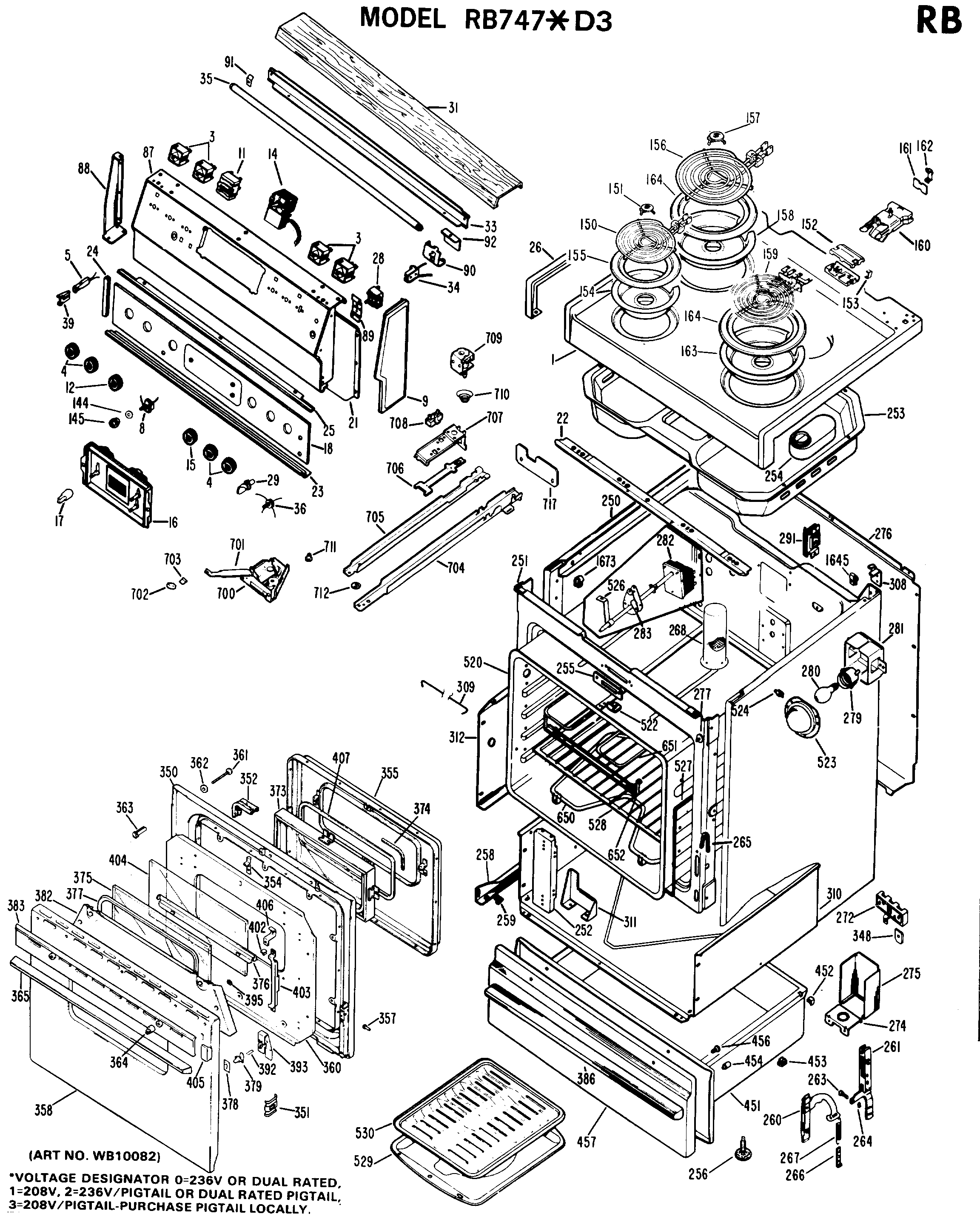

RB747*D3

RB747*D3

Written by

in

RB747*D3

Products

Position	Product
1	GEN WB62X5245
1	GEN WB62X5244
1	GEN WB62X5241
3	WB21X36771 GE Surface Element Switch
4	GEN WB03X5482
5	GEN WB02X3468
5	NEON LAMP 118V
8	GEN WB24X5081
9	GEN WB07X5493
9	GEN WB07X5492
11	GEN WB22X5090
12	GEN WB03X0422
14	GEN WB24X0176
14	GEN WB02X6274
15	GEN WB03X5544
16	WB19X10006 GE Oven Clock
17	GEN WB3X459
18	GEN WB02X3232
18	GEN WB36X5481
18	GEN WB02X5594
18	GEN WB02X6240
21	GEN WB49X5146
22	GEN WB07X6775
23	GEN WB07X5500
24	GEN WB07X5502
25	GEN WB07X5501
26	GEN WB07X5481
26	GEN WB07X5480
28	GEN WB24X5011
29	GEN WB03X5486
31	GEN WB07X6720
33	GEN WB02X6228
34	GEN WB08X0188
36	GEN WB24X5048
39	SURFACE LIGHT BRACKET
87	GEN WB61X6031
87	GEN WB61X5941
87	GEN WB61X5945
87	GEN WB61X5944
87	GEN WB61X6030
88	GEN WB02X6225
88	GEN WB02X6226
88	GEN WB02X6224
89	GEN WB02X5593
90	GEN WB02X6230
90	GEN WB02X6231
91	GEN WB02X6227
92	GEN WB02X6229
144	GEN WB01X0588
145	NUT-KNURLED TRIM
150	WB30X218 GE Range Cooktop Burner Unit 6 Inch
151	GEN WB32X0052
152	GEN WB02X2018
153	CLIP INSULATOR
154	GEN WB32X5051
155	WB31X5013 GE Oven 6" Chrome Trim Ring
156	WB30X219 GE Range Cooktop Burner Unit 8 Inch
157	GEN WB32X0051
158	WB32X5060 GE Oven 8" Gray Pan 8 7/16" DIA
159	GEN WB30X0346
160	SCREW RECEPT TERMINAL
160	RR122 Supco Receptacle WB17X5051
161	GEN WB02X6171
162	CLIP INSULATOR
163	GEN WB32X5053
164	GEN WB31X5012
248	WB1X500D GE Oven Screw Package
250	GEN WB02X3229
251	GEN WB56X5861
252	GEN WB02X6768
253	GEN WB49X5149
254	BODY VENT
255	GEN WB07X0552
256	GEN WB01X5516
258	GUIDE DRAWER RH
258	GUIDE DRAWER LH
259	SLIDE GUIDE
260	HINGE LEVER ASM RH & LH
261	GEN WB10X5090
261	GEN WB10X5091
263	GEN WB02X6195
264	RING RETAINING
265	GEN WB02X6342
266	HOOK DOOR SPRING
267	SPRING DOOR
268	GEN WB29X5012
272	WB17X5095 GE Black Oven Terminal
274	BRACKET KNOCKOUT
275	GEN WB02X6655
276	GEN WB49X5161
277	SWITCH, OVEN LIGHT
279	GEN WB08X0191
280	RANGE ONLY 40W 120V APPL BULB
281	GEN WB02X3466
282	CLAMP HARNESS
282	GEN WB24X5138
283	GEN WB02X3164
283	GEN WB02X3163
291	BALLAST
303	WB36X192 GE Oven Light Cover
308	GEN WB02X6184
308	SPACER PANEL
