RB747G*J6

RB747G*J6

Written by

in

RB747G*J6

Products

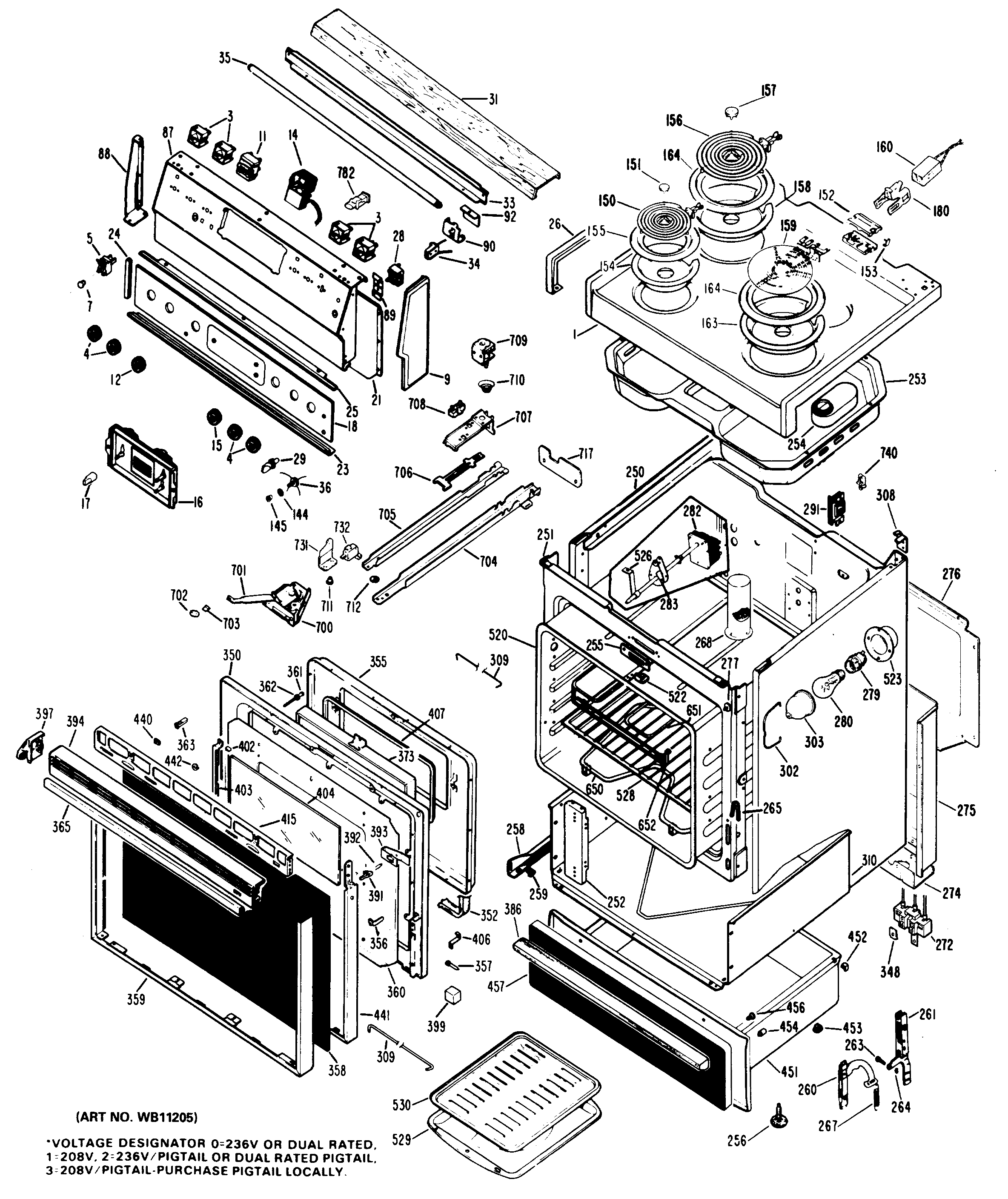

Position	Product
1	GEN WB62X5244
1	GEN WB62X5241
1	GEN WB62X5245
3	WB21X36771 GE Surface Element Switch
4	GEN WB03X5482
5	GEN WB02X7697
5	GEN WB02X7698
7	GEN WB25X5053
9	GEN WB07X5493
9	GEN WB07X5492
11	GEN WB22X5100
12	GEN WB03X0422
14	GEN WB02X6274
14	GEN WB24X0176
15	GEN WB03X5544
16	WB19X10006 GE Oven Clock
17	GEN WB03X0459
18	GEN WB36X5615
18	GEN WB02X5594
18	GEN WB02X3232
21	GEN WB49X5146
23	GEN WB07X5500
24	GEN WB07X5502
25	GEN WB07X5501
26	GEN WB07X5480
26	GEN WB07X5481
28	GEN WB24X5011
29	GEN WB03X5486
31	GEN WB07X6720
33	GEN WB02X6228
34	GEN WB08X0188
35	LAMP 60W
36	GEN WB24X5249
87	GEN WB61X6044
87	GEN WB61X6045
87	GEN WB61X6046
88	GEN WB02X6226
88	GEN WB02X6225
88	GEN WB02X6224
89	GEN WB02X5593
90	GEN WB02X6230
90	GEN WB02X6231
92	GEN WB02X6229
144	GEN WB01X0588
145	NUT-KNURLED TRIM
150	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
151	GEN WB32X0052
152	GEN WB02X2018
153	CLIP INSULATOR
154	GEN WB32X5051
155	WB31X5013 GE Oven 6" Chrome Trim Ring
156	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
157	GEN WB32X0051
158	WB32X5060 GE Oven 8" Gray Pan 8 7/16" DIA
159	GEN WB30X0346
163	GEN WB32X5053
164	GEN WB31X5012
180	WB17X5113 GE Oven Cooktop Burner Receptacle Kit
250	OVEN ASSEMBLY
251	GEN WB56X6054
252	GEN WB02X7864
253	GEN WB49X5465
254	BODY VENT
255	GEN WB07X0552
256	GEN WB01X5533
258	GUIDE DRAWER LH
258	GUIDE DRAWER RH
259	SLIDE GUIDE
260	HINGE LEVER ASM RH & LH
261	GEN WB10X5091
261	GEN WB10X5090
263	GEN WB02X6195
264	RING RETAINING
265	GEN WB02X6342
267	SPRING DOOR
268	GEN WB29X5019
272	WB17X5095 GE Black Oven Terminal
274	KNOCKOUT PLATE
275	GEN WB02X7774
276	GEN WB49X5398
277	SWITCH, OVEN LIGHT
279	WB08T10026 GE Range Push-In Receptacle
280	RANGE ONLY 40W 120V APPL BULB
282	GEN WB24X5138
283	GEN WB02X3163
283	GEN WB02X3164
291	GEN WB02X7839
302	GEN WB02X7694
303	WB36X192 GE Oven Light Cover
308	GEN WB02X6184
308	GEN WB02X6185
309	GEN WB02X6767
310	GEN WB49X5156
348	PLATE GROUND
350	GEN WB55X5322
350	INSULATION DOOR
352	WB2X6547 GE Oven Door Gasket
355	GEN WB55X5331
356	GEN WB02X6574
357	WB1X558D GE Oven Screw Package
358	GEN WB36X5560
359	GEN WB07
