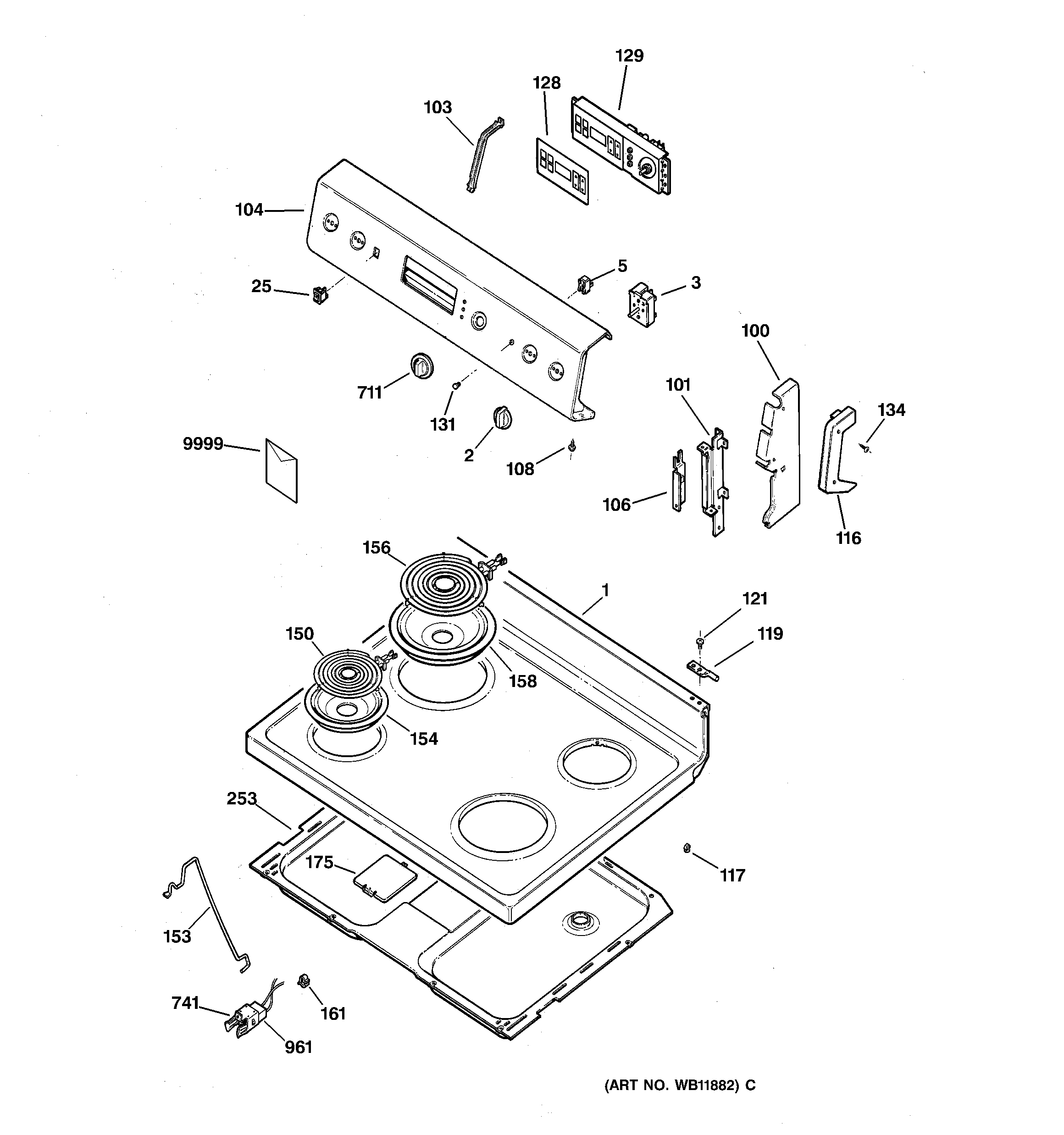

RB753BC1AD CONTROL PANEL & COOKTOP

RB753BC1AD CONTROL PANEL & COOKTOP

Written by

in

RB753BC1AD CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB62K10042
2GEN WB03K10084
3WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
3WB24T10022 GE Oven Infinite Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
25GEN WB24K10011
100GEN WB07K10022
100GEN WB07K10023
101GEN WB37K0018
101GEN WB37K0017
103GEN WB02K10027
104GEN WB36K10180
106GEN WB10K10002
106GEN WB10K10001
108WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
108GEN WB01X5716
108WB1X5364 GE Oven Mounting Screw
116GEN WB07K10004
116WB07K10003 GE Oven Right Black Endcap
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128OVERLAY (BLK)
129WB27K10026 GE Oven Thermostat Control
131WB25T10041 GE Oven Lens
134GEN WB01K10003
150WB30K10002 GE Stove Range Oven Cooktop Burner Surface Unit 6"
153WB02K10026 GE Oven Rod Support
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156WB30K10003 GE Range Stove Cooktop Burner Surface Unit 8"
158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
161CLIP WIRE
175LATCH COVER
253GEN WB64K10003
711GEN WB03K10085
741RECEPTACLE W/CLIP
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 49-8971
9999GEN 31-20767
