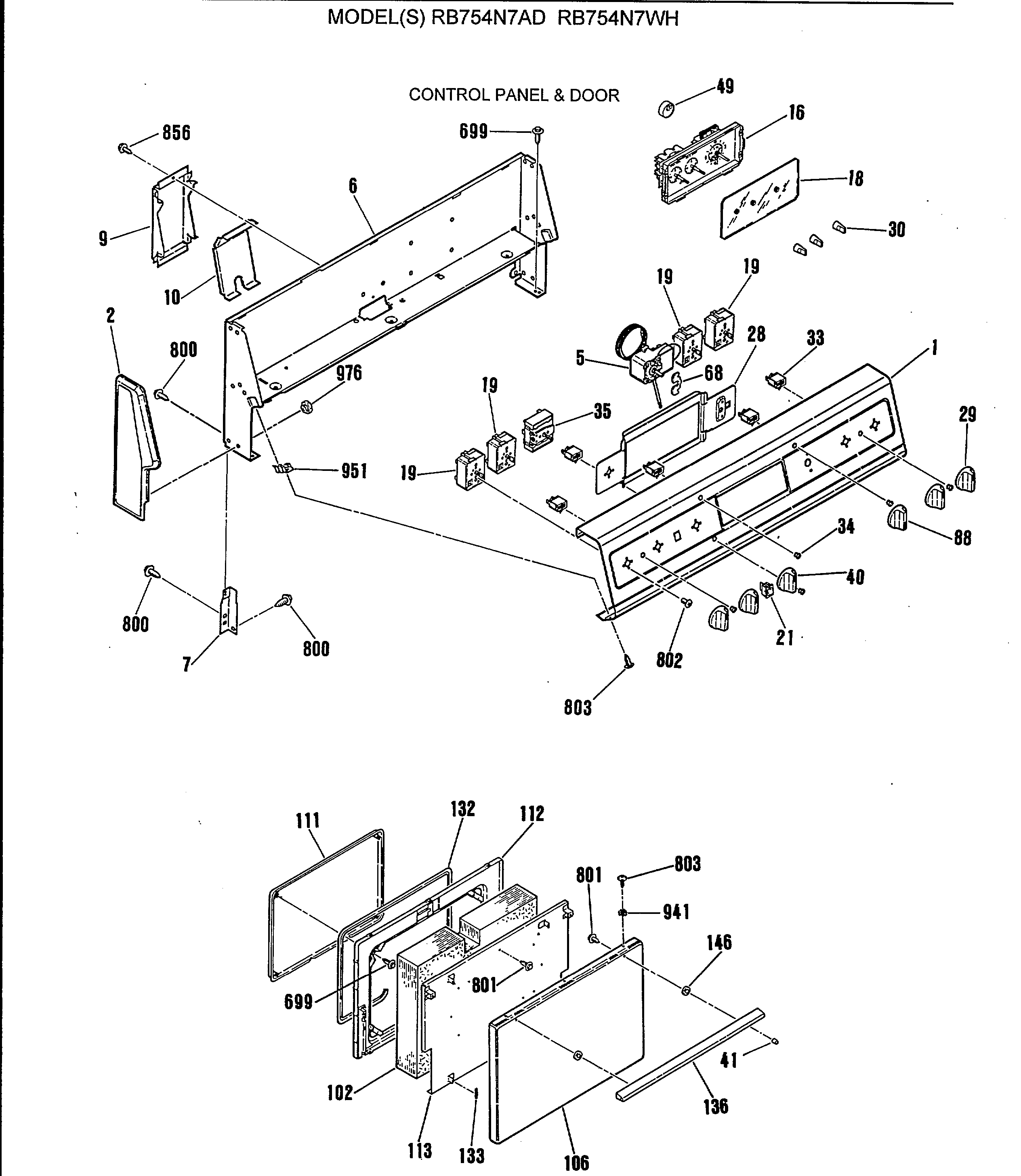

RB754N7AD CONTROL PANEL & DOOR

RB754N7AD CONTROL PANEL & DOOR

Written by

in

RB754N7AD CONTROL PANEL & DOOR

Products

PositionProduct
1GEN WB36K5525
2GEN WB36K5398
2GEN WB36K5399
5GEN WB20K5030
6GEN WB37M0005
7BACKGUARD SUPPORT-RT
7BACKGUARD SUPPORT LT
9GEN WB02X9415
10COVER RACEWAY
16GEN WB11M0001
18GEN WB57K5114
19WB23M24 GE Stove Range Infinite Switch 1500W Cooktop Surface Burner
19WB23K5027 GE Stove Range Oven Infinite Control Burner Switch
21WB24K5035 GE Oven Rocker Switch
28GEN WB02M0037
29GEN WB03K5126
30WB3X5699 GE Oven Timer Knob Kit
33INDICATOR LIGHT-CLEAN
33GEN WB25M0008
34GEN WB25M0009
35SWITCH, OVEN-LOWER
40SELECTOR KNOB
41WB1K5072 GE Oven Screw
49GEN WB11X0008
68GEN WB02K5232
88GEN WB03K5125
102OVEN DOOR INSULATION
106GEN WB56K5038
111GEN WB55K5036
112GEN WB55K5038
113GEN WB02M0036
132WB2K5319 GE Oven Door Gasket
133FELT PAD
136LOWER DOOR HANDLE
146DOOR HANDLE SPACER-BLACK
800WB1M1 GE Oven Screw
802GEN WB01K5123
803WB1X1149 GE Oven Screw
803WB1K5162 GE Oven Black Screw
856WB1X1293 GE Oven Screw
941GEN WB01X1399
951BACKGUARD CLIP
976GEN WB01X1251
999GEN 31-13008
999GEN WB18K5350
999GEN 39-4747
999GEN WB18K5469
999GEN 31-10059
999CLOCK JUMPER W HARNESS
999GEN WB18K5580
