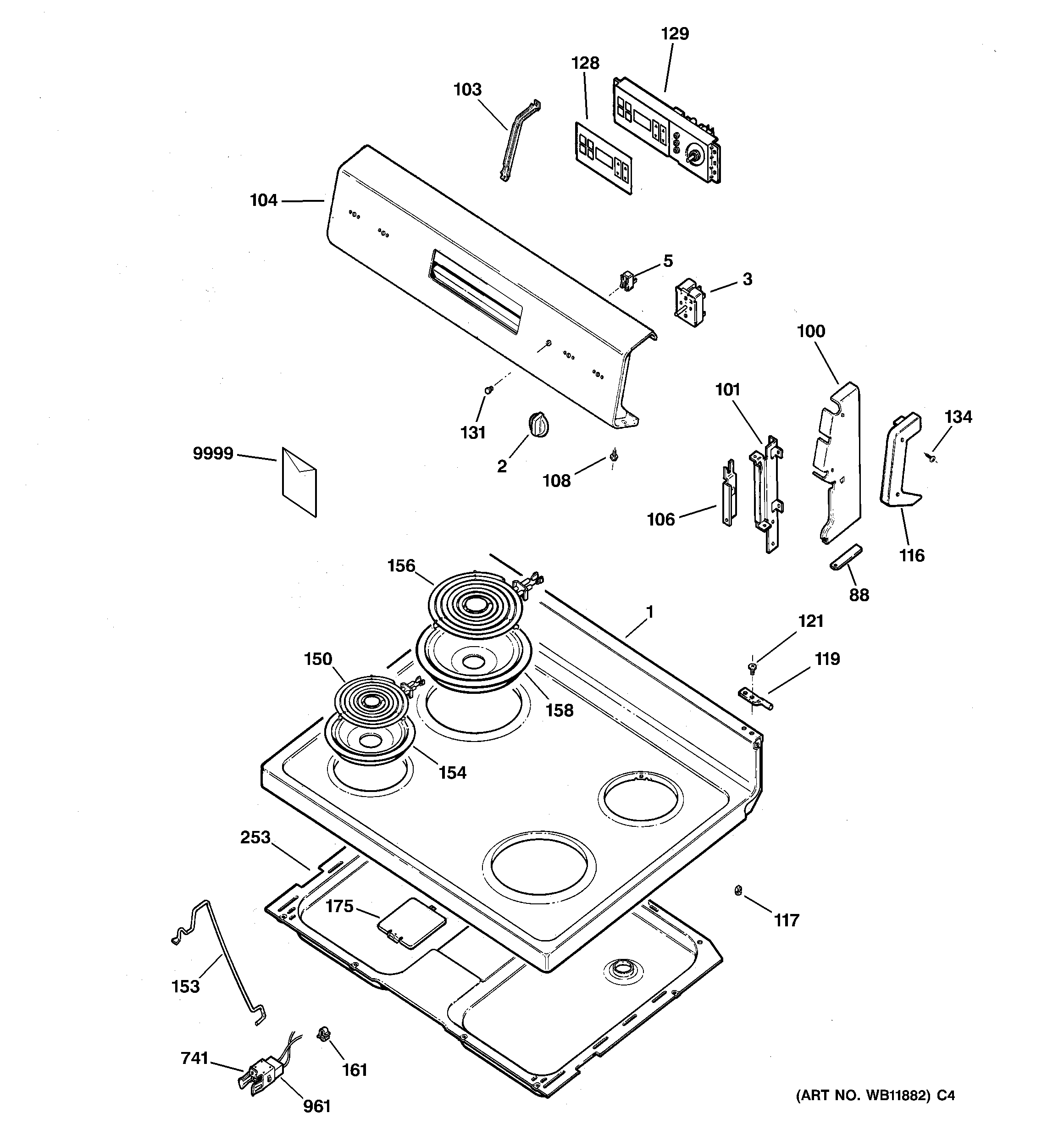

RB757CH1CC CONTROL PANEL & COOKTOP

RB757CH1CC CONTROL PANEL & COOKTOP

Written by

in

RB757CH1CC CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10079 GE Range Top
2INF KNOB (GE) BSQT
3WB24T10025 SWITCH INFIN(2500W)
3WB24T10029 GE Oven Infinite Burner Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
88GEN WB02K0062
100GEN WB07K10116
100GEN WB07K10115
101GEN WB37K0017
101GEN WB37K0018
103GEN WB02K10027
104GEN WB36K10388
106GEN WB10K10001
106GEN WB10K10002
108WB1X5364 GE Oven Mounting Screw
108WB01T10016 GE Oven Screw 8-18 AB Hex
116GEN WB07K10118
116GEN WB07K10117
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128GEN WB27K10127
129CONTROL OVEN TO9 (ELEC)
131WB25T10041 GE Oven Lens
134GEN WB01K10017
150WB30X24401 GE Oven Surface Element Coil
153WB02K10026 GE Oven Rod Support
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156WB30T10074 GE Oven 8" Burner Unit 2600W
158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
161CLIP WIRE
175LATCH COVER
253GEN WB64K10003
741RECEPTACLE W/CLIP
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 49-88008
9999GEN 31-21093
