RB757CH5CC CONTROL PANEL & COOKTOP

RB757CH5CC CONTROL PANEL & COOKTOP

Written by

in

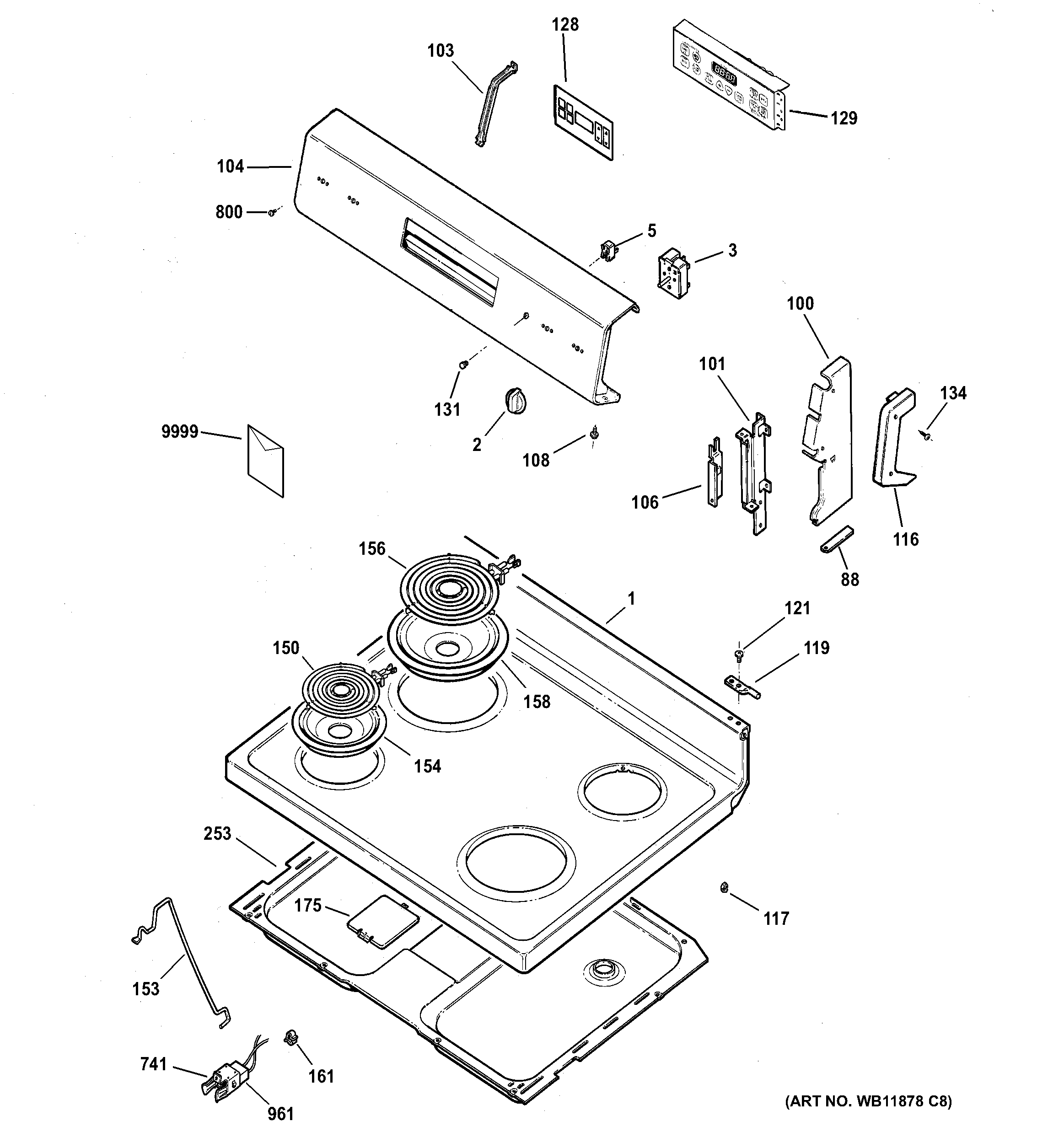

RB757CH5CC CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10080 GE Range White Top
1WB62K10079 GE Range Top
1WB62K10085 GE Oven Cooktop Black
2WB03T10072 GE Oven Burner Knob
2WB03T10076 GE Oven Knob
2INF KNOB (GE) BSQT
3WB24T10025 SWITCH INFIN(2500W)
3WB24T10029 GE Oven Infinite Burner Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
88GEN WB02K0062
100GEN WB07K10116
100GEN WB07K10002
100GEN WB07K10115
100GEN WB07K10001
100GEN WB07K10022
100GEN WB07K10023
101GEN WB37K0017
101GEN WB37K0018
103GEN WB02K10027
104GEN WB36K10388
104GEN WB36K10389
104GEN WB36K10387
106GEN WB10K10001
106GEN WB10K10002
108GEN WB01X5874
108GEN WB01X5716
108WB1X5364 GE Oven Mounting Screw
116WB07K10003 GE Oven Right Black Endcap
116GEN WB07K10004
116GEN WB07K10117
116GEN WB07K10118
116WB07K10007 GE Oven Endcap Left
116WB07K10005 GE Oven Right Endcap
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
128GEN WB27K10179
128WB27K10170 GE Oven Overlay T09-B HP
128WB27K10118 GE Oven Overlay
129CONTROL OVEN TO9 (ELEC)
131WB25T10041 GE Oven Lens
134GEN WB01K10017
134GEN WB01K10004
134GEN WB01K10003
150WB30X24401 GE Oven Surface Element Coil
153WB02K10026 GE Oven Rod Support
154WB31T10014 GE Oven 6-Inch Black Drip Bowl
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156WB30T10074 GE Oven 8" Burner Unit 2600W
158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
158WB31T10015 8" BOWL BLACK REAR BUBBLE
161CLIP WIRE
175LATCH COVER
253WB64K10011 GE Oven Cooktop Box
741WB02K10133 GE Oven Receptacle Clip
800WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 31-10781
9999GEN 31-21107
9999GEN 31-10831
9999GEN 49-88037
