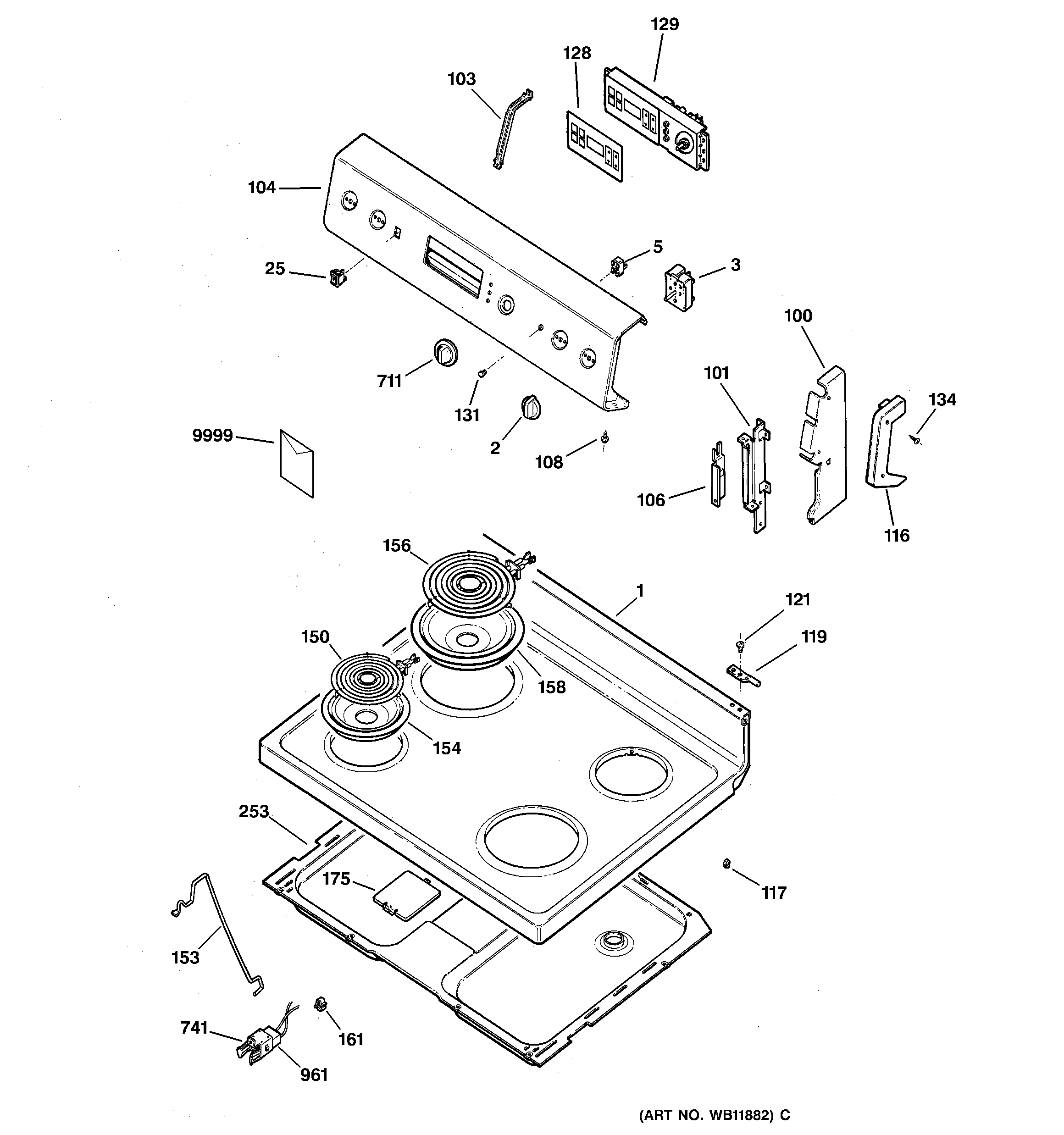

RB757WC3WW CONTROL PANEL & COOKTOP

RB757WC3WW CONTROL PANEL & COOKTOP

Written by

in

RB757WC3WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10080 GE Range White Top
2GEN WB03K10086
3WB24T10025 SWITCH INFIN(2500W)
3WB24T10029 GE Oven Infinite Burner Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
25WB24K5022 GE Oven Rocker Switch
100GEN WB07K10002
100GEN WB07K10001
101GEN WB37K0018
101GEN WB37K0017
103GEN WB02K10027
104GEN WB36K10179
106GEN WB10K10001
106GEN WB10K10002
108GEN WB01X5874
108WB1X5364 GE Oven Mounting Screw
116WB07K10005 GE Oven Right Endcap
116WB07K10007 GE Oven Endcap Left
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128GEN WB27K10016
129CONTROL T08
131WB25T10041 GE Oven Lens
134GEN WB01K10004
150WB30X24401 GE Oven Surface Element Coil
153WB02K10026 GE Oven Rod Support
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156WB30T10074 GE Oven 8" Burner Unit 2600W
158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
161CLIP WIRE
175LATCH COVER
253GEN WB64K10003
711GEN WB03K10087
741RECEPTACLE W/CLIP
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 49-88006
9999GEN 31-20767
