RB758DP1BB CONTROL PANEL & COOKTOP

RB758DP1BB CONTROL PANEL & COOKTOP

Written by

in

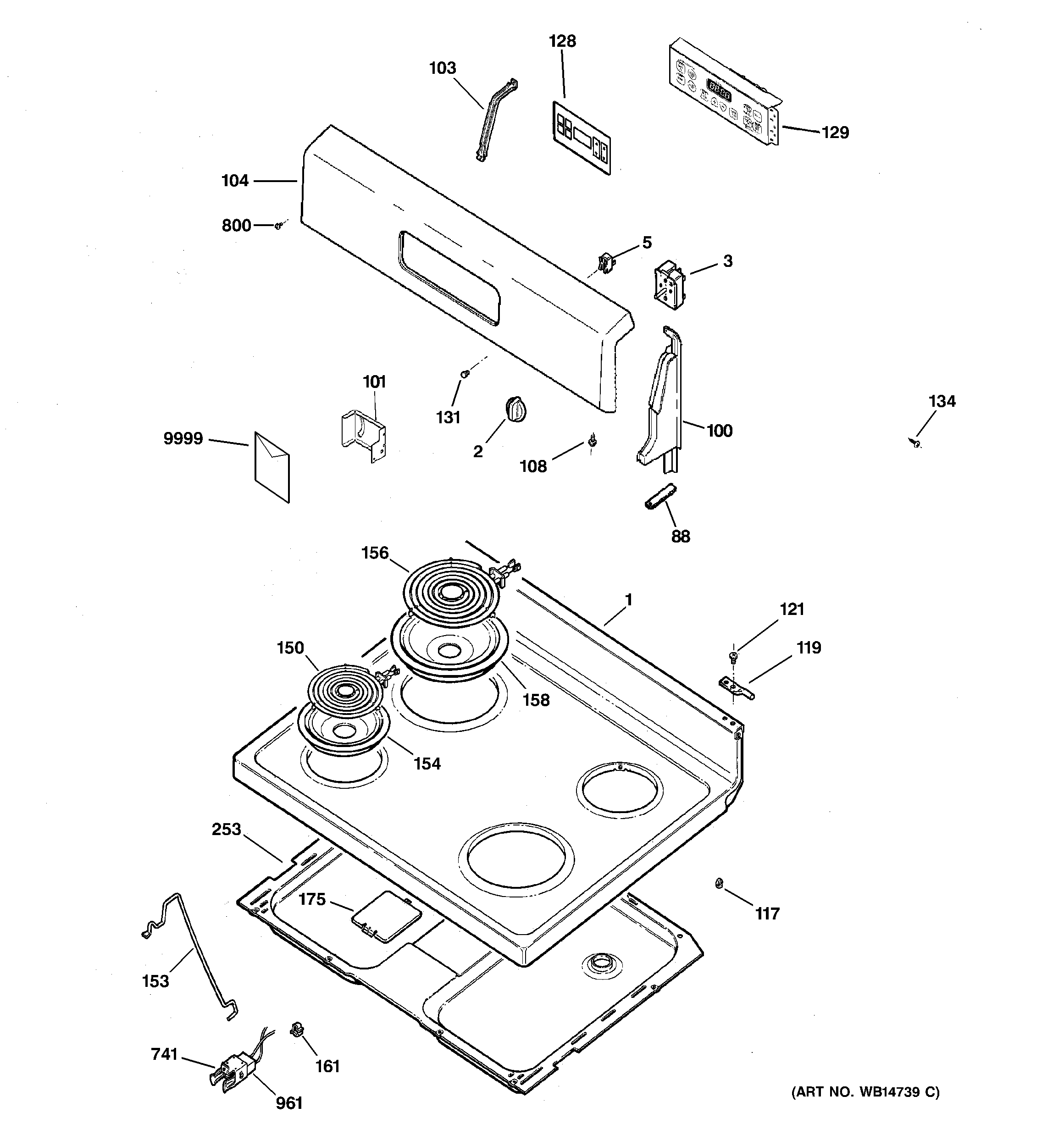

RB758DP1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10085 GE Oven Cooktop Black
1WB62K10079 GE Range Top
1WB62K10080 GE Range White Top
2INF KNOB (GE) BSQT
2WB03T10076 GE Oven Knob
2WB03T10072 GE Oven Burner Knob
3WB24T10025 SWITCH INFIN(2500W)
3WB24T10029 GE Oven Infinite Burner Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
88GEN WB02K0062
100GEN WB07K10197
100WB07K10196 GE Oven Left End Support (White)
100WB07K10195 GE Oven Right White End Support
100GEN WB07K10198
100WB07K10194 GE Oven End Support Gloss Black
100WB07K10193 GE Oven End Support Gloss Black
101WB37K10003 GE Cooktop Right Bracket
101WB37K10004 GE Cooktop Left Bracket
103GEN WB02K10076
104GEN WB36K10845
104GEN WB36K10844
104GEN WB36K10846
117WB02K10075 GE Oven Plastic Nail
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128WB27K10170 GE Oven Overlay T09-B HP
128GEN WB27K10179
128GEN WB27K10314
129CONTROL OVEN TO9 (ELEC)
131WB25T10041 GE Oven Lens
134GEN WB01X5716
134GEN WB01X5874
134WB1X5364 GE Oven Mounting Screw
150SURFACE UNIT ASM 6
153WB02K10026 GE Oven Rod Support
154WB31T10014 GE Oven 6-Inch Black Drip Bowl
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156WB30K10018 GE Oven 8" Burner Unit
158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
158WB31T10015 8" BOWL BLACK REAR BUBBLE
161CLIP WIRE
175LATCH COVER
253WB64K10011 GE Oven Cooktop Box
741WB02K10133 GE Oven Receptacle Clip
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
800WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 31-10781
9999GEN 31-21270
9999GEN 49-88045
9999GEN 31-10831
9999GEN 49-88045-2
