RB758DP1WW BODY PARTS

RB758DP1WW BODY PARTS

Written by

in

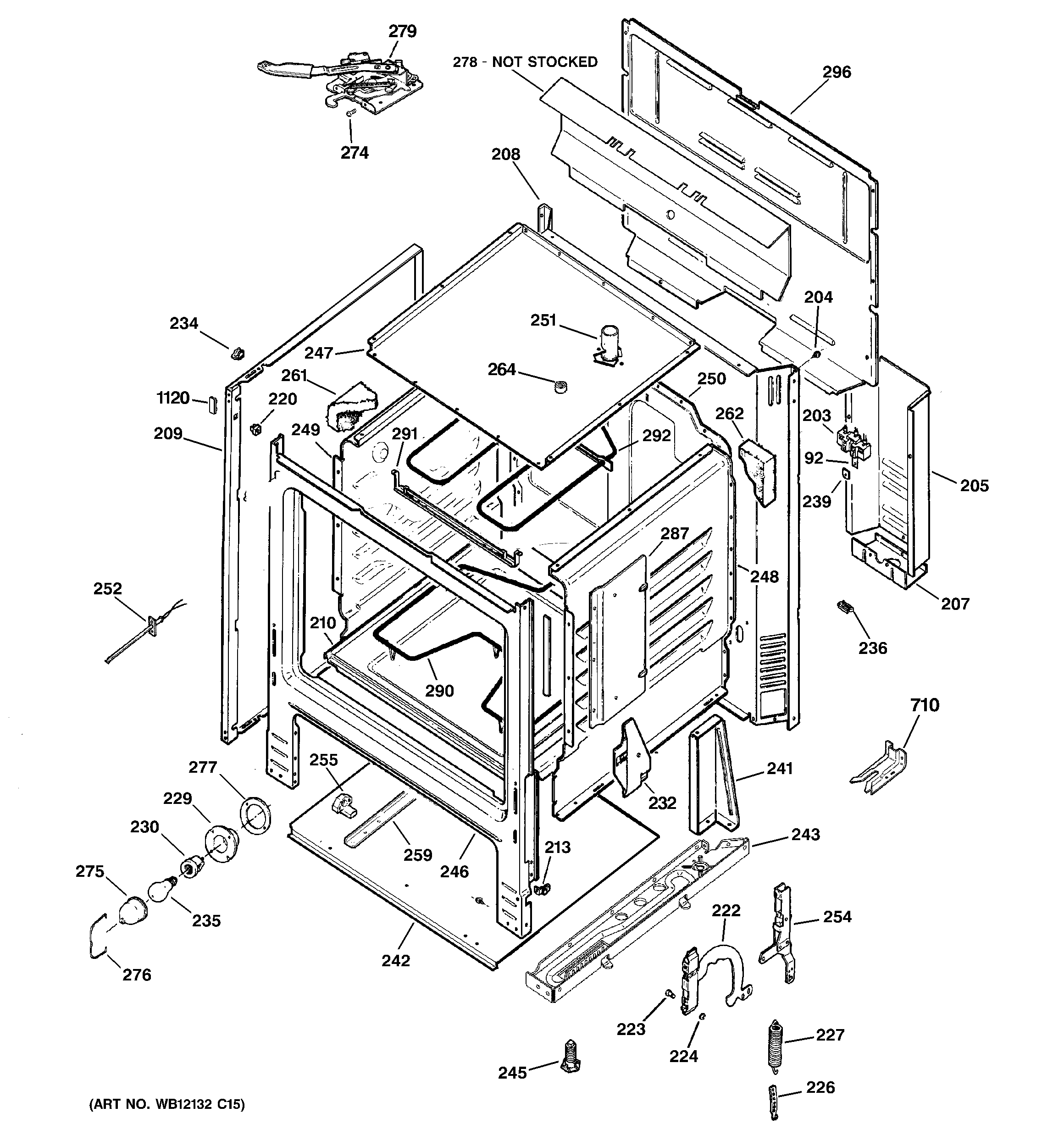

RB758DP1WW BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
203WB17T10011 GE Oven Terminal Block
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
205WB34K10029 GE Oven Guard Terminal
207WB02K10029 GE Oven Mounting Terminal Bracket
208GEN WB63K10005
209WB63K10141 GE Side Panel
209WB63K10144 GE Oven Side Panel
209GEN WB63K10142
210WB63K10006 GE Oven Bottom Assembly
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB09K10001
227GEN WB09K0005
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
232GEN WB34K0003
232GEN WB34K0004
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
236GEN WB02K0022
239PLATE GROUND
241SUPPORT CONTROL
242GEN WB63K10009
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10148
247WB63K10021 GE Oven Top
248WB63K10244 GE Oven Right Side Rack
249WB63K10245 GE Oven Left Side Ran
250WB53K10007 GE Oven Back
251WB38K10002 GE Oven Vent Tube
251WB38K10016 GE Oven Vent Tube Assembly
252SENSOR ASM
254SUPPORT ASM RIVET RT
254GEN WB01K0053
254SUPPORT ASM RIVET LF
255WB02K10158 GE Oven Drawer Support
259WB39K16 GE Oven Drawer Rail
261WB35K10103 GE Oven Insulation Wrap
262WB35K10104 GE Oven Back Insulation
264WB35K10028 GE Oven Catalyst Support
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
278WB34K10083 GE Divider Wiring
279WB02K10144 GE Oven Door Latch Assembly
287GEN WB34K0031
287WB34K30 GE Radiation Guard
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
296WB34K10066 GE Oven Back Cover
710WB02K10384 GE Oven Anti-Tip Bracket Assembly
1120WB02K10179 GE Range Bumper
1120WB02K10180 GE Oven Bumper
1120WB02K10178 GE Oven Bumper
