| WPL LIT816259 |
| WPL LIT816436 |
| WPL LIT313358 |
| WPL LIT816139 |

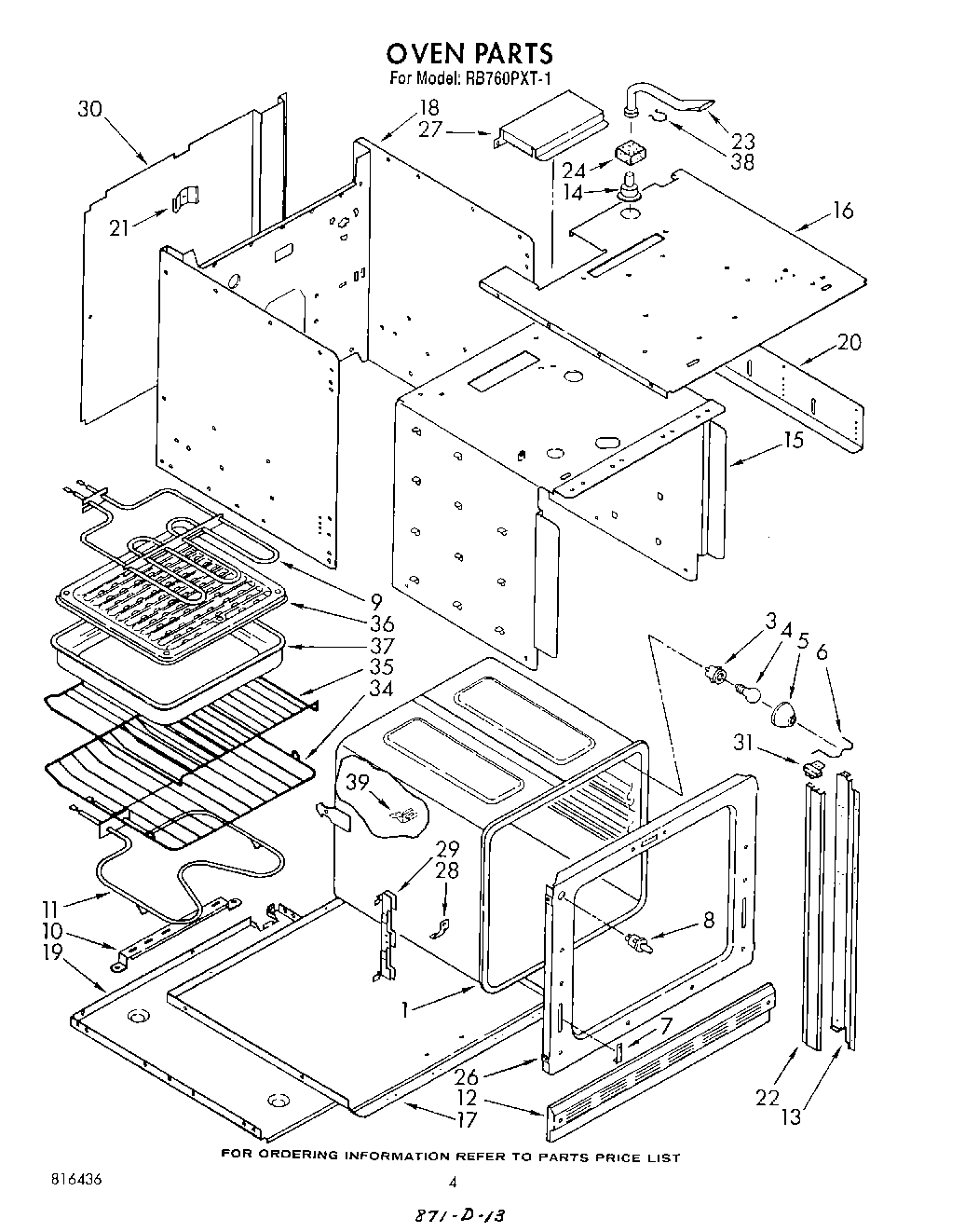

| 1 | Oven (27`` Pyro) |
| 3 | W10856866 Whirlpool Light Socket |
| 4 | RANGE ONLY 40W 120V APPL BULB |
| 5 | Lens, Light |
| 6 | Retainer, Lens |
| 7 | Retainer, Door |
| 8 | Switch, Oven Light |
| 9 | Unit, Broil |
| 10 | Support, Broil Unit |
| 11 | Unit, Bake |
| 12 | Trim, Base |
| 13 | Side Trim (Inner) (R.H.) |
| 13 | Side Trim (Inner) (L.H.) |
| 14 | Vent Tube |
| 15 | Insulation Retainer, Top and Sides |
| 16 | Casing, Top |
| 17 | Insulation Retainer, Bottom |
| 18 | Casing, Back and Sides |
| 19 | Casing, Bottom |
| 20 | Support, Height Adjustment (2) |
| 20 | WP308685 Whirlpool Microwave Screw |
| 21 | Spring, Door (2) |
| 22 | Side Trim, Outer (2) |
| 22 | Back Splash (Screw (4) 10AB x 1/2``) |
| 23 | Screw, 8-32 x 3/16 (2) |
| 23 | Duct, Oven Vent |
| 24 | Insulation |
| 26 | Front Frame |
| 26 | Screw, No.10x24x5/8 |
| 27 | Cover, Motor |
| 28 | WPL 816387 |
| 29 | Channel, Hinge |
| 30 | Screw, 10-24 x 3/8 (2) |
| 30 | Cover, Rear |
| 31 | End Cap, Top |
| 34 | Rack, Oven Regular |
| 35 | Rack, Oven Offset |
| 36 | Grill, Broiler Pan |
| 37 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 38 | Retainer |
| 39 | Wire, 25` Roll (Black 14 Ga.) |
| 39 | FOIL, ALUMINUM OVEN (18`` X 25 ) |
| 39 | Wire, 25`` Roll (White 14 GA.) |
| 39 | WPW10208653 Whirlpool Insulation |
| 39 | WPL 816338 |
| 39 | Wire, 25` Roll (Red 14 Ga.) |
| 39 | Grease |
| 39 | Touch-Up Oven (1 Oz.) |
| 39 | Wire (14 Ga. 150 c Brown) |
| 39 | Wire (14 Ga. 150 c Orange) |
| 39 | Wire (14 Ga. 150 c Yellow) |
| 39 | Wire (12 Ga. 150 c Black) |
| 39 | 18 Ga. 80~c Rating (Red) |
| 39 | Wire (14 Ga. 200 c Brown) |
| 39 | 1 |
| 39 | Wire (14 Ga. 150 c Blue) |
| 39 | 242831 Whirlpool Oven Wire |
| 39 | Wire (14 Ga. 150 c Green) |
