RB760PXT2 04 – SECTION

Written by

Products

Position	Product
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL LIT816502
	Grease
	WPL LIT313358
	WPL LIT816259
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WPW10208653 Whirlpool Insulation
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPL LIT816139
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	Touch-Up Oven (1 Oz.)
	242831 Whirlpool Oven Wire

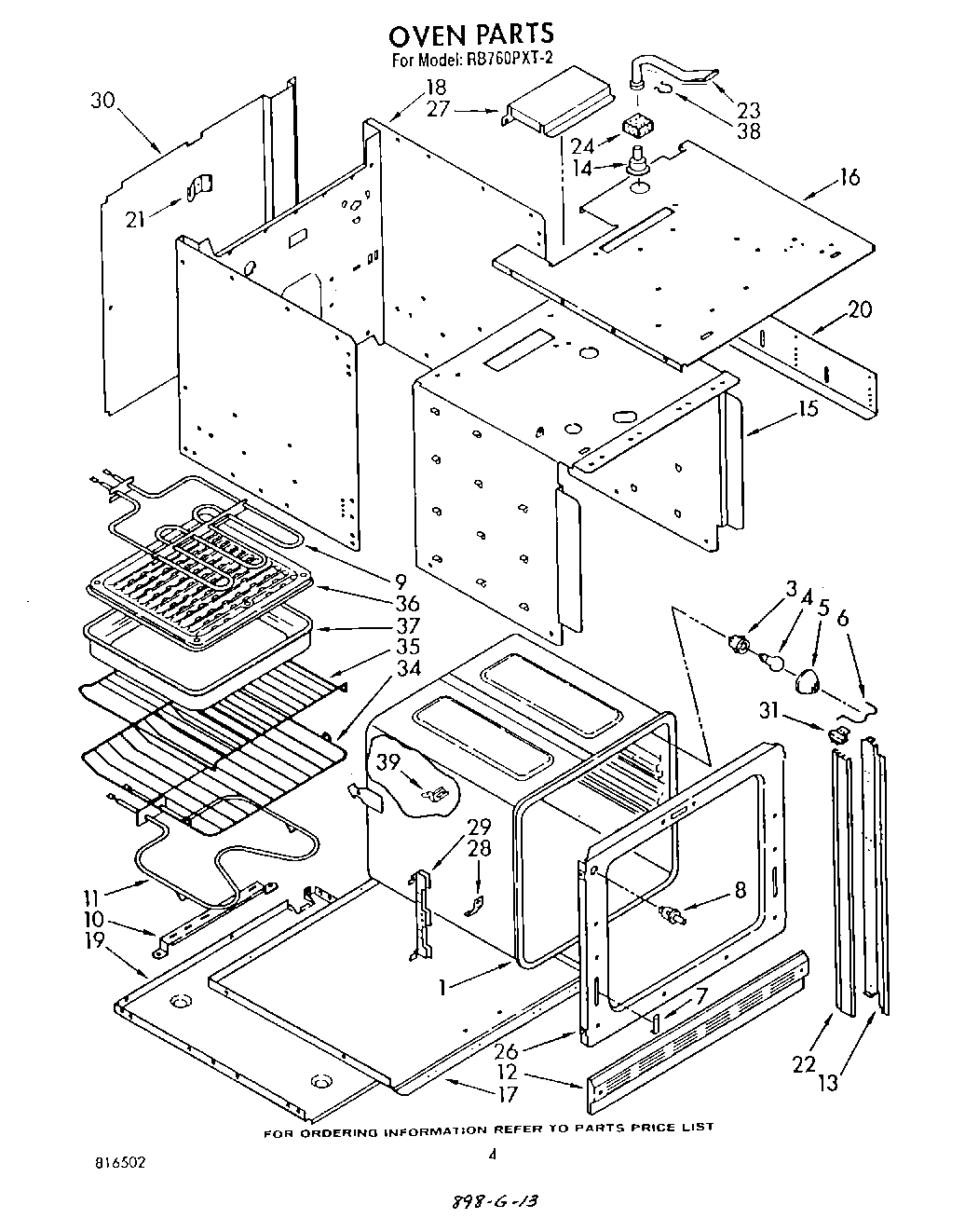

1	Oven (27“ Pyro)
3	W10856866 Whirlpool Light Socket
4	RANGE ONLY 40W 120V APPL BULB
5	Lens, Light
6	Retainer, Lens
7	Retainer, Door
8	Switch, Oven Light
9	Unit, Broil
10	Support, Broil Unit
11	Unit, Bake
12	Trim, Base
13	Side Trim (Inner) (L.H.)
13	Side Trim (Inner) (R.H.)
14	Vent Tube
15	Insulation Retainer, Top and Sides
16	Casing, Top
17	Insulation Retainer, Bottom
18	Casing, Back and Sides
19	Casing, Bottom
20	Support, Height Adjustment (2)
20	WP308685 Whirlpool Microwave Screw
21	Spring, Door (2)
22	Side Trim, Outer (2)
22	Back Splash (Screw (4) 10AB x 1/2“)
23	Duct, Oven Vent
23	Screw, 8-32 x 3/16 (2)
24	Insulation
26	Front Frame
26	Screw, No.10x24x5/8
27	Cover, Motor
28	WPL 816387
29	Channel, Hinge
30	Cover, Rear
30	Screw, 10-24 x 3/8 (2)
31	End Cap, Top
34	Rack, Oven Regular
35	Rack, Oven Offset
36	Grill, Broiler Pan
37	4396923 Whirlpool Broil Pan Set Gray Porcelain
38	Retainer
39	WPL 816338
