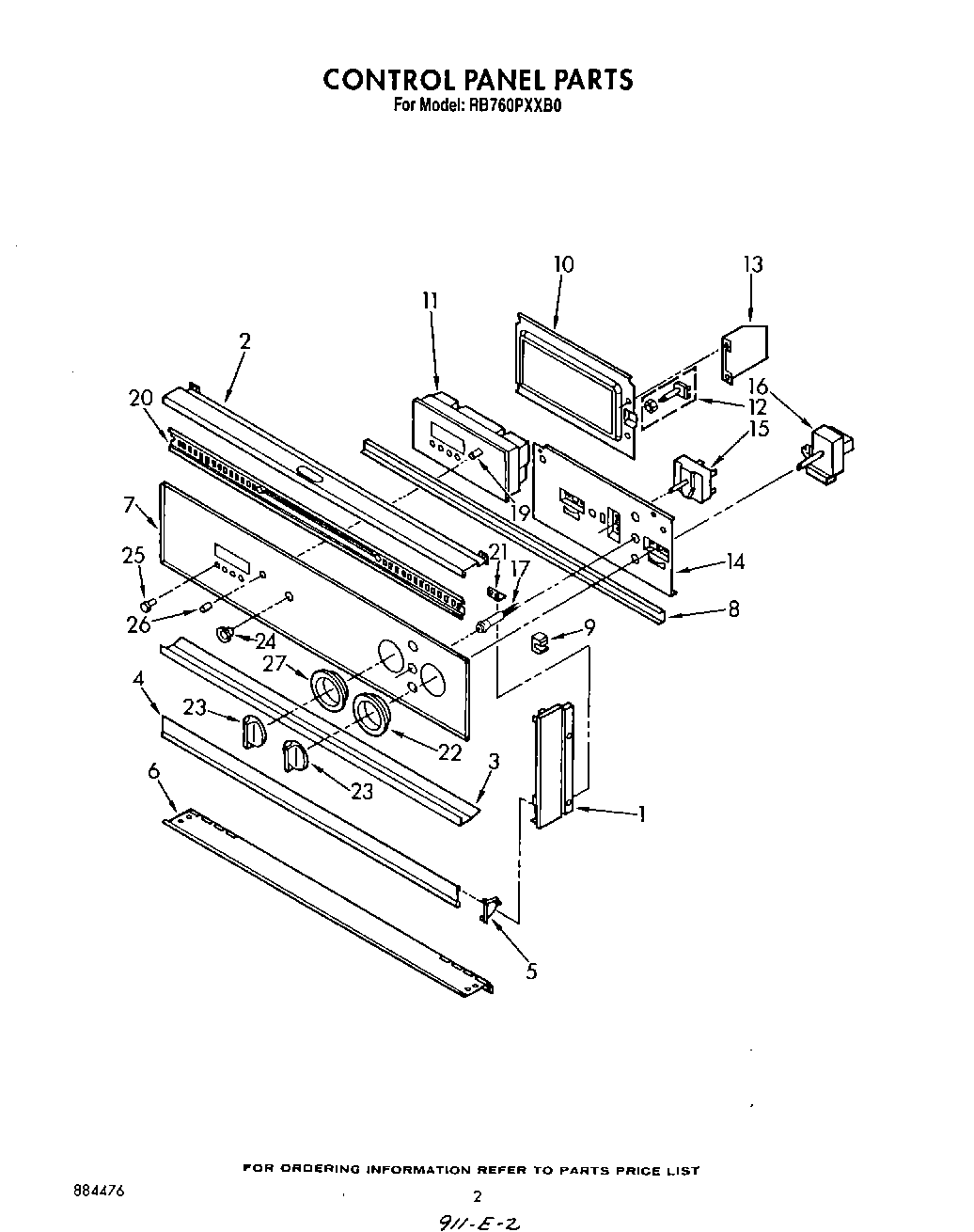

RB760PXXB0 02 – CONTROL PANEL, OPTIONAL

Products

Position	Product
	Repair Parts List
	Installation Instructions
	Tech Sheet
	Use & Care Guide
1	End Cap (Right Hand)
1	End Cap (Left Hand)
2	Trim, Top
3	Trim, Center
4	Door, Vent
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Screw, Black (2)
6	Trim, Bottom
7	Glass, Control Panel
8	Rail, Mounting (Components)
9	Retainer, Glass (6)
10	Plate, Mounting (Clock)
11	Timer, Digital (Includes Knobs)
12	Switch, Oven Light
13	Shield, Heat
14	Plate, Mounting (Controls)
15	Switch, Selector
16	WP486579 Whirlpool Air Conditioner Screw
16	Thermostat, upper
17	Indicator Light, Oven (Lower Oven)
19	Shaft, Bit Generator
20	Insert, Vent
21	WP90767 Whirlpool Screw
21	Bracket, Mounting
22	Escutcheon, Oven Thermostat
23	WP3150371 Whirlpool Control Knob
24	Bezel Switch (1)
25	WPL 313958
26	Knob, Bit Generator (Black)
27	Escutcheon, Selector Switch
27	Screw,
