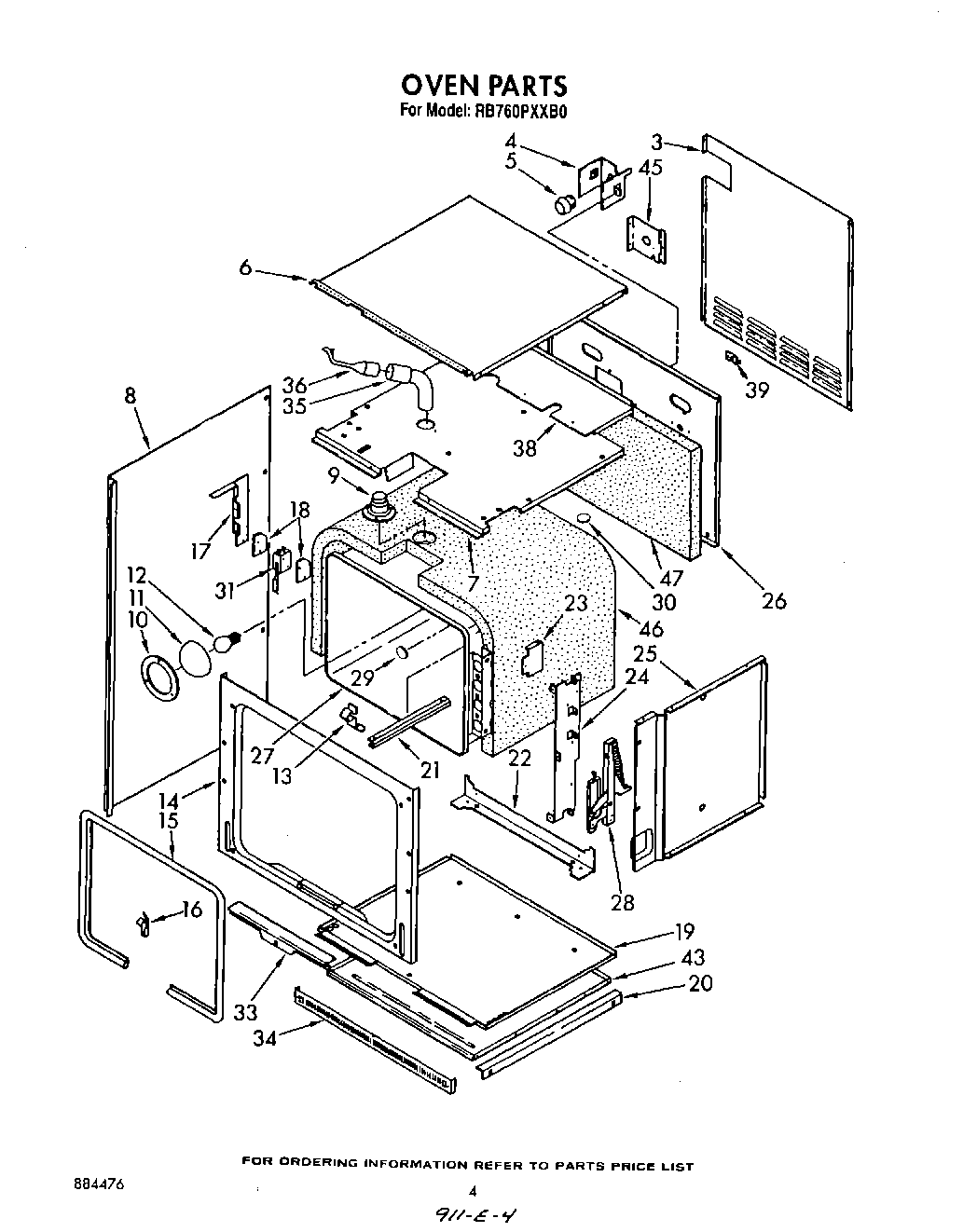

RB760PXXB0 03 – OVEN

Products

Position	Product
3	Cabinet, Back
4	Housing, Light
5	Socket, Light
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Smoke Eliminator (Upper Oven)
10	Retainer, Glass
11	Light Lens
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Screw (2)
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Broiler Element Support-Right
21	Screw (3)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (4)
29	Plug Button (5/8“ Hole)
30	Plug Button (3/8“ Hole)
31	Screw (2)
31	Nut (2)
31	Switch, Door
32	Insulator, Switch
33	Retainer, Seal
33	Screw (4)
34	Vent, Lower Trim (Black)
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
35	Vent, Tube (Upper, Female)
36	Vent Tube (Upper Male)
37	Shield, Vent
38	Extension, Shelf
39	WP3177991 Whirlpool Screw
39	Screw
39	Cover, Cap Tube
43	Bottom, Oven
45	Bracket, Conduit
45	WP90767 Whirlpool Screw
46	Insulation, Oven
47	Insulation, Back
