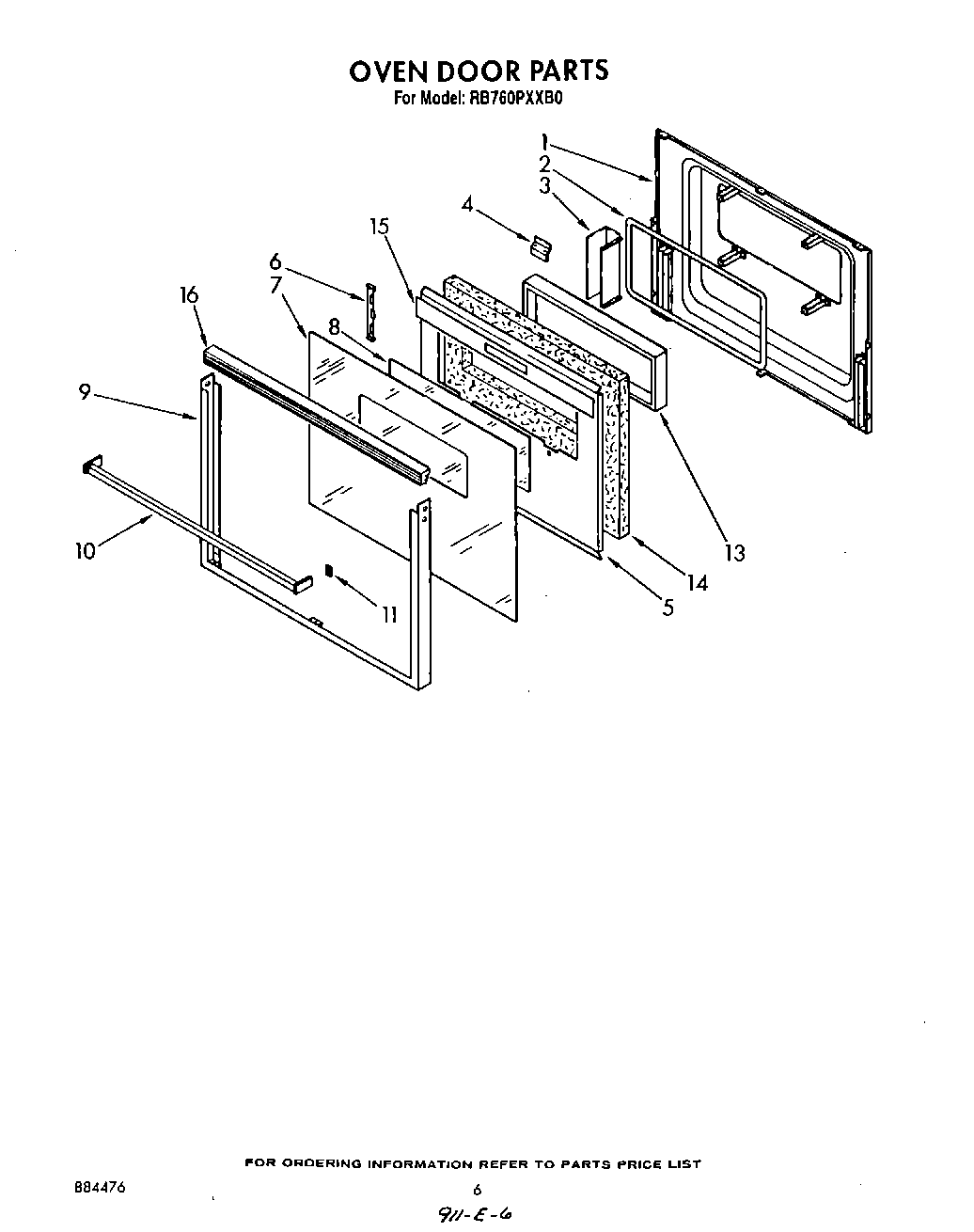

RB760PXXB0 04 – OVEN DOOR

RB760PXXB0 04 – OVEN DOOR

Written by

in

RB760PXXB0 04 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Insulation, Retainer
6	Bracket, Glass Mtg.
7	Glass, Door
8	Glass, Reflective
9	Frame, Door
10	Handle, Door
10	WP355515 Whirlpool Screw
11	Clip, Mtg (2)
11	Screw (3)
12	Screw, Black (2)
12	Retainer, Glass
13	Window Package
14	Vent, Lower Trim (Screw (2))
14	Insulation, Door
15	Shield, Door
15	WP90767 Whirlpool Screw
16	Trim, Door
