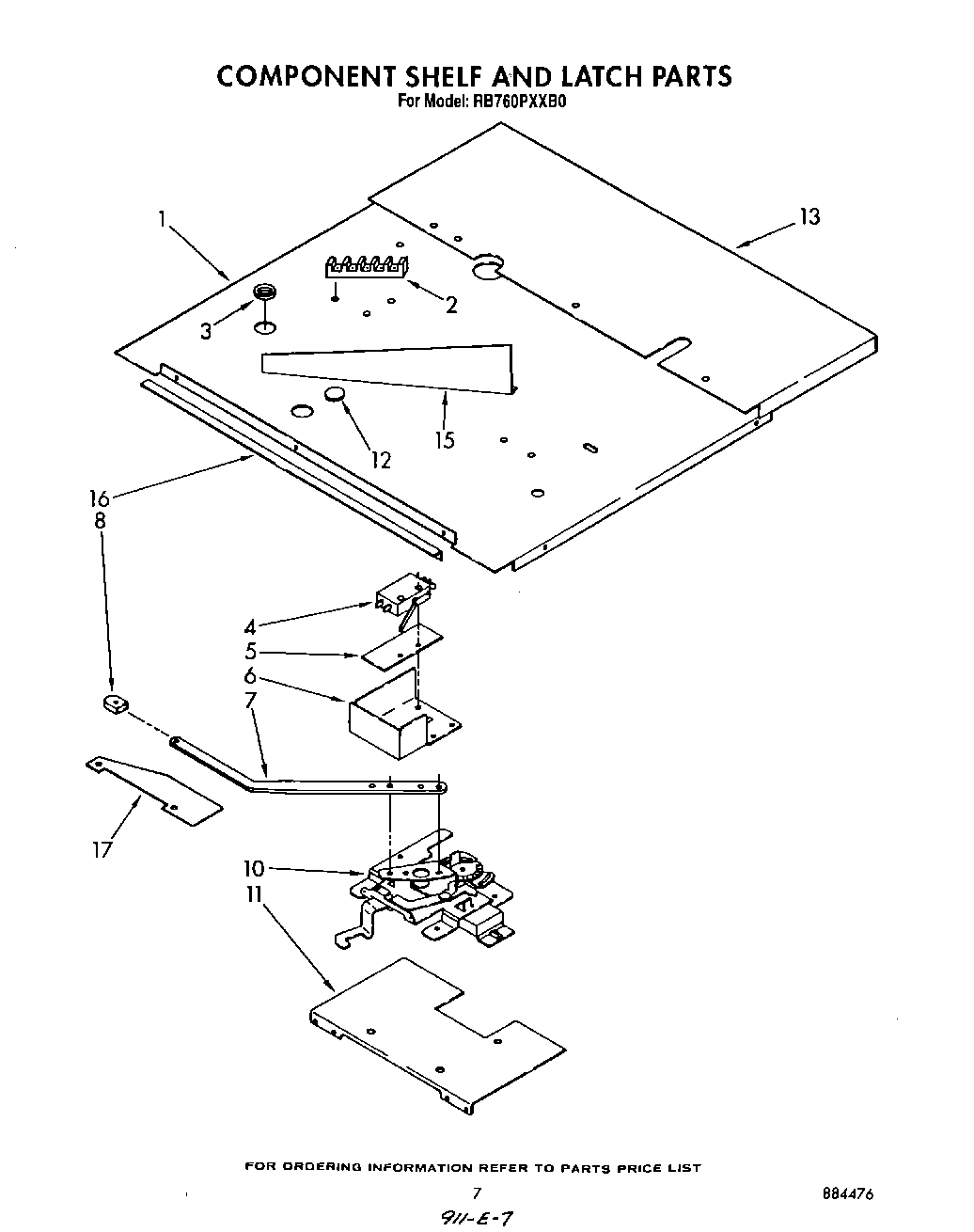

RB760PXXB0 05 – COMPONENT SHELF AND LATCH
Written by
in
RB760PXXB0 05 – COMPONENT SHELF AND LATCH
Products
Position
Product
1
Shelf, Component
2
WP8203546 Whirlpool Terminal Block
2
W10841059 Whirlpool Screw
3
Bushing
4
Switch, Latch
4
Screw
5
Insulator, Switch
6
Guard, Latch
6
Screw,
7
Handle, Latch
8
Screw, 8-18 X 3/4 (4)
8
WP486579 Whirlpool Air Conditioner Screw
8
Knob, Latch Handle
8
Screw (2)
8
Screw
10
Latch, Mechanism
11
Plate, Mounting
12
Plug, Button
13
WP3177991 Whirlpool Screw
13
Extension, Shelf
15
Baffle, Air
16
Shield, Heat
17
WP90767 Whirlpool Screw
17
Support, Latch
←
