RB760PXXB1 02 – CONTROL PANEL, OPTIONAL
Written by
in

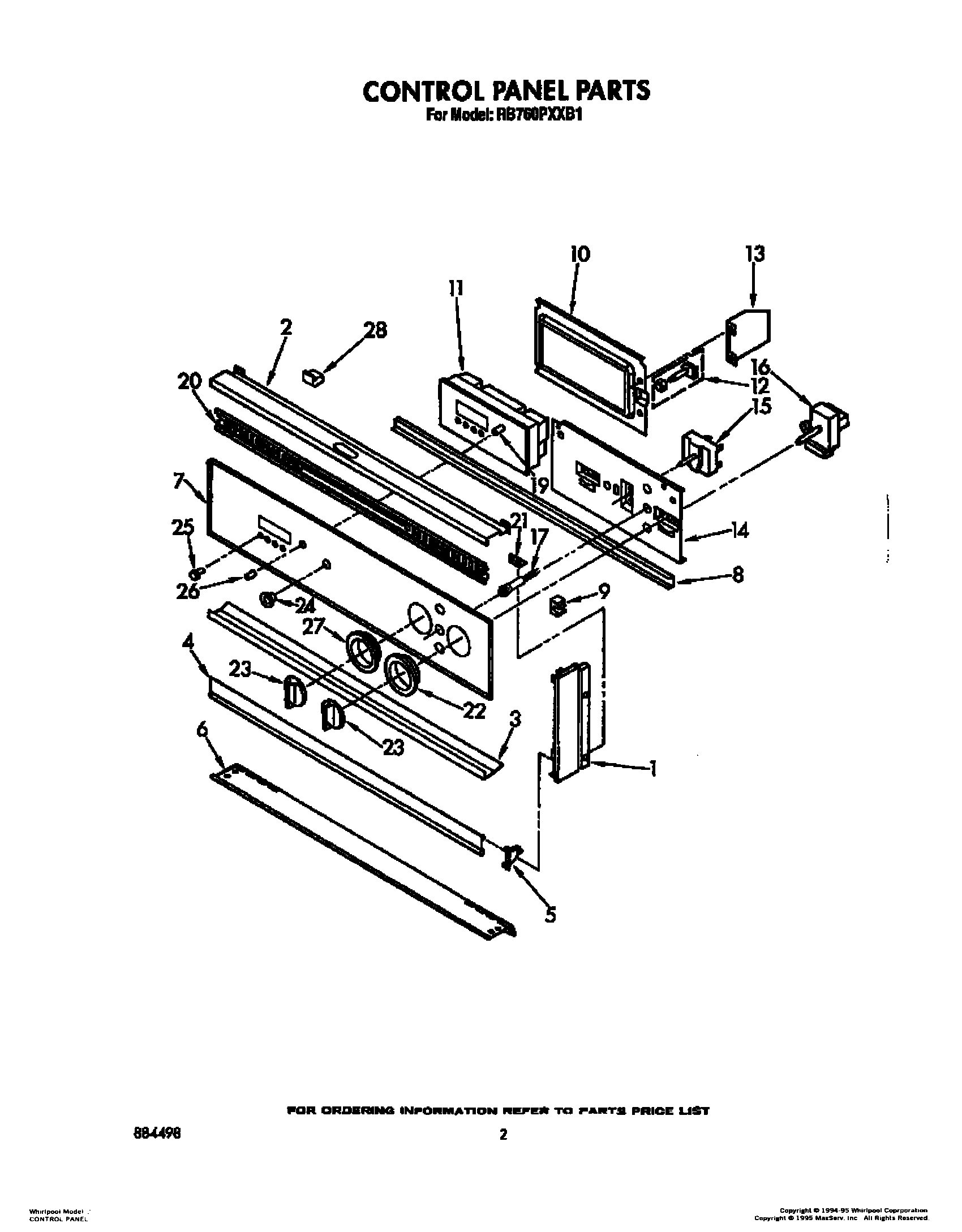

RB760PXXB1 02 – CONTROL PANEL, OPTIONAL
Products
Position
Product
Repair Parts List
Installation Instructions
Tech Sheet
Use & Care Guide
1
End Cap (Left Hand)
1
End Cap (Right Hand)
2
Trim, Top
3
Trim, Center
4
Door, Vent
5
End Trim, Vent (Left Side)
5
End Trim, Vent (Right Side)
6
Trim, Bottom
6
Screw, Black (2)
7
Glass, Control Panel
8
Rail, Mounting (Components)
9
Retainer, Glass (6)
10
Plate, Mounting (Clock)
11
Timer, Digital (Includes Knobs)
12
Switch, Oven Light
13
Lockwasher
13
Shield, Heat
14
Plate, Mounting (Controls)
15
Switch, Selector
16
WP486579 Whirlpool Air Conditioner Screw
16
Thermostat, Oven
17
Indicator Light, Oven (Lower Oven)
19
Shaft, Bit Generator
20
End Cap (Washer)
20
Insert, Vent
21
WP90767 Whirlpool Screw
21
Bracket, Mounting
22
Escutcheon, Oven Thermostat
23
WP3150371 Whirlpool Control Knob
24
Bezel Switch (1)
25
WPL 313958
26
Knob, Bit Generator (Black)
27
Screw,
27
Escutcheon, Selector Switch
28
Screw
28
Support, Glass
←
