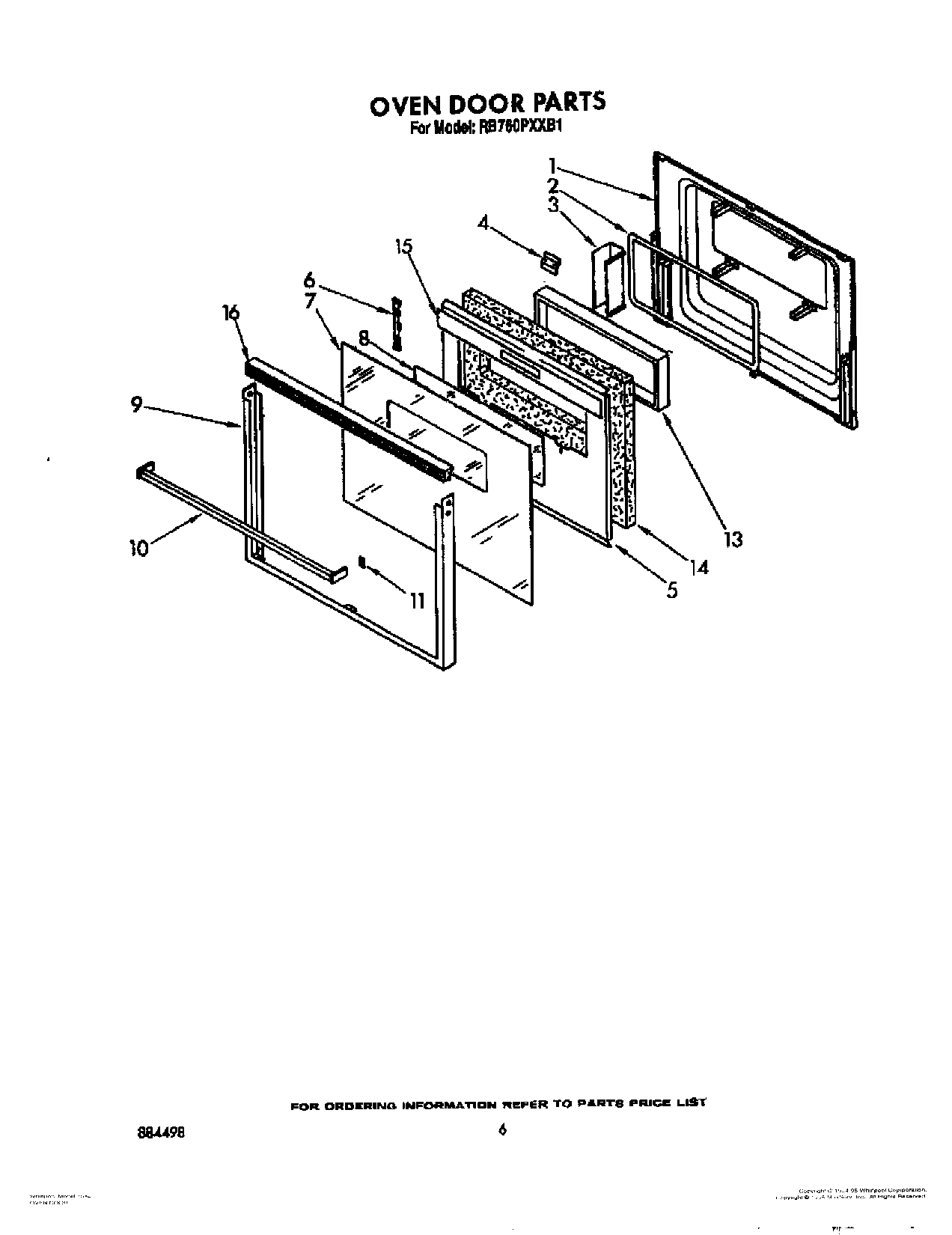

RB760PXXB1 04 – OVEN DOOR

RB760PXXB1 04 – OVEN DOOR

Written by

in

RB760PXXB1 04 – OVEN DOOR

Products

PositionProduct
1Liner, Door
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
6Bracket, Glass Mtg.
7Glass, Door
8Glass, Reflective
9Frame, Door
10Handle, Door
10WP355515 Whirlpool Screw
11Clip, Mtg (2)
11Screw (3)
12Screw, Black (2)
12Retainer, Glass
13Window Package
14Vent, Lower Trim (Screw (2))
14Insulation, Door
15Shield, Door
15WP90767 Whirlpool Screw
16Trim, Door
