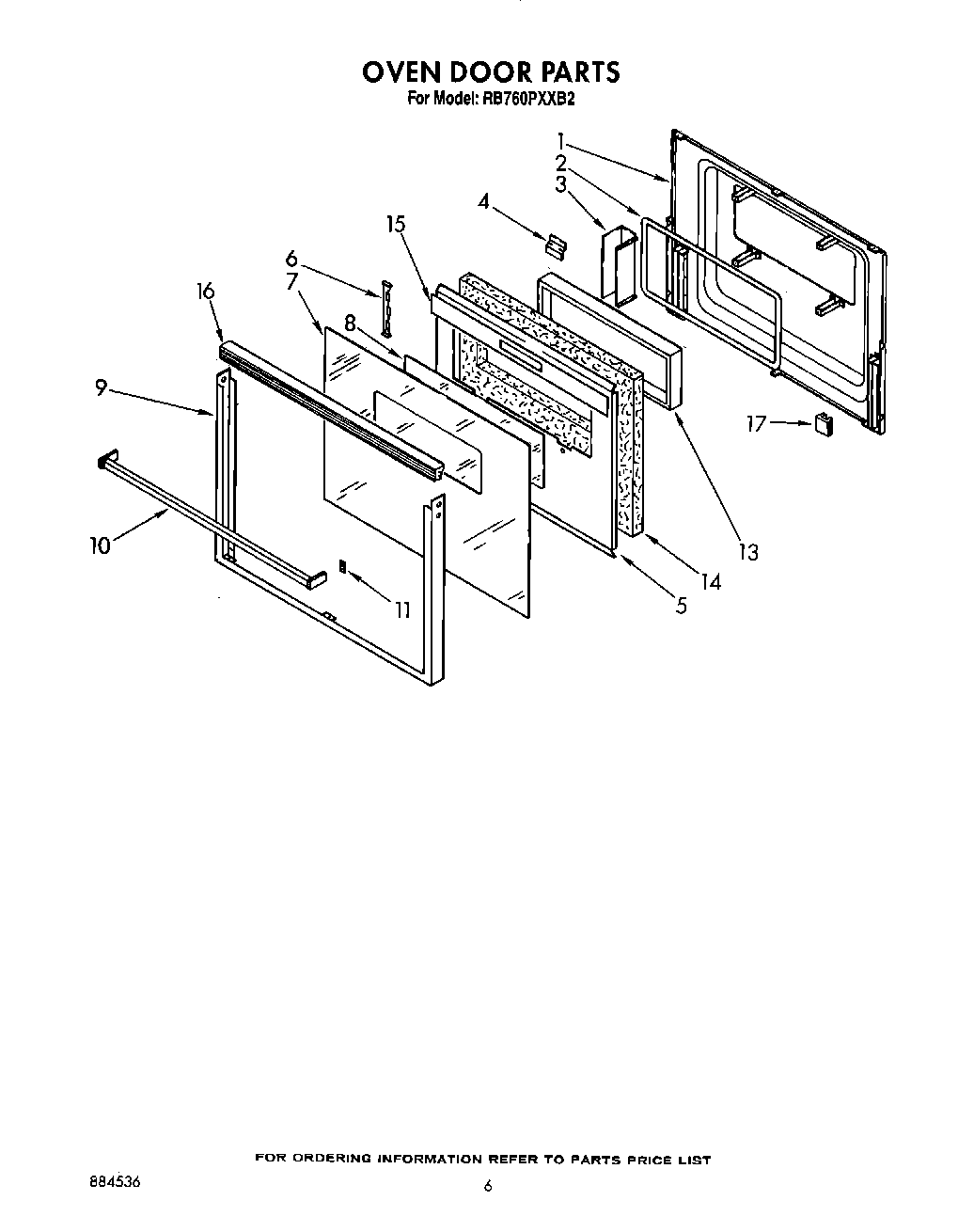

RB760PXXB2 05 – OVEN DOORadmin2025-04-26T11:21:59+00:00RB760PXXB2 05 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 2 | Seal, Window |
| 3 | Spacer, Window |
| 4 | Latch, Strike |
| 5 | Insulation, Retainer |
| 6 | Bracket, Glass Mtg. |
| 7 | Glass, Door |
| 8 | Glass, Reflective |
| 9 | Frame, Door |
| 10 | Handle, Door |
| 10 | WP355515 Whirlpool Screw |
| 11 | Screw, Black (2) |
| 11 | Clip, Mtg (2) |
| 13 | Window Package |
| 14 | Vent, Lower Trim (Screw (2)) |
| 14 | Insulation, Door |
| 15 | Shield, Door |
| 15 | WP90767 Whirlpool Screw |
| 16 | Trim, Door |
| 17 | Bumper, Door Glass |
