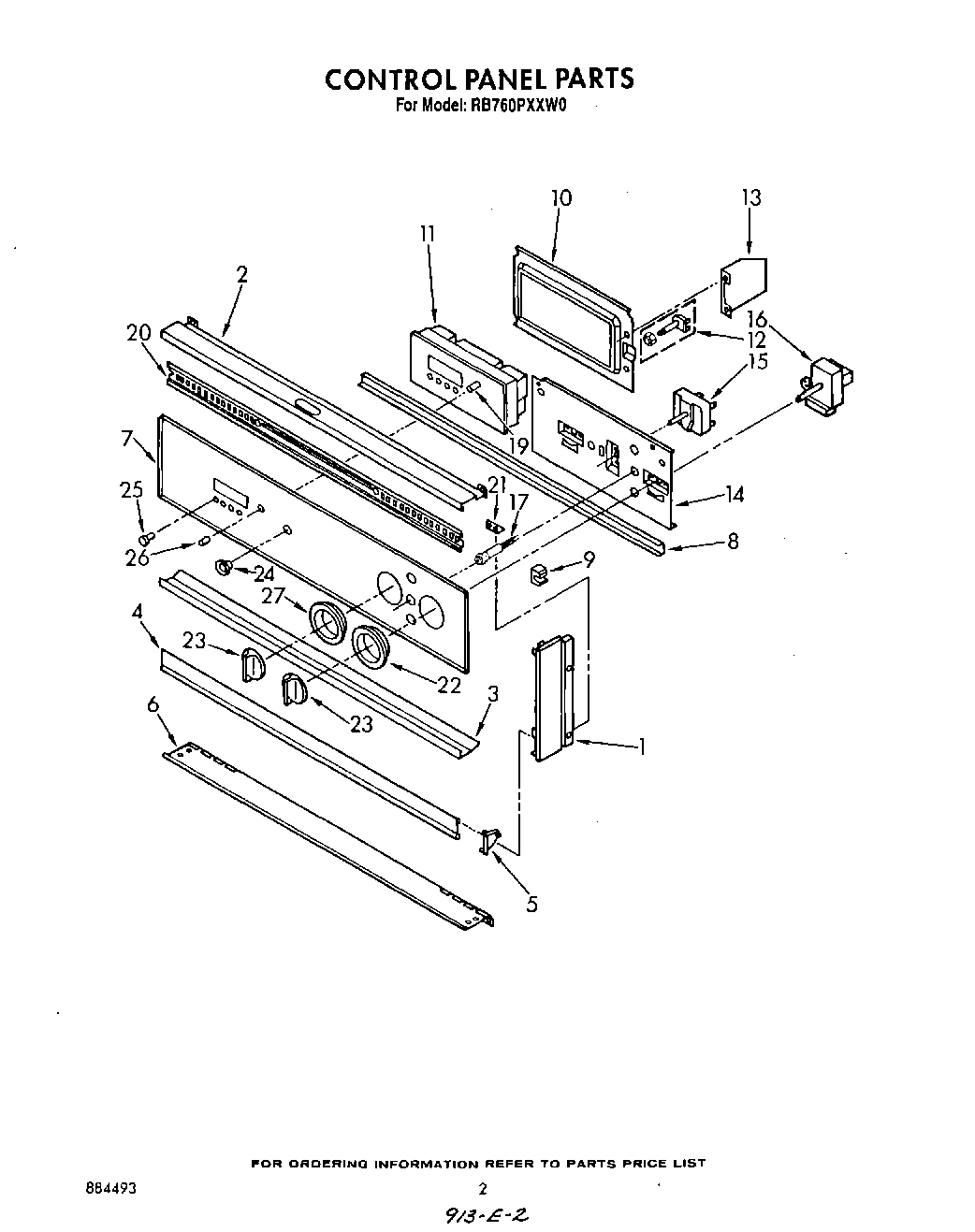

RB760PXXW0 02 – CONTROL PANEL , LIT/OPTIONAL

RB760PXXW0 02 – CONTROL PANEL , LIT/OPTIONAL

Written by

in

RB760PXXW0 02 – CONTROL PANEL , LIT/OPTIONAL

Products

PositionProduct
Repair Parts List
Installation Instructions
Tech Sheet
Use & Care Guide
1End Cap (Right Hand)
1End Cap (Left Hand)
2Trim, Top
3Trim, Center
4Door, Vent
5Trim, Vent Door (Brite Aluminum, L.H.)
5Trim, Vent Door (Brite Aluminum, R.H.)
6Trim, Bottom
6Screw, 10-32 x 1/2
7Glass, Control Panel
8Rail, Mounting (Components)
9Retainer, Glass (6)
10Plate, Mounting (Clock)
11Timer
12Switch, Oven Light (White)
13Shield, Heat
14Plate, Mounting (Controls)
15Switch, Selector
16Thermostat, Oven
16WP486579 Whirlpool Air Conditioner Screw
17Indicator Light, Oven (Lower Oven)
19Shaft, Bit Generator
20Insert, Vent
21WP90767 Whirlpool Screw
21Bracket, Mounting
22Escutcheon, Oven Thermostat
23Knob, Control (2)
24Bezel, Switch (White)
25WPL 3149177
26Knob, Bit Generat
27Escutcheon, Selector Switch
27Screw,
27Screw
