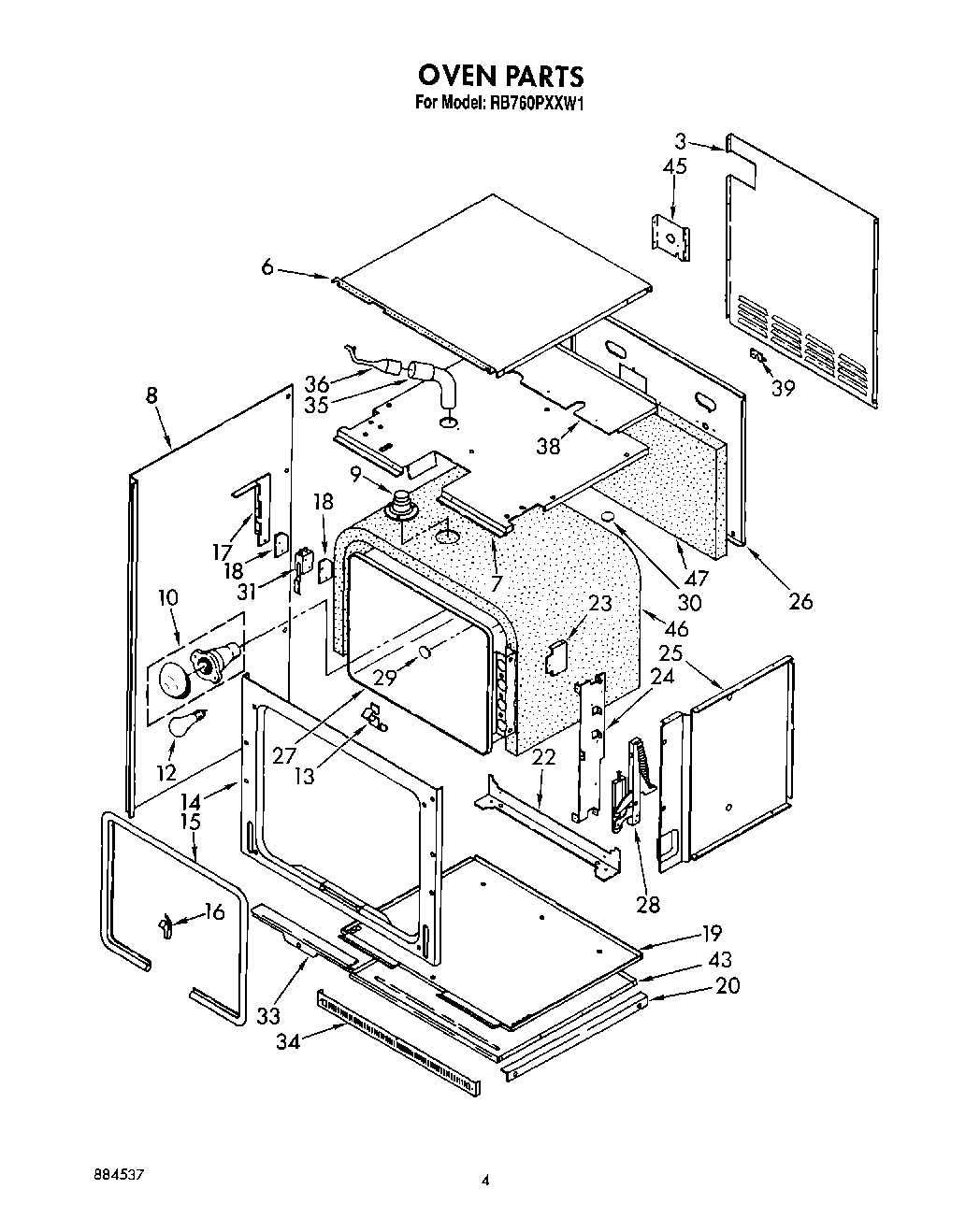

RB760PXXW1 04 – OVEN

Products

Position	Product
3	Cabinet, Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Screw (6)
28	Hinge, Door
29	Button, Plug
30	Button, Plug
31	Nut (2)
31	Screw (2)
31	Switch, Door
33	Retainer, Seal
33	SCREW
33	Screw (4)
34	Vent, Lower Trim (Screw (2))
34	Screw, Black (2)
34	Vent, Lower Trim (White)
35	Vent, Tube (Upper, Female)
36	WP90767 Whirlpool Screw
36	Vent Tube (Upper Male)
38	Extension, Shelf
39	Screw
39	WP3177991 Whirlpool Screw
39	Cover, Cap Tube
43	Bottom, Oven
44	Probe Cover
45	Bracket, Conduit
46	Insulation, Oven
47	Insulation, Back
