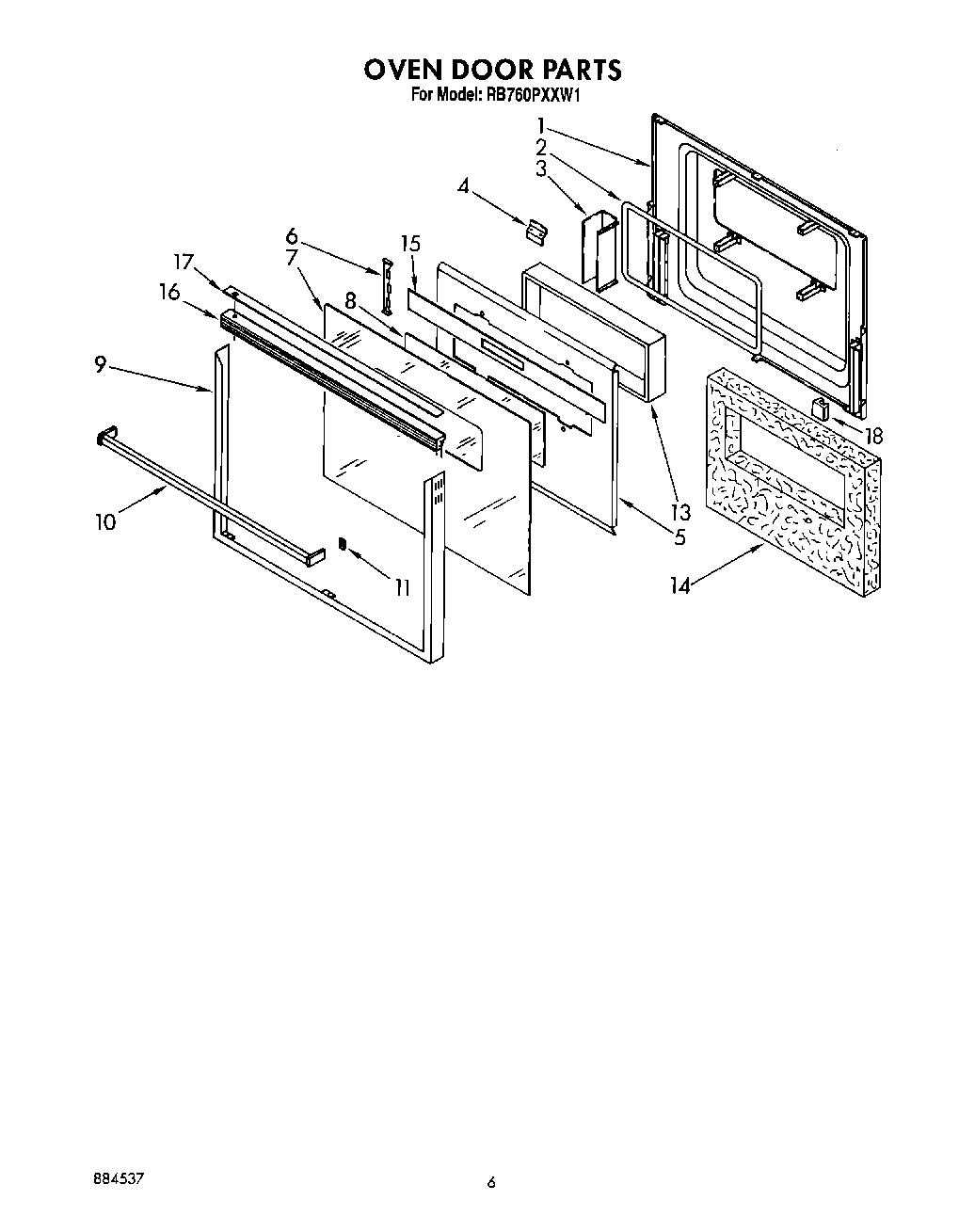

RB760PXXW1 05 – OVEN DOOR

Products

PositionProduct
1Liner, Door
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
6Bracket, Glass Mtg.
7Glass, Door (White Model)
8Glass, Reflective
9Frame, Door
10WP355515 Whirlpool Screw
10Handle, Door (White Model)
11Clip, Mtg (2)
12Retainer, Glass
12Screw (6)
13Window Package
14Insulation, Door
15Shield, Door
15WP90767 Whirlpool Screw
16Trim, Door (White Model)
17Vent, Lower Trim (Screw (2))
17Cap, Top (White Model Only)
18Bumper, Door Glass
