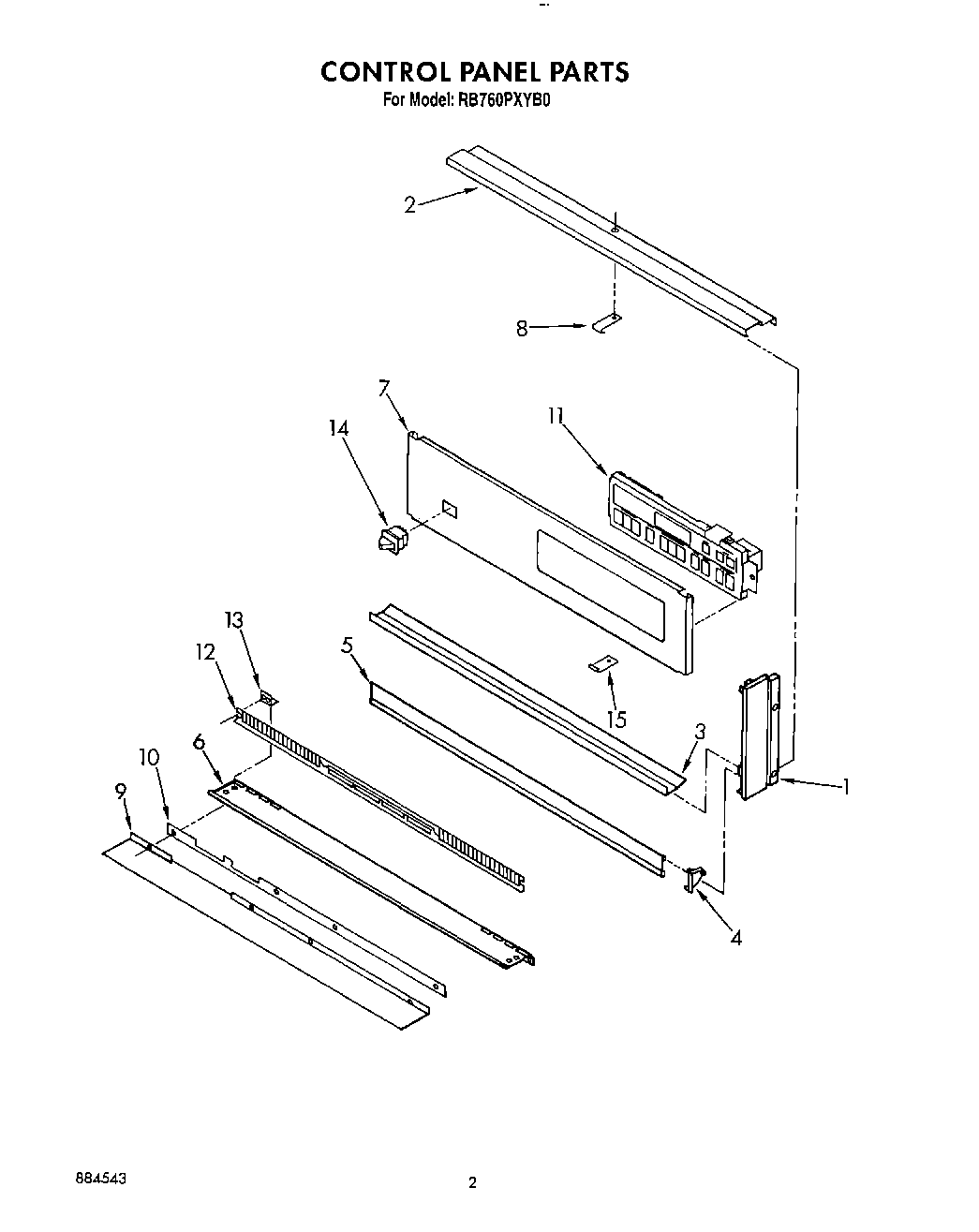

RB760PXYB0 02 – CONTROL PANEL, LIT/OPTIONALadmin2025-04-26T11:22:33+00:00RB760PXYB0 02 – CONTROL PANEL, LIT/OPTIONAL
Products
| Position | Product |
|---|
| WPL LIT884543 |
| Wire (14 Ga. 150 c Orange) |
| Wire (14 Ga. 150 c Green) |
| Wire (14 Ga. 150 c Brown) |
| Wire (14 Ga. 150 c Blue) |
| WP261869 Whirlpool Microwave Paint |
| 242831 Whirlpool Oven Wire |
| WP482338 Whirlpool Refrigerator Adhesive |
| 72032 Whirlpool Touch Up Paint Black |
| Wire (14 Ga. 150 c Yellow) |
| Wire (12 Ga. 150 c Black) |
| 18 Ga. 80~c Rating (Red) |
| Tech Sheet |
| Installation Instructions |
| Use & Care Guide |
| WPL 832985 |
| WPL 591014 |
| WPL 350806 |
| 1 |
| Wire (14 Ga. 200 c Brown) |
| 285006 Whirlpool Spray |
| Wire, 25`` Roll (White 14 GA.) |
| Golden Harvest |
| 72113 Whirlpool Touch-Up Paint |
| 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| Almond (Uncut) |
| Leveler (Thinner) |
| WP72107 Whirlpool Touchup |
| 799344 Whirlpool Refrigerator Paint |
| 350956 Whirlpool Spray Assembly |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| Golden Harvest (Uncut) |
| Toast |
| Paint, Spray (13 Oz.) (Platinum) |
| Wire, 25` Roll (Red 14 Ga.) |
| Wire, 25` Roll (Black 14 Ga.) |
| WPL 799832 |
| 350930 Whirlpool White Spray Paint |
| 350942 Whirlpool Spray Paint |
| WPL 72112 |
| Platinum (Uncut) |
| Enamal, Toast (1 Qt. Uncut) |
| 1 | End Cap (Left Hand) |
| 1 | End Cap (Right Hand) |
| 2 | Trim, Top |
| 2 | Screw (3) |
| 3 | Trim, Center (Black Model) |
| 3 | Trim, Center (White Model) |
| 4 | Door, Vent (Black Model) |
| 4 | Door, Vent (White Model) |
| 5 | End Trim, Vent (Left Side) |
| 5 | End Trim, Vent (Right Side) |
| 5 | Trim, Vent Door (Brite Aluminum, L.H.) |
| 5 | Trim, Vent Door (Brite Aluminum, R.H.) |
| 6 | Screw, 10-32 x 1/2 |
| 6 | Trim, Bottom (Black Model) |
| 6 | Trim, Bottom (White Model) |
| 7 | Control Panel (White Model) |
| 7 | Control Panel (Black Model) |
| 8 | Stiffener, Bracket |
| 8 | panel, top (screw, 10a x 3/8 (3)) |
| 9 | Trim, Vent Upper (White Model) |
| 9 | Trim, Vent Upper (Black Model) |
| 10 | Shim |
| 11 | Control, Electronic (White) |
| 11 | Control, Electronic (Black) |
| 12 | Insert, Vent |
| 13 | WP90767 Whirlpool Screw |
| 13 | Bracket, Mounting |
| 14 | Switch, Rocker |
| 14 | Switch, Rocker (White) |
| 15 | Stiffner, Bracket |
| 15 | Screw |
