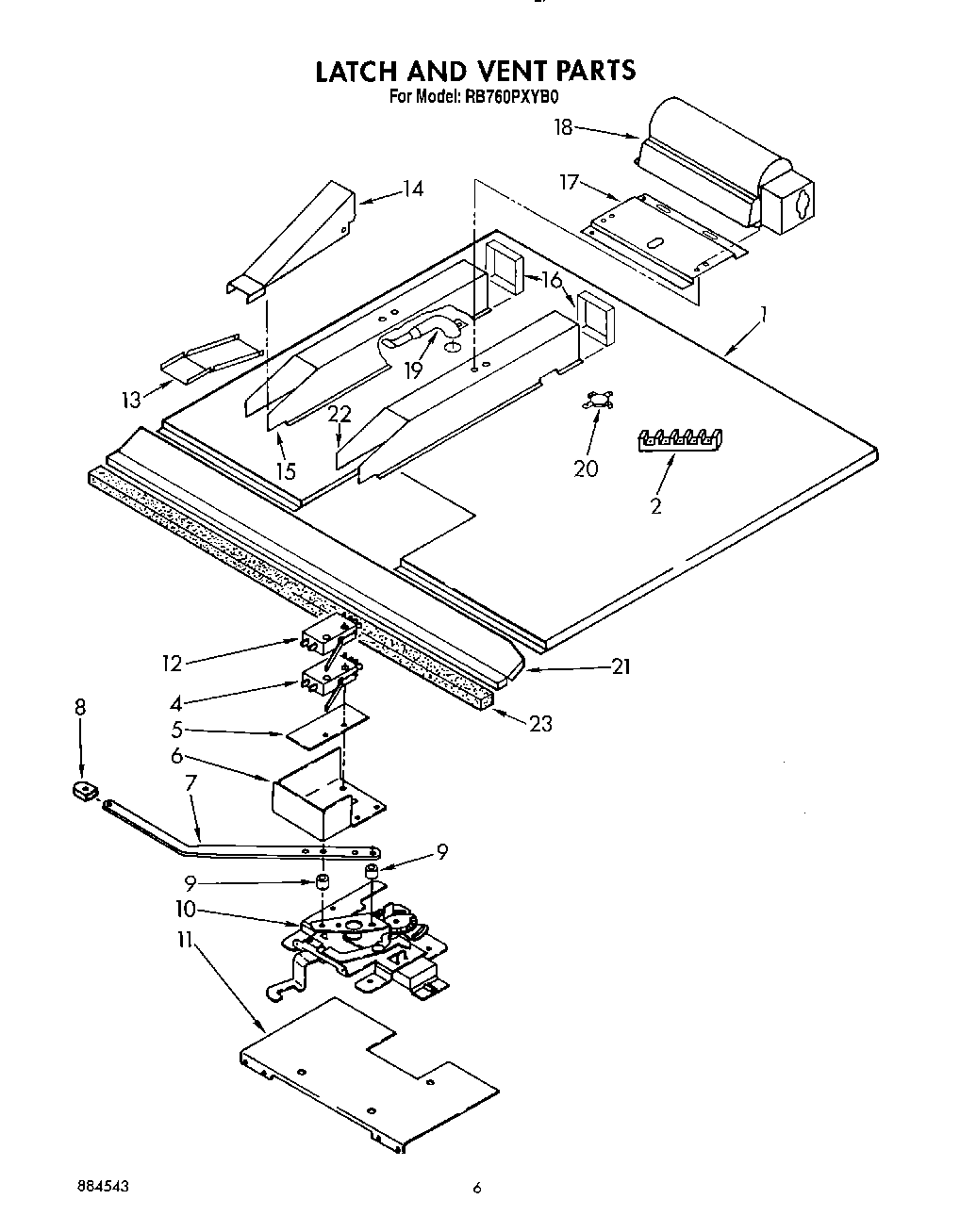

RB760PXYB0 05 – LATCH AND VENT

RB760PXYB0 05 – LATCH AND VENT

Written by

in

RB760PXYB0 05 – LATCH AND VENT

Products

PositionProduct
1Module, Top
2Screw (10-12 x .875)
2WP8203546 Whirlpool Terminal Block
4Screw (2)
4Switch, Latch
5Insulator, Switch
6Guard, Latch
7Handle, Latch
8Screw
8Knob, Latch Handle
9Spacer, Latch Handle (2)
9Screw (2)
10Latch, Mechanism
11Plate, Mounting
12Safety Switch
13Nozzle, Vent Bottom
14Nozzle, Vent Top
15Box, Vent
16End, Vent Box
17Bracket, Mounting
18Blower, fan
19Tube, Vent
20Fuse, Safety
20WP90767 Whirlpool Screw
21Shield, Heat
21WP3177991 Whirlpool Screw
22Box, Vent
23Seal, foam
