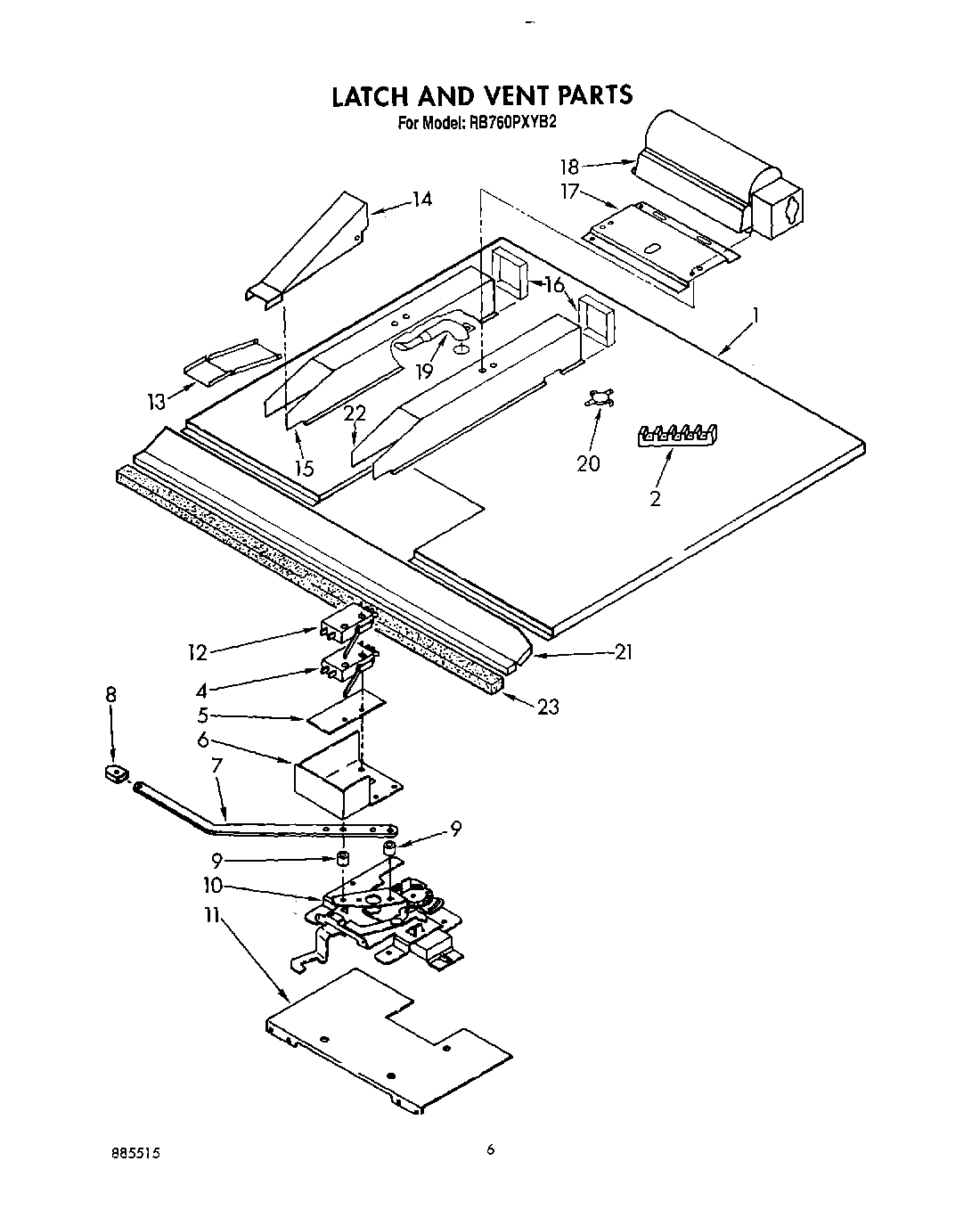

RB760PXYB2 06 – LATCH AND VENT, OPTIONAL

Written by

Products

Position	Product
1	Module, Top
2	Screw (10-12 x .875)
2	WP8203546 Whirlpool Terminal Block
4	Switch, Latch
4	Screw (2)
5	Insulator, Switch
6	Guard, Latch
7	Handle, Latch
8	Screw
8	Knob, Latch Handle
9	Screw (2)
9	Spacer, Latch Handle (2)
10	Latch, Mechanism
11	Plate, Mounting
12	Safety Switch
12	Screw
13	Nozzle, Vent Bottom
14	Nozzle, Vent Top
15	Box, Vent
16	End, Vent Box
17	Bracket, Mounting
18	Blower, fan
19	Tube, Vent
20	WP90767 Whirlpool Screw
20	SPST Thermostat
21	Shield, Heat
21	WP3177991 Whirlpool Screw
22	Box, Vent
23	18 Ga. 80~c Rating (Red)
23	Wire (14 Ga. 200 c Brown)
23	1
23	WPL 350806
23	WPL 591014
23	Seal, foam
23	350930 Whirlpool White Spray Paint
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 150 c Yellow)
23	Enamal, Toast (1 Qt. Uncut)
23	Paint, Spray (13 Oz.) (Platinum)
23	Toast
23	Golden Harvest (Uncut)
23	Golden Harvest
23	72113 Whirlpool Touch-Up Paint
23	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
23	Almond (Uncut)
23	Leveler (Thinner)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	Platinum (Uncut)
23	WPL 72112
23	350942 Whirlpool Spray Paint
23	Wire (14 Ga. 150 c Orange)
23	Wire (14 Ga. 150 c Green)
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Blue)
23	WP261869 Whirlpool Microwave Paint
23	242831 Whirlpool Oven Wire
23	WP482338 Whirlpool Refrigerator Adhesive
23	72032 Whirlpool Touch Up Paint Black
23	285006 Whirlpool Spray
23	Wire, 25“ Roll (White 14 GA.)
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25` Roll (Black 14 Ga.)
23	350956 Whirlpool Spray Assembly
