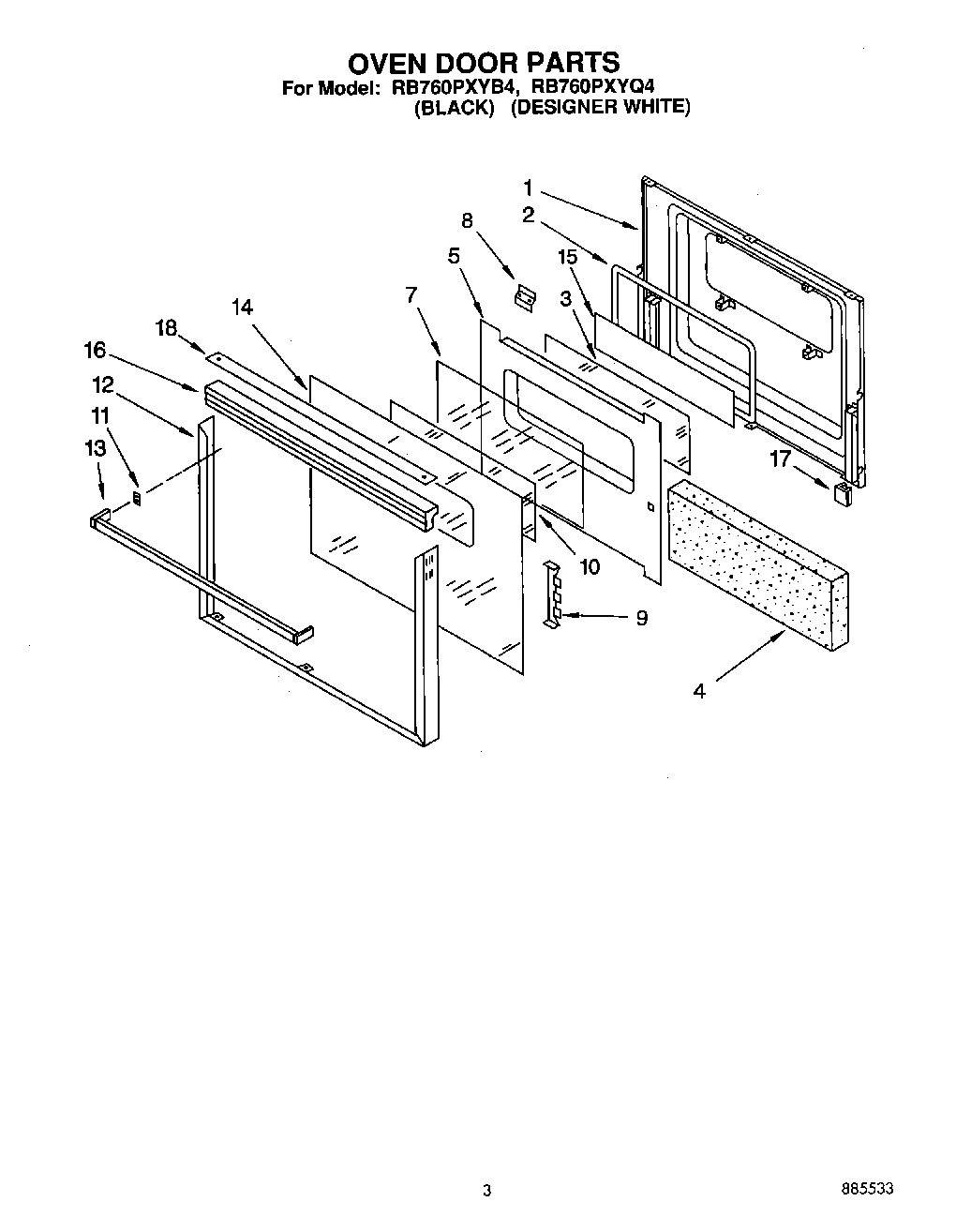

RB760PXYB4 02 – OVEN DOORadmin2025-04-26T11:22:33+00:00RB760PXYB4 02 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 2 | Seal, Window |
| 3 | Glass, Clear |
| 4 | Insulation, Door |
| 5 | Retainer, Insulation |
| 7 | Glass, Reflective |
| 8 | Latch, Strike |
| 9 | Retainer, Glass |
| 10 | Glass, Clear |
| 11 | Screw, Black (2) |
| 11 | Clip, Mtg (2) |
| 12 | Frame, Door |
| 13 | WP355515 Whirlpool Screw |
| 13 | Handle, Door |
| 13 | Screw |
| 13 | Handle, Door (White Model) |
| 13 | Screw (5) |
| 14 | Screw |
| 14 | Glass, Door |
| 14 | Glass, Door (White Model) |
| 15 | Foil, Adhesive |
| 15 | Screw, (2) |
| 16 | Trim, Door (Black Model) |
| 16 | Trim, Door (White Model) |
| 17 | Bumper, Door Glass |
| 18 | Cap, Top (White Model Only) |
