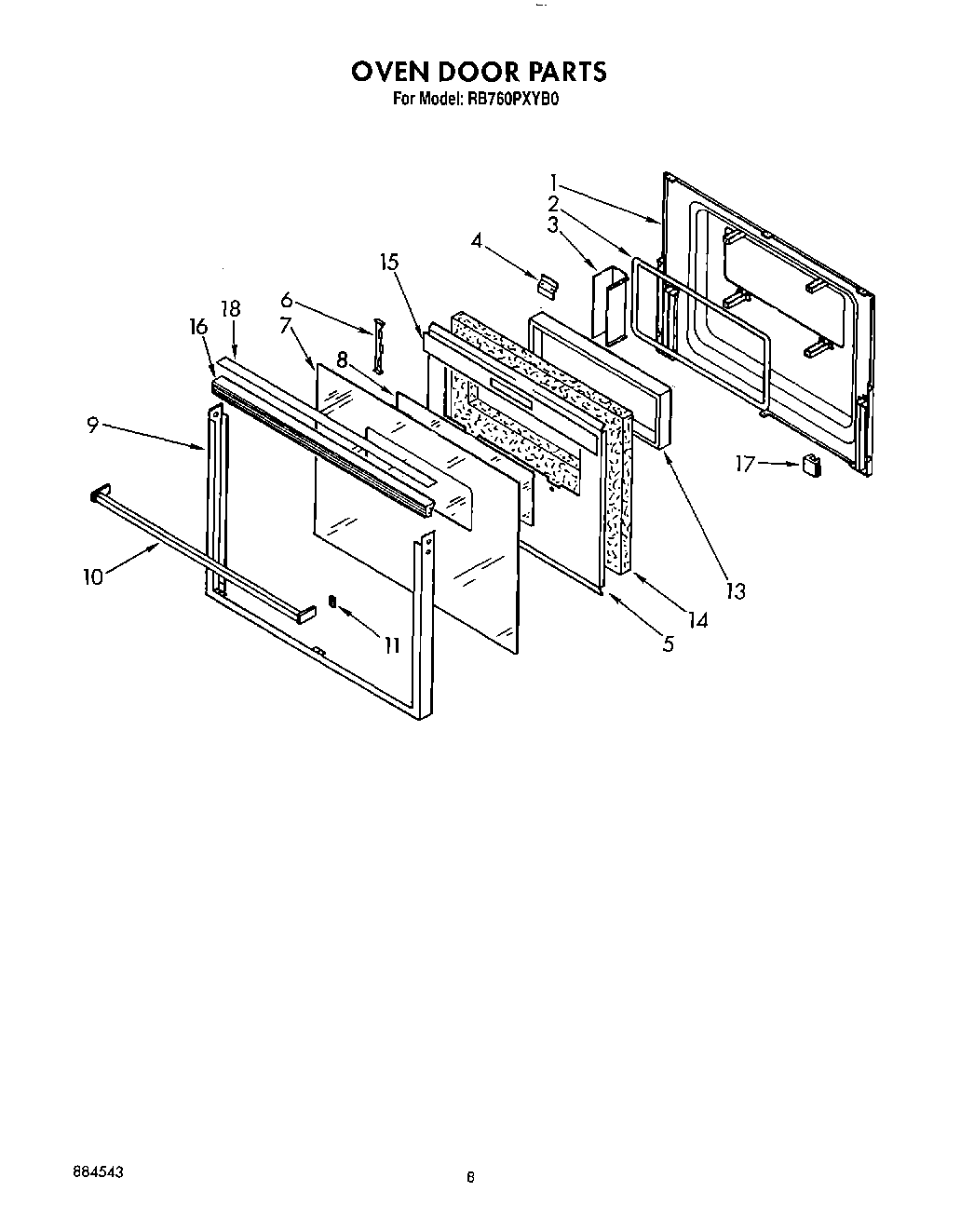

RB760PXYQ0 06 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Insulation, Retainer
6	Bracket, Glass Mtg.
7	Glass, Door (White Model)
7	Glass, Door
8	Glass, Reflective
9	Frame, Door
10	Screw
10	WP355515 Whirlpool Screw
10	Handle, Door (White Model)
10	Handle, Door
11	Clip, Mtg (2)
11	Screw, Black (2)
13	Window Package
14	Vent, Lower Trim (Screw (2))
14	Insulation, Door
15	Shield, Door
15	WP90767 Whirlpool Screw
16	Trim, Door
16	Trim, Door (White Model)
17	Bumper, Door Glass
18	Cap, Top (White Model Only)
