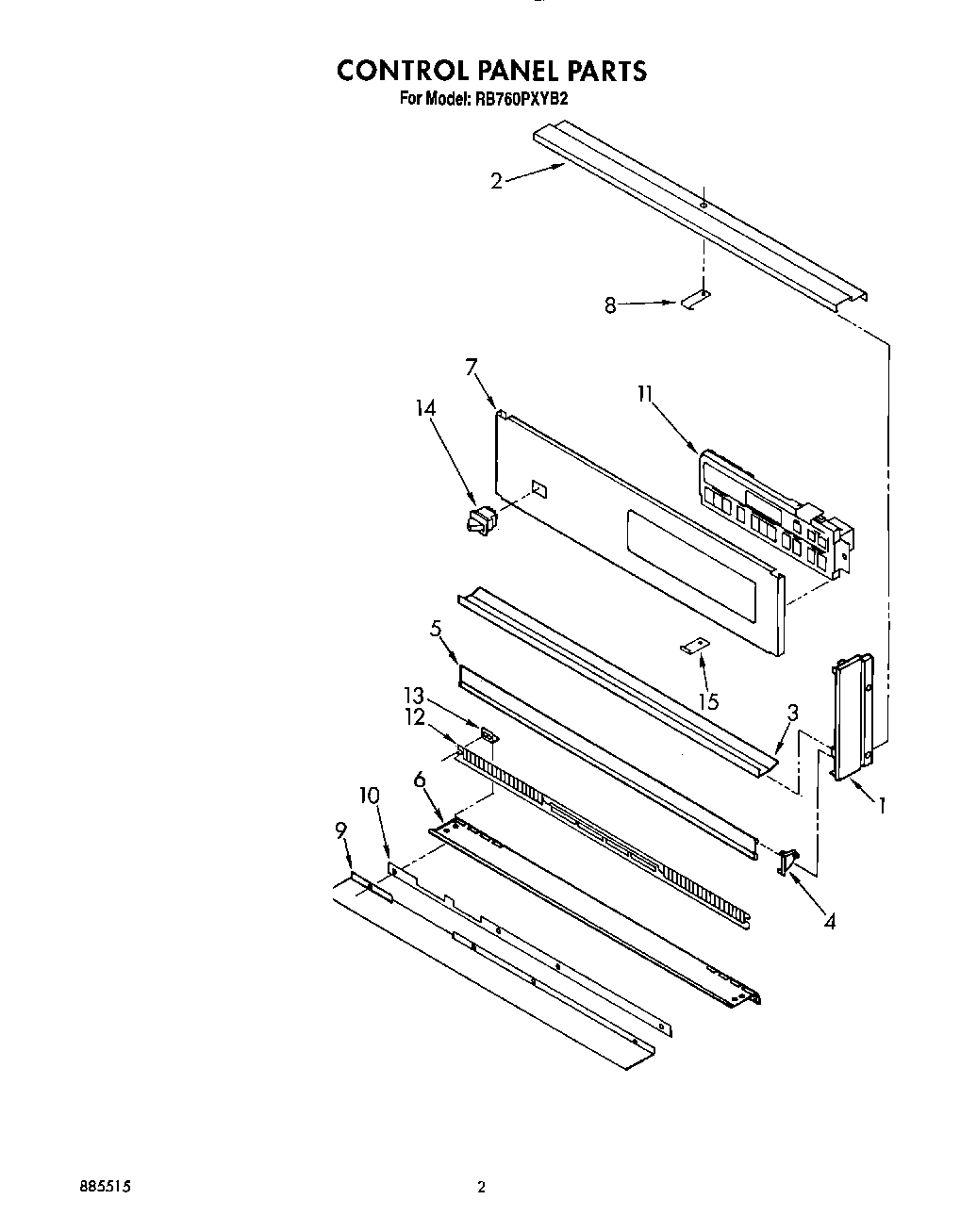

RB760PXYQ2 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	Use & Care Guide
	Installation Instructions
	Tech Sheet
	Repair Parts List
1	End Cap (Right Hand)
1	End Cap (Left Hand)
2	Trim, Top
2	Screw (3)
3	Trim, Center (White Model)
3	Trim, Center (Black Model)
4	Door, Vent (White Model)
4	Door, Vent (Black Model)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Screw, 10-32 x 1/2
6	Trim, Bottom (White Model)
6	Trim, Bottom (Black Model)
7	Control Panel (Black Model)
7	Control Panel (White Model)
8	Stiffener, Bracket
8	panel, top (screw, 10a x 3/8 (3))
9	Trim, Vent Upper (Black Model)
9	Trim, Vent Upper (White Model)
10	Shim
11	Control, Electronic (Black)
11	Control, Electronic (White)
12	Insert, Vent
13	WP90767 Whirlpool Screw
13	Bracket, Mounting
14	Switch, Rocker (White)
14	Switch, Rocker
15	Screw
15	Stiffner, Bracket
