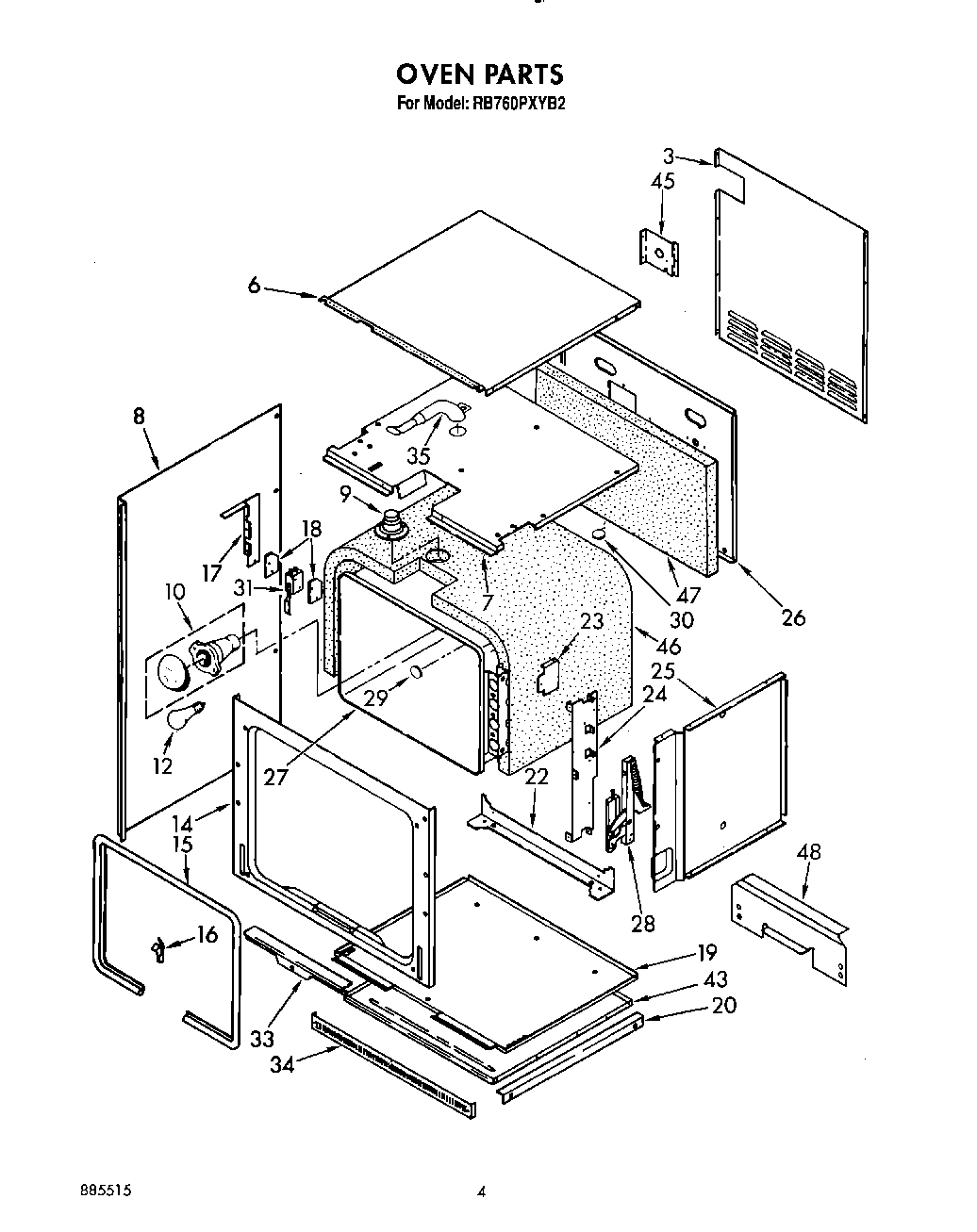

RB760PXYQ2 04 – OVEN

Products

Position	Product
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
29	Button, Plug
30	Button, Plug
31	Nut (2)
31	Screw (2)
31	Switch, Door
32	Insulator, Switch
33	Retainer, Seal
33	Screw (4)
34	Vent, Lower Trim (White)
34	Door, Latch Handle (Screw (2))
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Black)
35	WP90767 Whirlpool Screw
35	Tube, Vent
43	Bottom, Oven
45	Bracket, Conduit
46	Insulation, Oven
47	Insulation, Back
48	WPL 3183752
