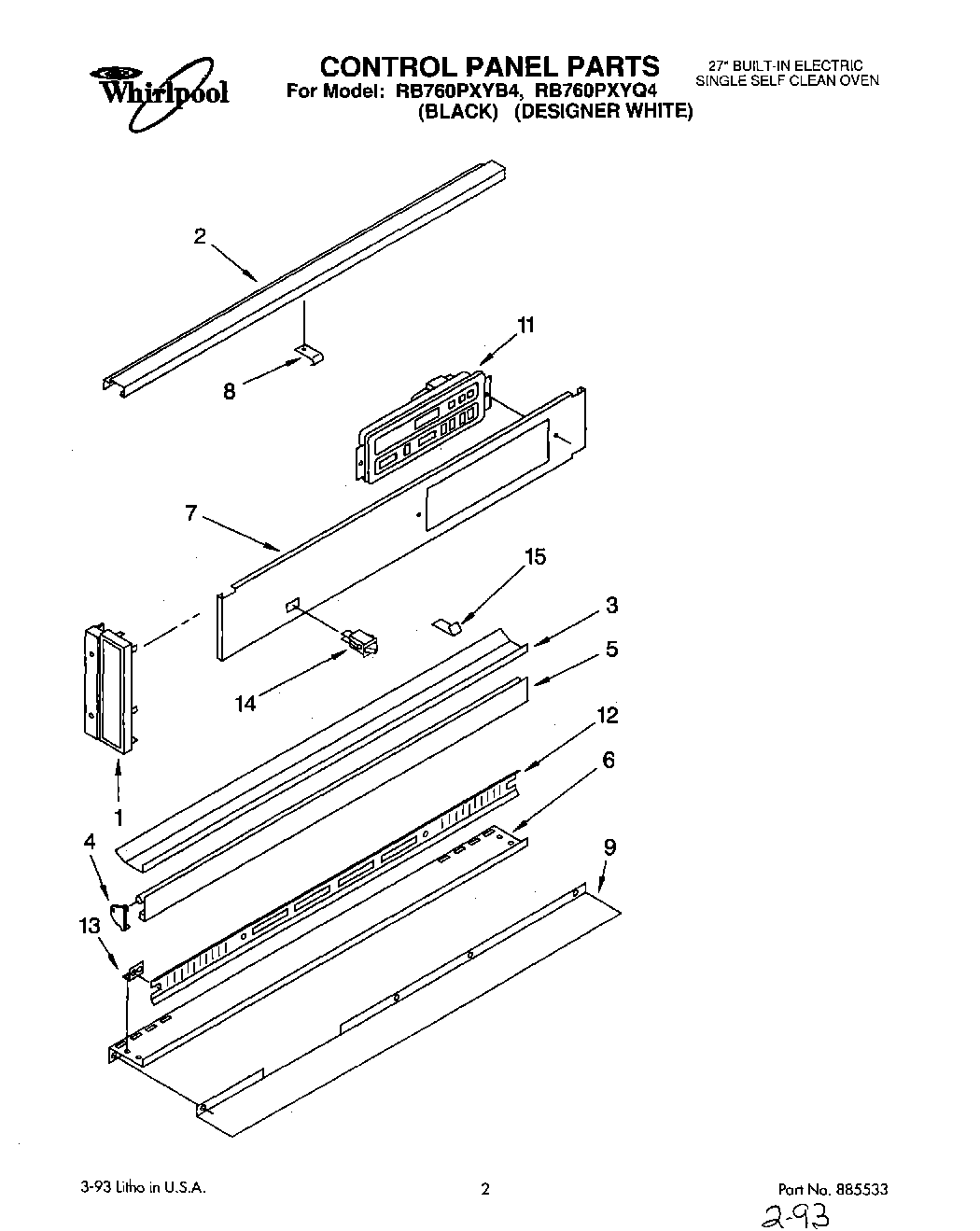

RB760PXYQ4 01 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	Installation Instructions
	Tech Sheet
	Brochure
	Use & Care Guide
1	End Cap (Left Hand)
1	End Cap (Right Hand)
2	Trim, Top
2	Screw (3)
3	Trim, Center (Black Model)
3	Trim, Center (White Model)
4	Door, Vent (White Model)
4	Door, Vent (Black Model)
5	End Trim, Vent (Right Side)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	End Trim, Vent (Left Side)
5	Trim, Vent Door (Brite Aluminum, L.H.)
6	Trim, Bottom (White Model)
6	Trim, Bottom (Black Model)
6	Screw, 10-32 x 1/2
7	Control Panel (Black Model)
7	Control Panel (White Model)
8	panel, top (screw, 10a x 3/8 (3))
8	Stiffener, Bracket
9	Trim, Vent Upper (Black Model)
9	Trim, Vent Upper (White Model)
11	Control, Electronic (White)
11	Control, Electronic (Black)
12	Insert, Vent
13	Bracket, Mounting
13	Screw
14	Switch, Rocker (White)
14	Switch, Rocker
15	Stiffner, Bracket
15	Screw, (2)
