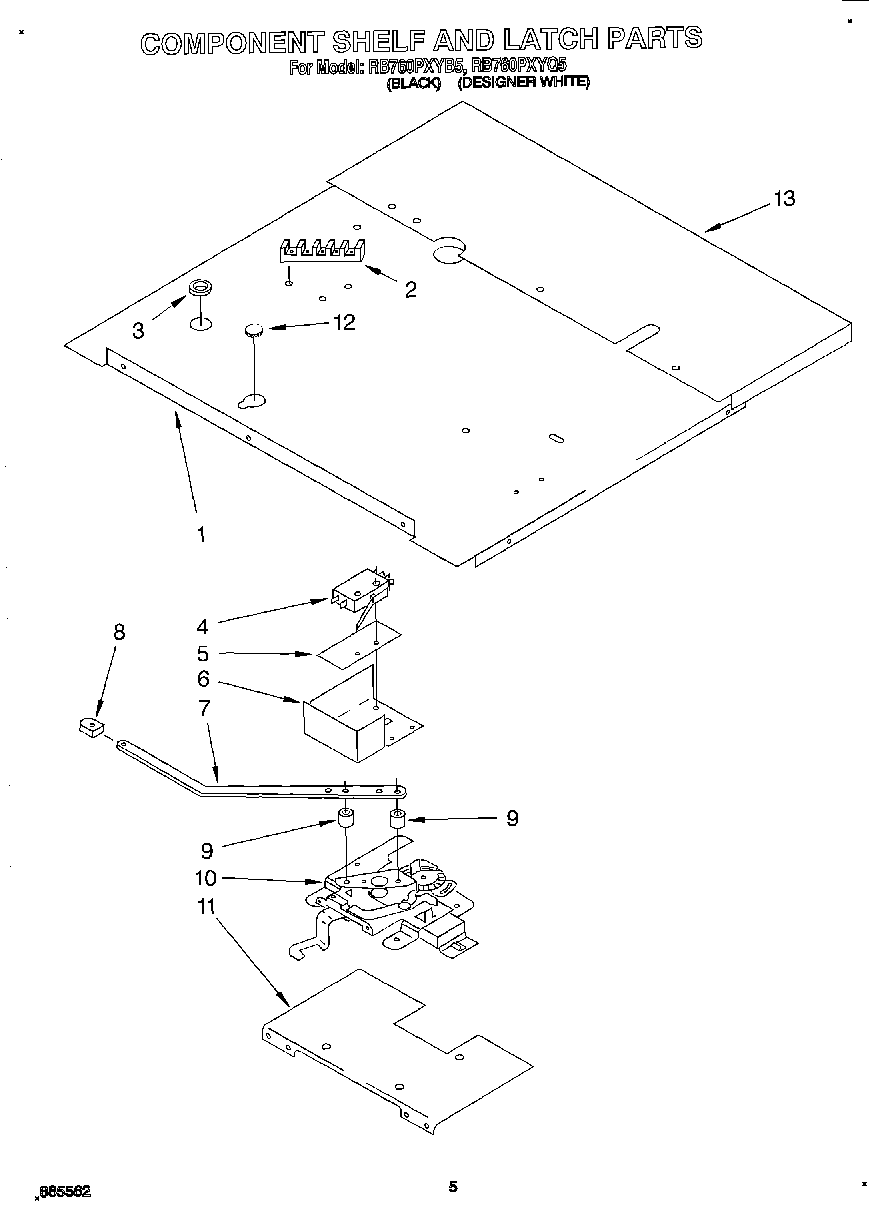

RB760PXYQ5 05 – COMPONENT SHELF AND LATCH

Products

PositionProduct
1Screw
1Shelf, Component
2Screw (10-12 x .875)
2WP8203546 Whirlpool Terminal Block
3Bushing
4Screw
4Safety Switch
5Insulator, Switch
6Guard, Latch
7Handle, Latch
8Screw
8Knob, Latch Handle
9Spacer, Latch Handle (2)
9Screw (2)
10Latch, Mechanism
11Plate, Mounting
12Plug, Button
13Extension, Shelf
13WP3177991 Whirlpool Screw
