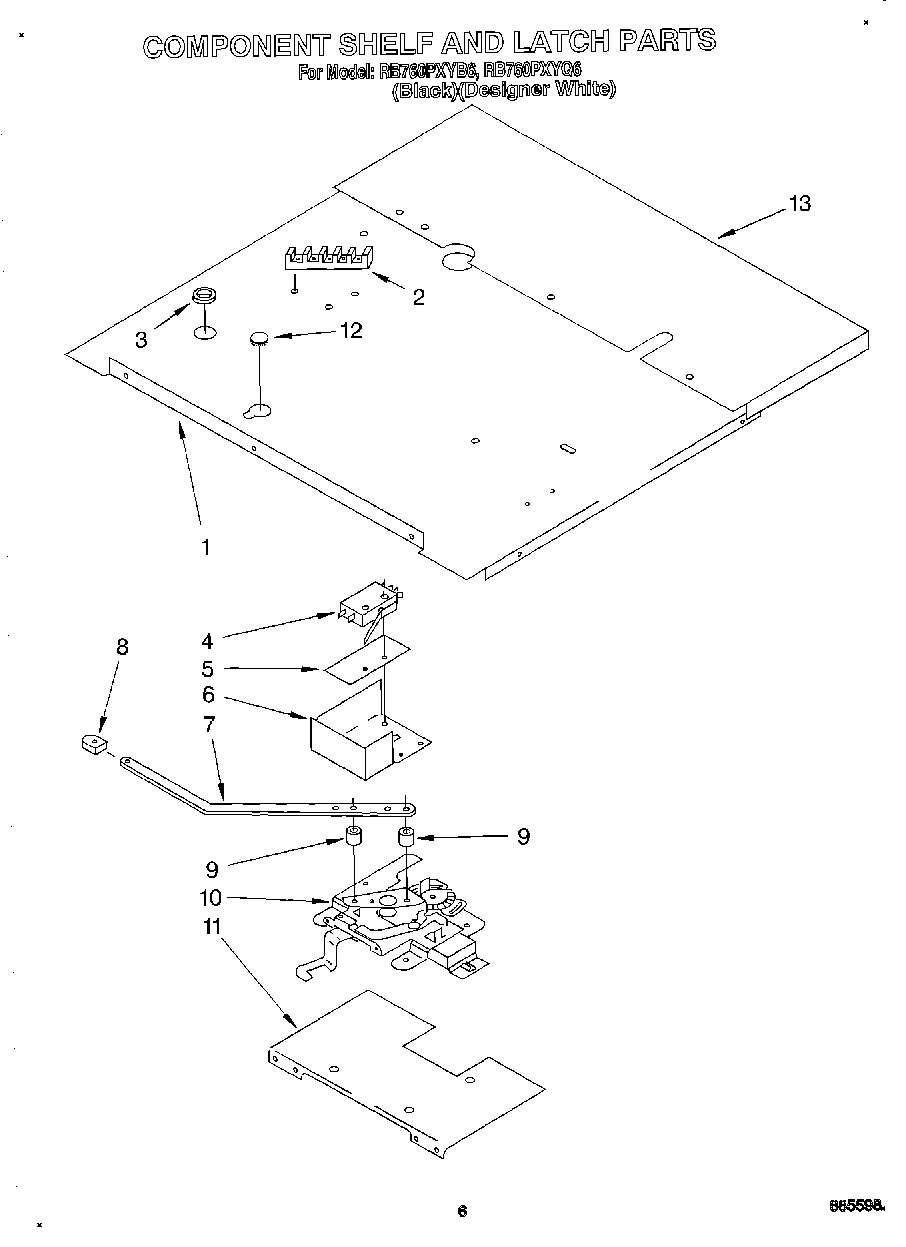

RB760PXYQ6 05 – COMPONENT SHELF AND LATCH

Products

PositionProduct
Screw (2)
1Shelf, Component
2Screw (10-12 x .875)
2WP8203546 Whirlpool Terminal Block
3Bushing
4Safety Switch
4Screw
5Insulator, Switch
6Guard, Latch
7Handle, Latch
8Screw
8Knob, Latch Handle
9Spacer, Latch Handle (2)
10Latch, Mechanism
11Plate, Mounting
12Plug, Button
13Extension, Shelf
13Screw
13WP3177991 Whirlpool Screw
