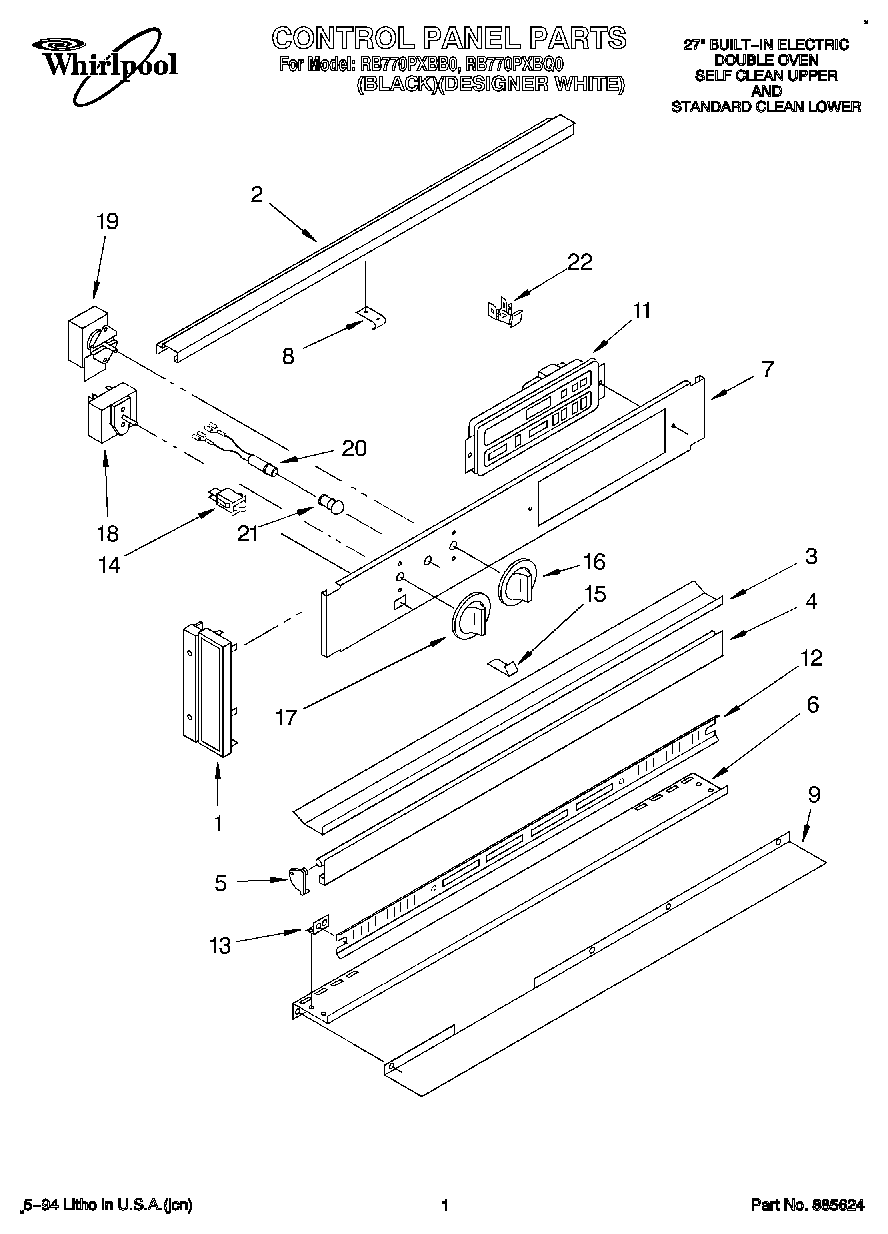

RB770PXBB0 01 – CONTROL PANEL, LITERATURE

Products

Position	Product
	WPL LIT3188184
	Installation Instructions
	WPL LIT3186642
1	End Cap (Black Model, LH)
1	End Cap (Black Model, RH)
1	End Cap (White Model, LH)
1	End Cap (White Model, RH)
2	Trim, Top (White Model)
2	Trim, Top (Black Model)
3	Trim, Center (White Model)
3	Trim, Center (Black Model)
4	Door, Vent (White Model)
4	Door, Vent (Black Model)
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	Trim, Vent Door (Brite Aluminum, R.H.)
6	Trim, Bottom (Black Model)
6	Trim, Bottom (White Model)
6	Screw, 10-32 x 1/2
7	Control Panel (Black Model)
7	Control Panel (White Model)
8	Stiffener, Bracket
9	Trim, Vent Upper (Black Model)
9	Trim, Vent Upper (White Model)
11	Control, Electronic (White)
11	Control, Electronic (Black)
12	Insert, Vent
12	Screw
13	Screw (2)
13	Bracket, Mounting
14	Switch, Rocker (White)
14	Switch, Rocker
15	Stiffner, Bracket
15	Back Splash (Screw (4) 10AB x 1/2“)
16	Knob, Thermostat
16	Knob, Temperature (Designer Mdl)
17	Knob, Selector (White/Almond/Gold)
17	Knob, Selector (Designer Mdl)
18	Switch, Selector
18	WP486579 Whirlpool Air Conditioner Screw
19	Screw (2)
19	Therm
20	Light, Indicator (250V)
21	Screw
21	Lens, Amber
22	W10113937 Whirlpool Clamp
