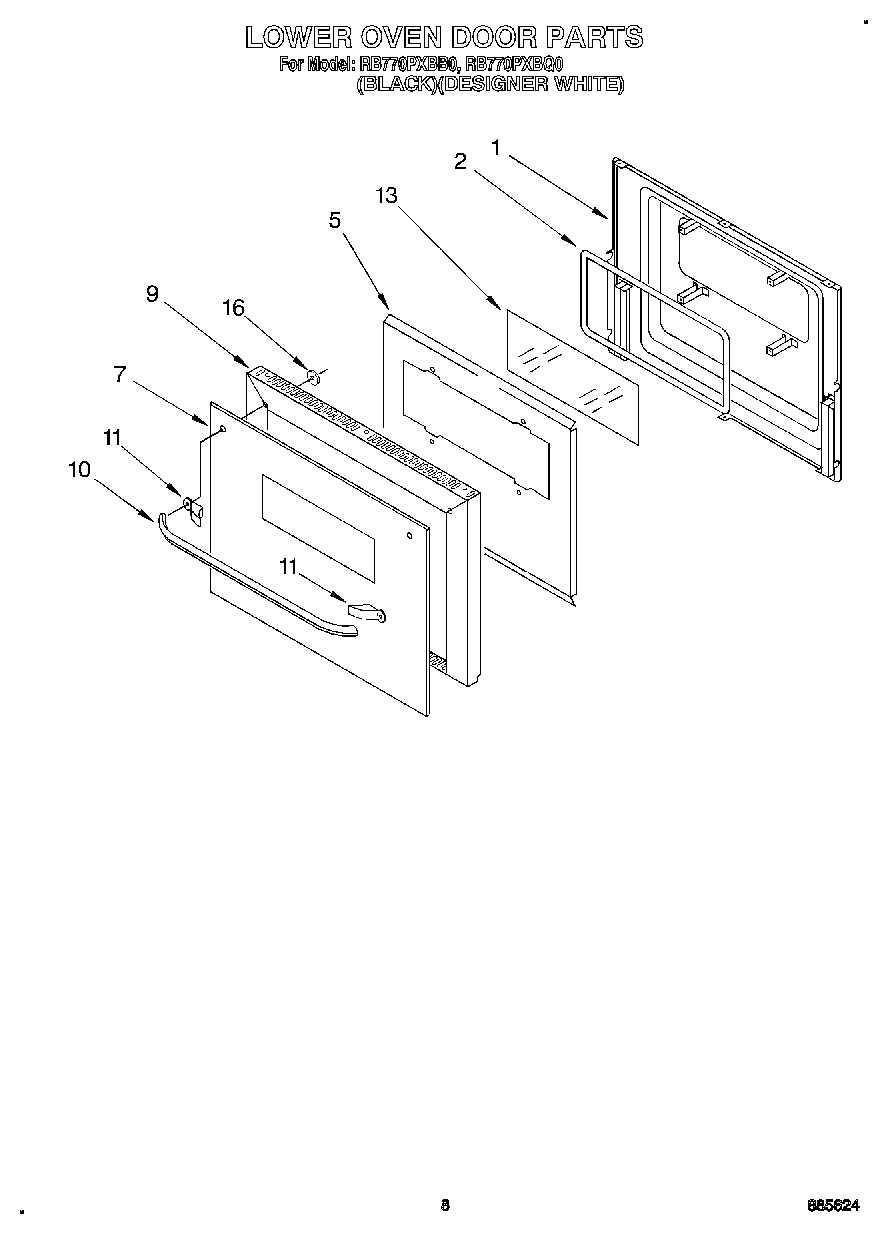

RB770PXBB0 05 – LOWER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
5	Retainer, Insulation
7	Glass, Door (White Model)
7	Glass, Door (Black Model)
9	Frame, Door (White Model)
9	Frame, Door (Black Model)
10	Handle, Door (Black Model)
10	Handle, Door (White Model)
10	Screw
10	WP355515 Whirlpool Screw
10	Vent, Lower Trim (Screw (2))
11	Spacer (White Model)
11	Spacer (Black Model)
13	Glass, Clear
16	Screw (2)
16	Bushing, Door Handle
