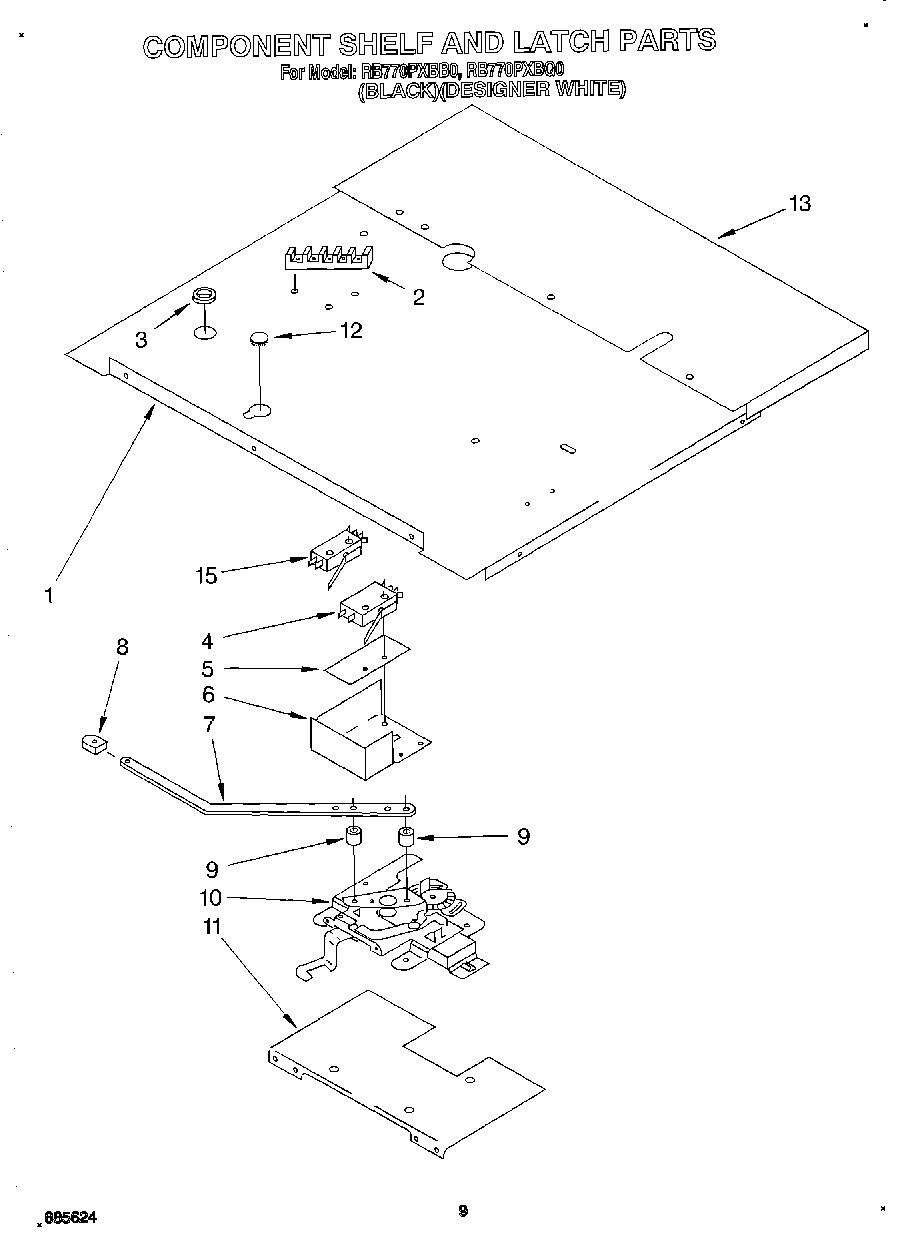

RB770PXBB0 06 – COMPONENT SHELF AND LATCH

Products

PositionProduct
1Shelf, Component
2Screw (10-12 x .875)
2WP8203546 Whirlpool Terminal Block
3Bushing
4Safety Switch
5Insulator, Switch
6Screw,
6Guard, Latch
7Handle, Latch
8Screw
8Knob, Latch Handle
9Spacer, Latch Handle (2)
9Screw (2)
10Latch, Mechanism
11Plate, Mounting
11Screw, 8-18 X 3/4 (4)
12Plug, Button
13Screw
13Extension, Shelf
13WP3177991 Whirlpool Screw
15Screw (2)
15Switch, Latch
