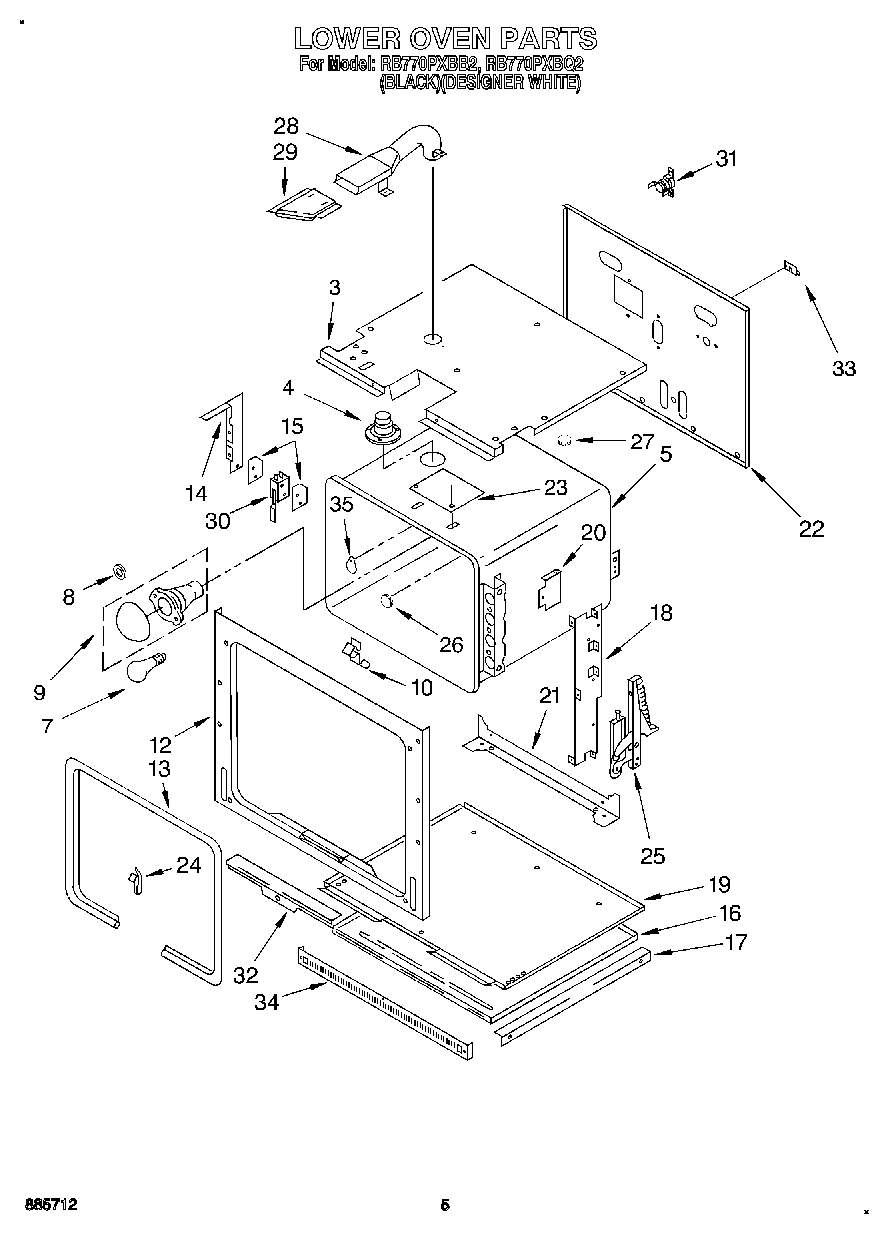

RB770PXBB2 03 – LOWER OVEN

Products

Position	Product
3	Module, Top
4	Eliminator, Smoke
5	Liner, Oven
7	RANGE ONLY 40W 120V APPL BULB
8	WP3184533 Whirlpool Range Light Lens Gasket
9	W11594027 Whirlpool Range Oven Light Socket
10	98005642 Whirlpool Clip
12	Frame, Front
13	Seal, Door
14	Bracket, Switch
14	WP3177991 Whirlpool Screw
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
21	Support, Oven
22	Back, Module
23	Cover, Latch Mtg.
24	Clip, Oven Seal
25	Hinge, Door
25	Screw (6)
26	Button, Plug
27	Button, Plug
28	Tube, Vent Male
29	Tube, Vent (Female)
29	Tube, Vent Female
30	Switch, Door
30	Nut (2)
30	Screw (2)
31	Thermostat
31	Screw
32	Screw (4)
32	Vent, Lower Trim (Screw (2))
32	Retainer, Seal
33	Screw
33	Cover, Cap Tube
34	Vent, Lower Trim (Black)
34	Trim, Lower Vent (White Model)
35	Screw (2)
35	Insulation, Back
35	Plate, Cover
35	Insulation, Oven
