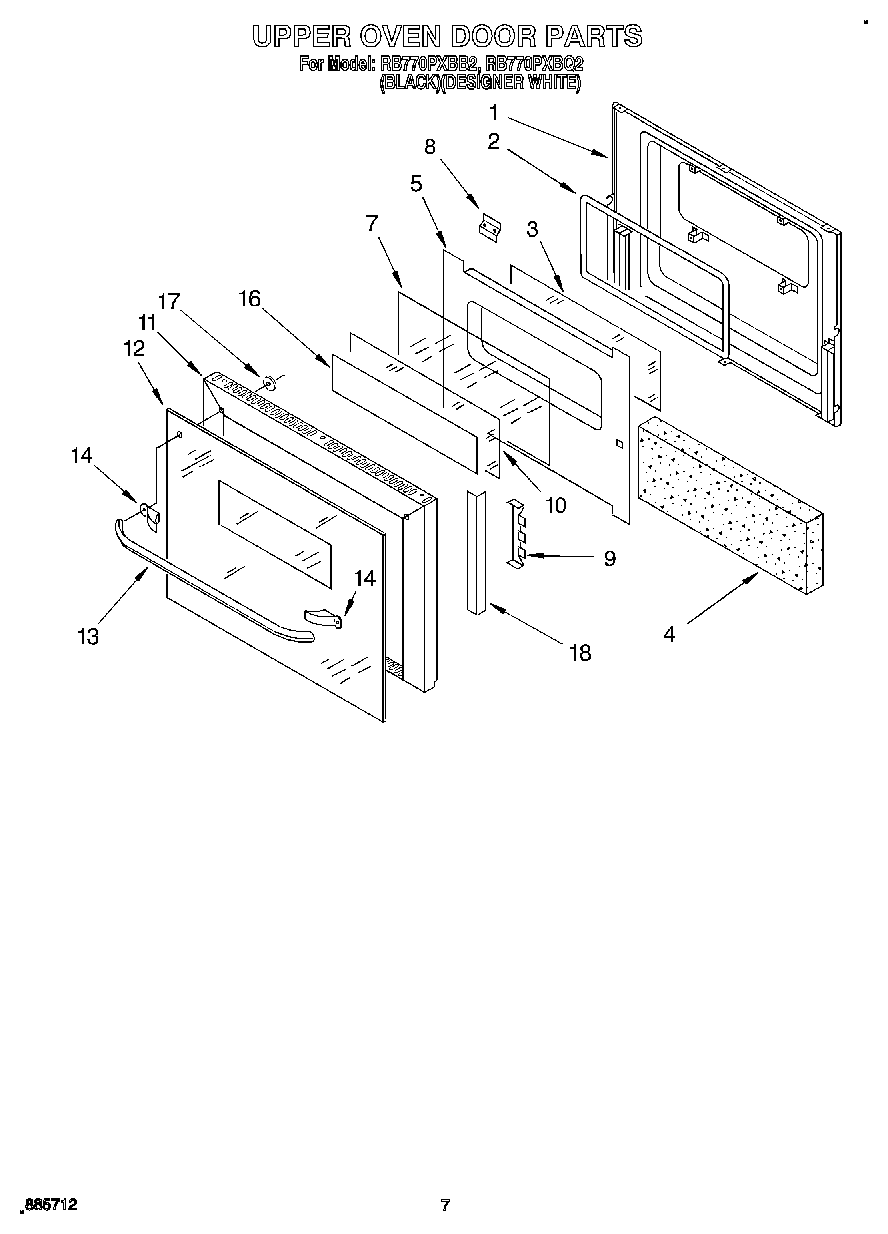

RB770PXBB2 04 – UPPER OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
2Seal, Window
3Glass, Clear
4Insulation, Door
5Retainer, Insulation
7Glass, Reflective
8Latch, Strike
9Retainer, Glass
10Glass, Clear
10Screw
11Frame, Door (Black Model)
11Frame, Door (White Model)
12Glass, Door (White Model)
12Glass, Door (Black Model)
13Handle, Door (White Model)
13Handle, Door (Black Model)
13WP355515 Whirlpool Screw
14Spacer (Black Model)
14Spacer (White Model)
16Screw
16Foil, Adhesive
17Screw (2)
17Bushing, Door Handle
18Foil-Adhesive
