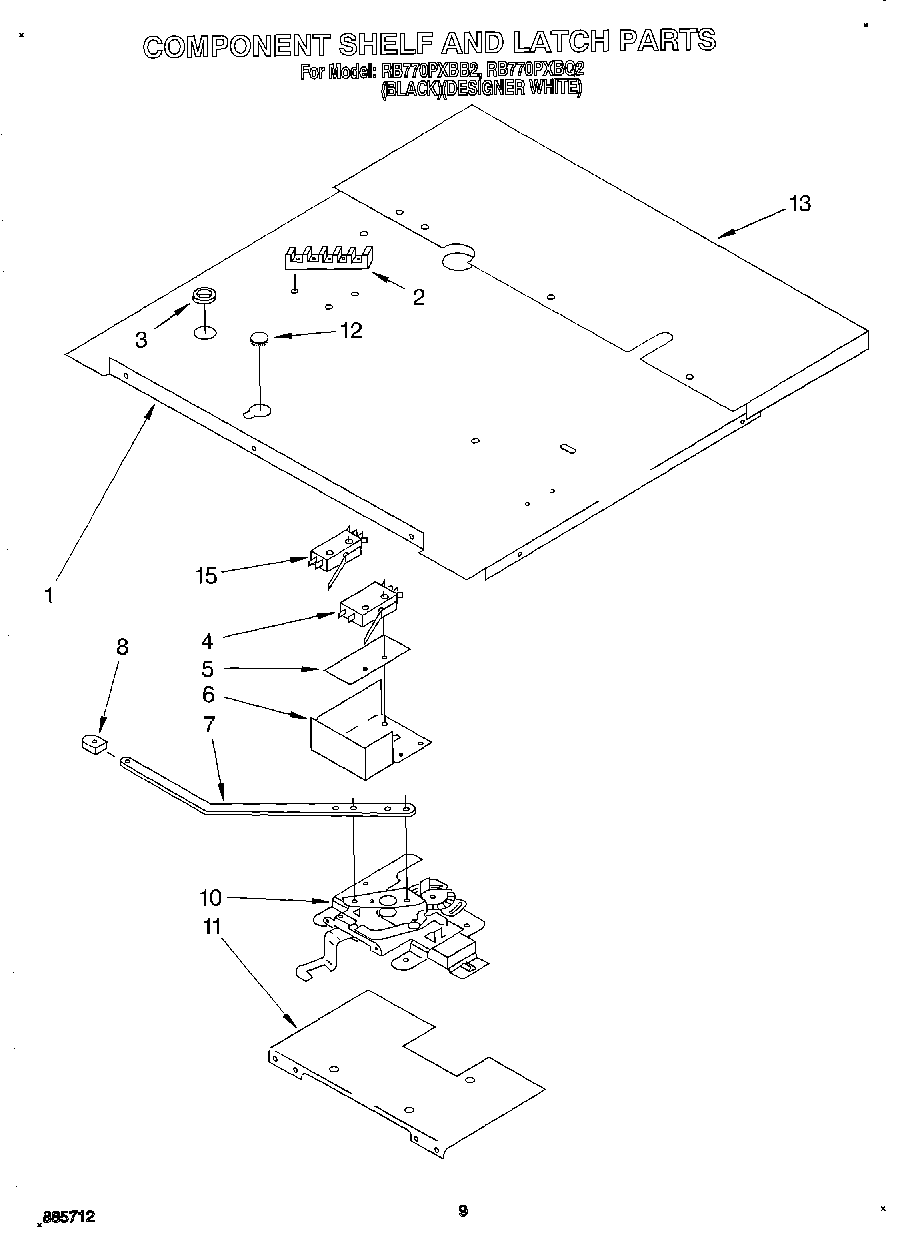

RB770PXBB2 06 – COMPONENT SHELF AND LATCH

RB770PXBB2 06 – COMPONENT SHELF AND LATCH

Written by

in

RB770PXBB2 06 – COMPONENT SHELF AND LATCH

Products

PositionProduct
1Shelf, Component
2WP8203546 Whirlpool Terminal Block
2Screw (10-12 x .875)
3Bushing
4Safety Switch
5Insulator, Switch
6Guard, Latch
6Screw,
7Handle, Latch
7Screw
8Screw (2)
8Knob, Latch Handle
8Screw
10Latch, Mechanism
11Plate, Mounting
11Screw, 8-18 X 3/4 (4)
12Plug, Button
13Screw
13Extension, Shelf
13WP3177991 Whirlpool Screw
15Screw (2)
15Switch, Latch
