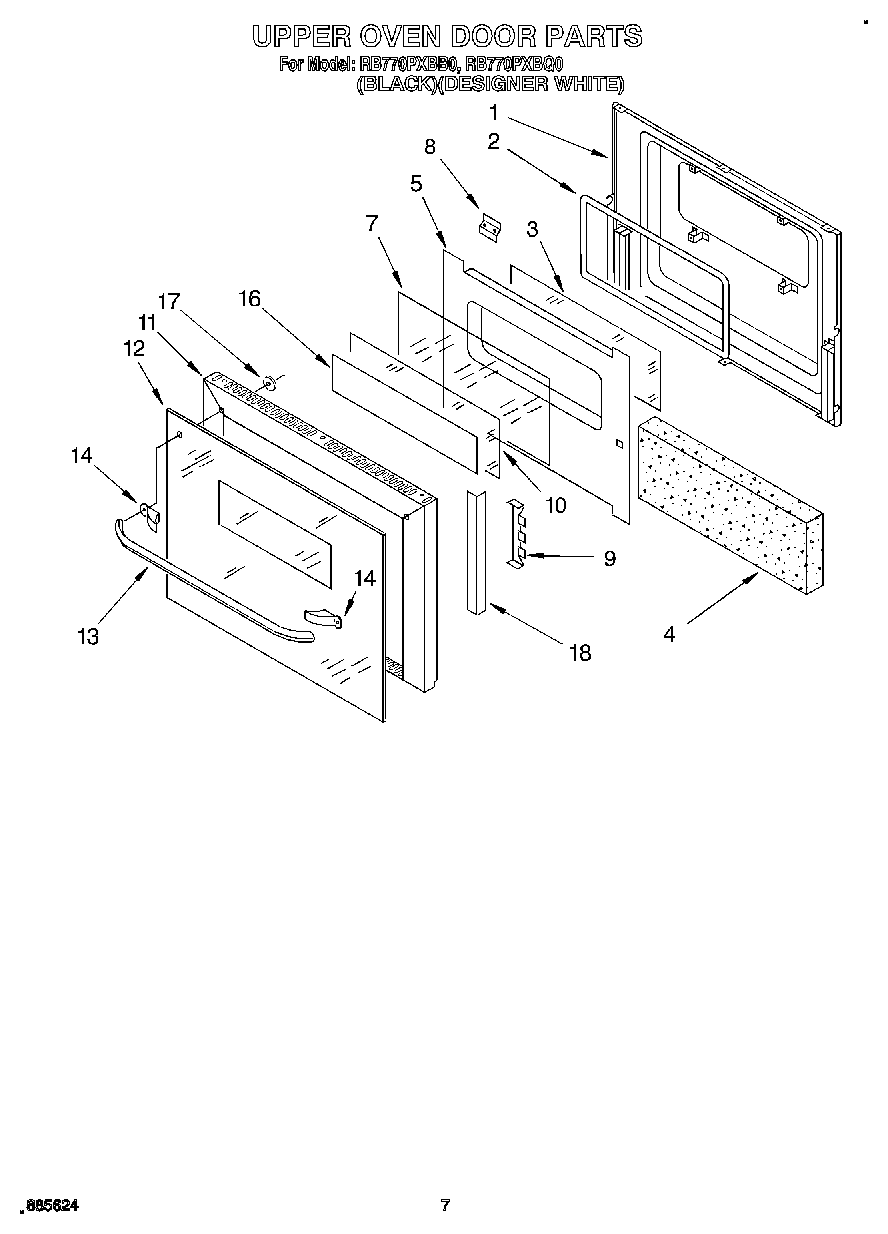

RB770PXBQ0 04 – UPPER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Vent, Lower Trim (Screw (2))
5	Retainer, Insulation
7	Glass, Reflective
8	Latch, Strike
9	Retainer, Glass
10	Glass, Clear
10	Screw
11	Frame, Door (Black Model)
11	Frame, Door (White Model)
12	Glass, Door (White Model)
12	Glass, Door (Black Model)
13	Handle, Door (Black Model)
13	Handle, Door (White Model)
13	WP355515 Whirlpool Screw
14	Spacer (White Model)
14	Spacer (Black Model)
16	Foil, Adhesive
17	Screw (2)
17	Bushing, Door Handle
18	Foil-Adhesive
