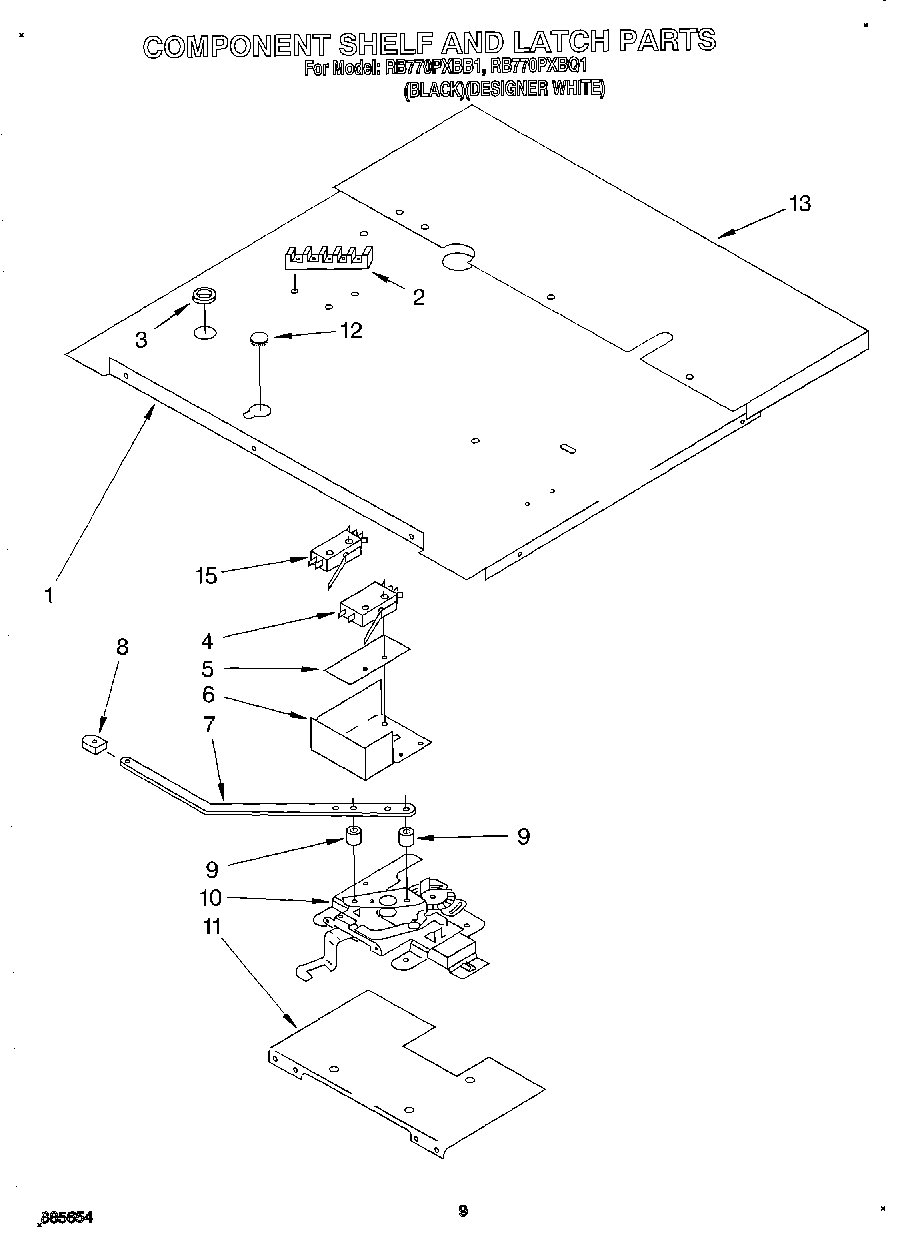

RB770PXBQ1 06 – COMPONENT SHELF AND LATCH

Products

Position	Product
1	Shelf, Component
2	Screw (10-12 x .875)
2	WP8203546 Whirlpool Terminal Block
3	Bushing
4	Safety Switch
5	Insulator, Switch
6	Screw,
6	Guard, Latch
7	Handle, Latch
8	Screw
8	Knob, Latch Handle
9	Spacer, Latch Handle (2)
9	Screw (2)
10	Latch, Mechanism
11	Plate, Mounting
11	Screw, 8-18 X 3/4 (4)
12	Plug, Button
13	Screw
13	Extension, Shelf
13	WP3177991 Whirlpool Screw
15	Screw (2)
15	Switch, Latch
