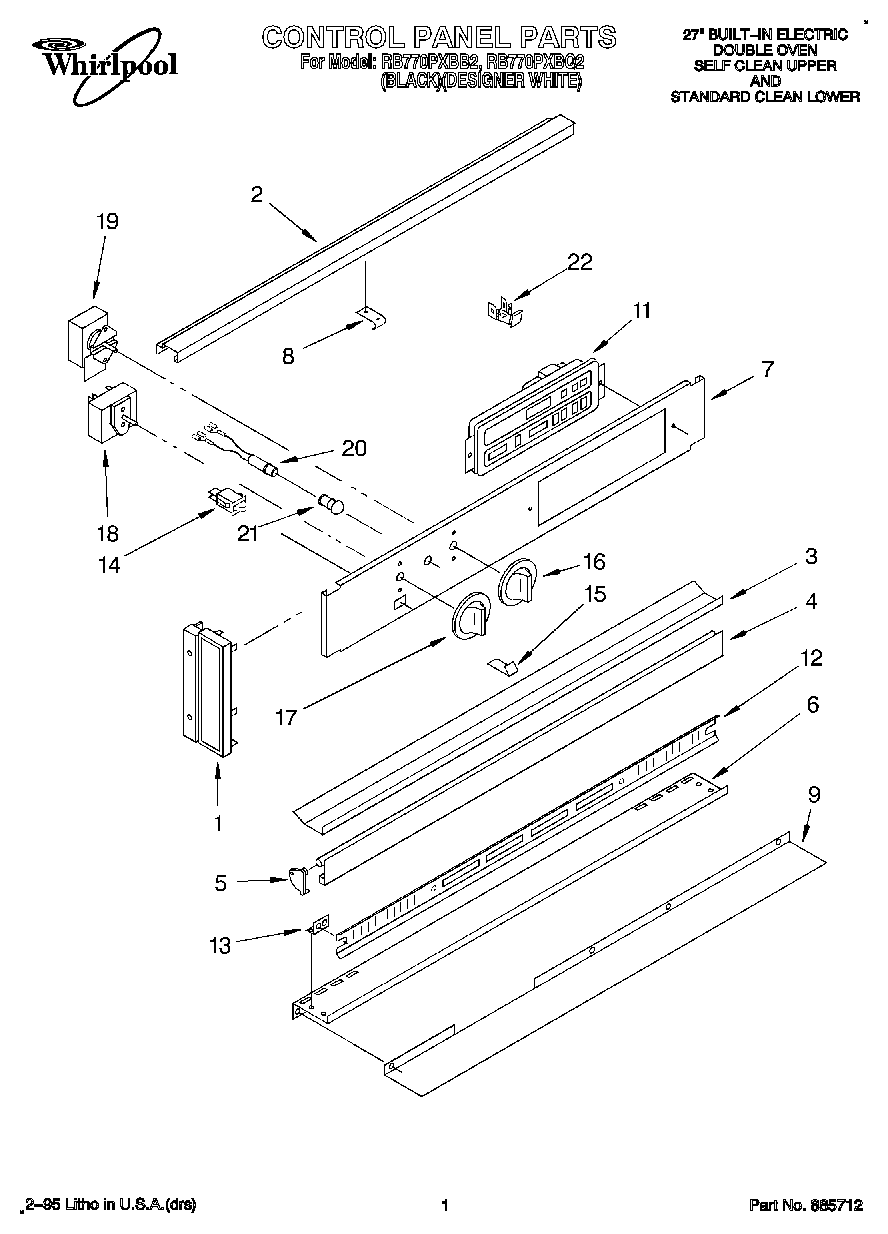

RB770PXBQ2 01 – CONTROL PANEL, LITERATUREadmin2025-04-26T11:21:52+00:00RB770PXBQ2 01 – CONTROL PANEL, LITERATURE
Products
| Position | Product |
|---|
| Installation Instructions |
| WPL LIT3186642 |
| WPL LIT3188184 |
| Brochure |
| 1 | End Cap (Black Model, LH) |
| 1 | End Cap (White Model, LH) |
| 1 | End Cap (White Model, RH) |
| 1 | End Cap (Black Model, RH) |
| 2 | Trim, Top (White Model) |
| 2 | Trim, Top (Black Model) |
| 3 | Trim, Center (Black Model) |
| 3 | Trim, Center (White Model) |
| 4 | Door, Vent (Black Model) |
| 4 | Door, Vent (White Model) |
| 5 | Trim, Vent Door (Brite Aluminum, R.H.) |
| 5 | Trim, Vent Door (Brite Aluminum, L.H.) |
| 5 | End Trim, Vent (Left Side) |
| 5 | End Trim, Vent (Right Side) |
| 6 | Trim, Bottom (White Model) |
| 6 | Screw, 10-32 x 1/2 |
| 6 | Trim, Bottom (Black Model) |
| 7 | Control Panel (White Model) |
| 7 | Control Panel (Black Model) |
| 8 | Stiffener, Bracket |
| 9 | Trim, Vent Upper (White Model) |
| 9 | Trim, Vent Upper (Black Model) |
| 11 | Control, Electronic (White) |
| 11 | Control, Electronic (Black) |
| 12 | Insert, Vent |
| 12 | Screw |
| 13 | Bracket, Mounting |
| 13 | Screw (2) |
| 14 | Switch, Rocker |
| 14 | Switch, Rocker (White) |
| 15 | Stiffner, Bracket |
| 15 | WP965173 Whirlpool Dishwasher Screw |
| 15 | Back Splash (Screw (4) 10AB x 1/2``) |
| 16 | Knob, Thermostat |
| 16 | Knob, Temperature (Designer Mdl) |
| 17 | Knob, Selector (White/Almond/Gold) |
| 17 | Knob, Selector (Designer Mdl) |
| 18 | Switch, Selector |
| 18 | WP486579 Whirlpool Air Conditioner Screw |
| 19 | Screw |
| 19 | Therm |
| 20 | Light, Indicator (250V) |
| 21 | Screw |
| 21 | Lens, Amber |
| 22 | W10113937 Whirlpool Clamp |
