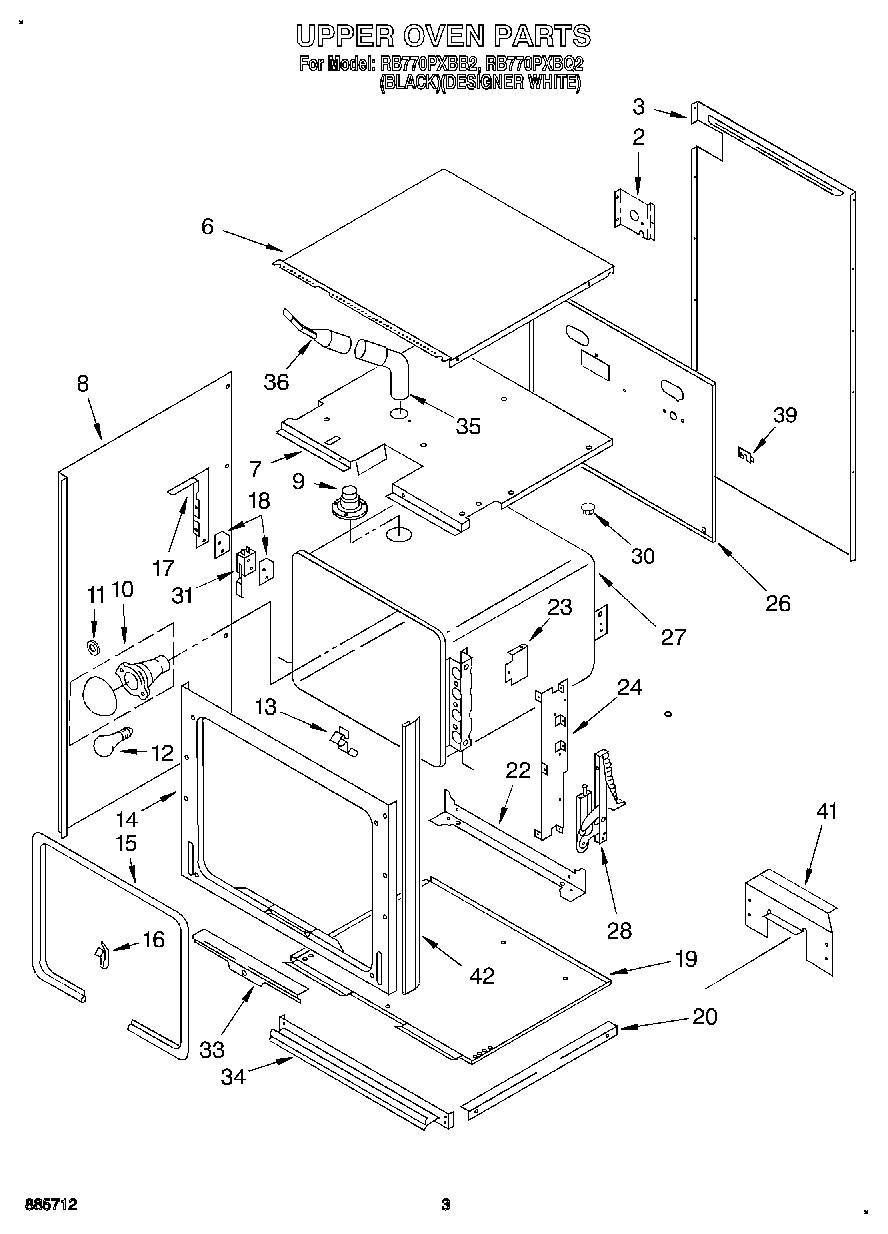

RB770PXBQ2 02 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Screw (2)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
30	Button, Plug
31	Nut (2)
31	Switch, Door
31	Screw (2)
33	Retainer, Seal
33	Vent, Lower Trim (Screw (2))
34	Vent, Middle Trim (Black Model)
34	Screw
34	Vent, Middle Trim (Screw (2))
34	Vent, Middle Trim (White Model)
35	Vent, Tube (Upper, Female)
36	Tube, Vent (Male)
36	Screw
39	Screw
39	Cover, Cap Tube
41	WP3177991 Whirlpool Screw
41	WPL 3183752
42	Side Trim, Door (2) (White Model)
42	Insulation, Back
42	Trim, Door Side (2) (Black Model)
42	Insulation, Oven
